PreLine-Plus Pre-Filter & Provent Catch Can Combo Kit for Prado 150 Series 2009-2015 PLPV620DPC
Write a review

PreLine-Plus Pre-Filter & Provent Catch Can Combo Kit for Prado 150 Series 2009-2015 PLPV620DPC

SKU: PLPV620DPC

Write a review

group_id: 1
RRP $840.40

$839.30
Price Match
Product Enquiry
Description

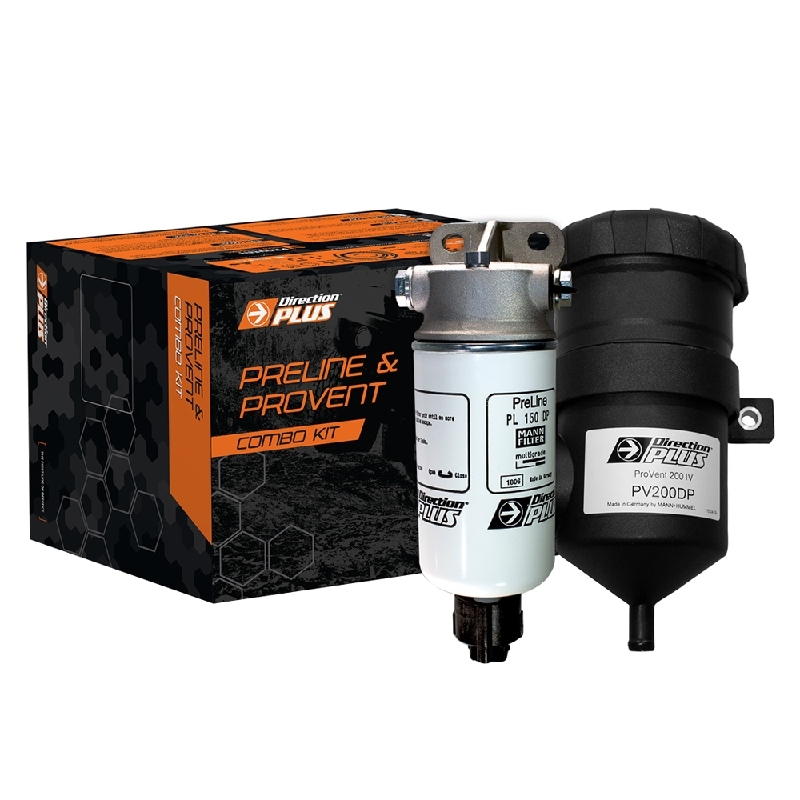

 PreLine-Plus Pre-Filter & Provent Catch Can Combo Kit for Toyota Prado 150 Series



For the ultimate first-line defence against water and particle contamination, a Direction-Plus™ PreLine-Plus system will protect your investment day-in-day-out and on-road or off-road. PreLine-Plus offers a water separation efficiency of 100% (based on 300um droplet size). It has a long service life and does not only meet the specifications set by leading manufacturers of diesel fuel injection systems, but it also exceeds them. PreLine-Plus provides protection for late-model common rail diesel engines against costly injector failure and suits all modern diesel high-pressure injection systems. It guards fuel systems against corrosion, and abrasion and minimises repairs.

Designed specifically to cope with extreme weather conditions and poor fuel quality, which unfortunately is common, Direction-Plus™ PreLine-Plus is the perfect choice for drivers in Australia. It's an innovative pre-filter system for diesel fuel systems and ensures the highest degree of water separation and particle pre-separation available. The PreLine-Plus kits include an intuitive multi-stage water alert that separates them from other kits on the market. The system is tailored to the most modern diesel direct injection systems for diesel engines.



How the Alarm works:

  • 1st stage: 1-hour duration, 10 min beep interval, slow led indicator pulse. Flashes and beeps 3 times.
  • 2nd stage: 30-min duration, 30 sec. beep interval, medium led indicator pulse. Flashes and beeps 6 times.
  • 3rd stage: 30-min duration, 30 sec. beep interval, fast led indicator pulse. Flashes and beeps 9 times.
  • 4th stage: 30-min duration, 30 sec. beep interval, rapid led indicator pulse. Flashes and beeps 15 times.
  • 5th stage: Constant, 5-sec beep interval, harsh led indicator pulse. Flashes and beeps continuously until water is removed and the water sensor resets.


Features & Benefits of Fitting a PreLine-Plus Pre-Filter Kit:

  • Intuitive multi-stage water alert system (visual and audible)
  • 100% water separation efficiency (based on 300um droplet size)
  • 98% particle separation (based on 30micron particles)
  • Reliable protection from corrosion and abrasion
  • No need to visually check for water included alarm
  • A simple spin on style filter
  • Increases the reliability of your Diesel Vehicle



Additionally, the ProVent oil separator protects your diesel engine by minimizing the quantity of oil entering the engine via the crankcase ventilation system's blow-by-gas. By not fitting a Direction-Plus™ ProVent system, it is likely that your engine will experience a progressive reduction in performance. Direction-Plus™ ProVent system is specifically designed to separate and redirect oil and air from crankcase blow-by gas while also providing the option of returning the oil to the sump.



Why Do You Need a Catch Can Kit?

Protection against costly repairs and poor performance!

The blow-by-gas problem is compounded by modern engines fitted with exhaust gas recirculation systems (EGR) whereby a proportion of the exhaust gas is routed back into the engine. With the presence of oil from the crankcase ventilation system, the oil collects exhaust particles. This combination of oil & exhaust particles from the EGR builds up to a point where it blocks inlet manifolds and valves, resulting in reduced engine performance or failure. The images attached are typical examples of the build-up in engines not fitted with a suitable vehicle-specific catch can.



Direction Plus ProVent benefits:

  • Prevent oil and soot contamination from entering the clean air intake
  • Excellent protection for turbocharger
  • Minimises oil consumption*
  • Prevent oil build-up in intercoolers
  • Regulates crankcase pressure
  • Keeps critical engine components clean
  • Reduces exhaust smoke and odours
  • Save you money



100% satisfaction guarantee!



Suitable for:

MAKE & MODEL SERIES/VARIANT
Toyota Prado  150 series 1KD-FTV 3.0L 4cyl (2009 - 2015)



VIEW INSTALLATION GUIDE



PICK UP & PHONE ENQUIRIES WELCOME



Despatched within 24-48 hrs of payment being received

Specifications
KEY SPECIFICATIONS
SKU PLPV620DPC
Brand Direction Plus
Shipping Weight 5.000000kg
Shipping Width 0.270m
Shipping Height 0.160m
Shipping Length 0.370m
PACKAGE CONTENT

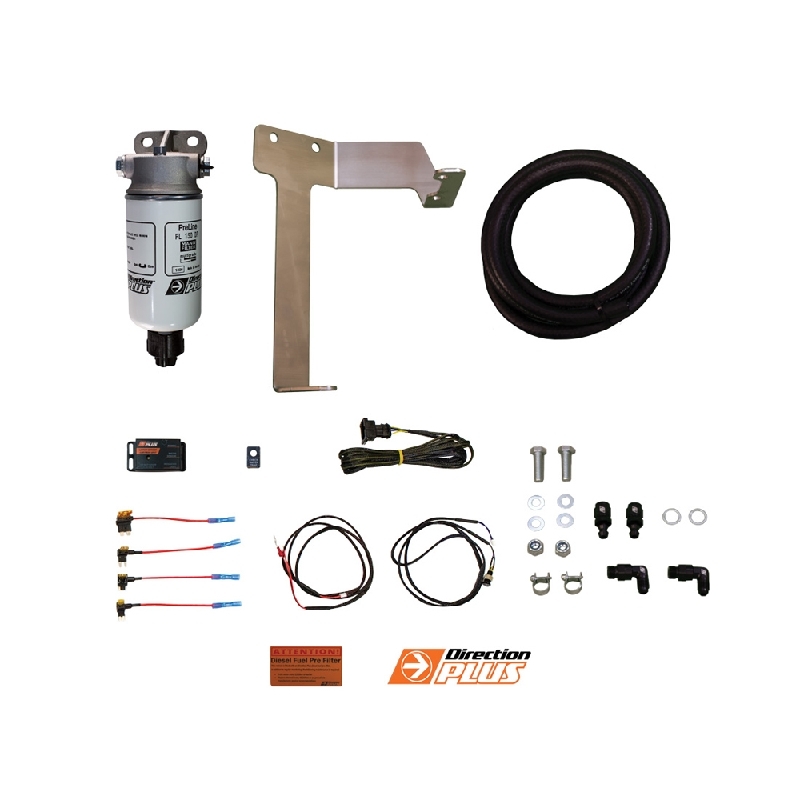

PreLine Plus Pre-Filter Kit Contents:

  • 2x M16 90° Swivil – 10mm
  • 2 Bolts, 2 Nuts, 4 Washers – 10mm
  • 1x M6 x 25 Bolt
  • 2x M6 Flat Washer
  • 1x M6 Nyloc Nut
  • 1x Bracket
  • 1x DFL10 - Fuel Line Rubber (10mm)
  • 1x Water Alarm Kit
  • 2x M16 Flat Washer
  • 1x Engine Bay Label
  • 1x PL150DP + Water Sensor
  • 2x Hose Clamp - 10mm
  • 2x Push on Straight - 10mm
  • 1x Windscreen Label

*Kit contents are subject to change based on component availability and/or refinement

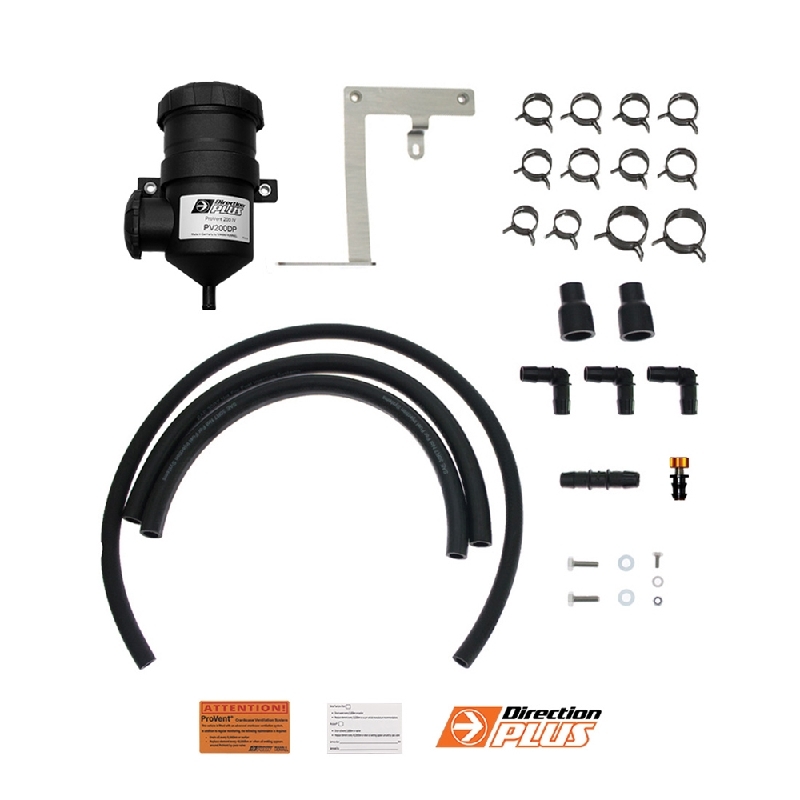

ProVent Oil Kit Contents:

  • 1 x Mann + Hummel ProVent® 200
  • 1 x Mounting Bracket
  • 1 x 550mm of 16mm Hose
  • 1 x 600mm of 16mm Hose
  • 1 x 16mm Straight Joiner
  • 3 x 16mm 90˚Joiners
  • 8 x 25mm Spring Clamps
  • 2 x 32mm Spring Clamps
  • 2 x 16mm to 25mm Hose Coupler
  • 8 x Cable Ties
  • 1 x M6x12 Bolt
  • 1x M6 Spring Washer
  • 1 x M8 Nut
  • 1 x M8 Spring Washer
  • 2 x M8x25 Bolts
  • 2 x M8 Flat Washers
  • 2 x M8 Spring Washers
  • 1 x 1000mm of 12mm Hose
  • 1x Drain Tap Assembly
  • 2 x 12-20mm Hose Clamps

*Kit contents are subject to change based on component availability and/or refinement
