ATEM 110W 12V Flexible Solar Panel Mono Shingled Battery Charging Caravan

ATEM 110W 12V Flexible Solar Panel Mono Shingled Battery Charging Caravan

SKU: AP-FLES-SG110W

group_id: 1
RRP $196.95

$149.95
Description

ATEM 110W 12V Flexible Solar Panel Mono Shingled Battery Charging Caravan



Unlike fixed solar panels that are thick and rigid, flexible solar panels can be bent to a certain point. And ATEM POWER has taken a step further by integrating the newest shingled cell technology into its shingle flexible solar panels that are lightweight, versatile, aesthetically pleasing and more importantly, greater in output. This 110W shingle flexible solar panel avoids the use of ribbons, busbars, and soldering processes, the cells are cut into 5 or 6 strips and then joined together in parallel using electrically conductive adhesives (ECA). So there is nothing but more pure cells, and you’ll get 15~20% more output than a traditional solar panel with significantly lower energy losses and no hot spot effect. The subversive ETFE tech is also integrated into this shingle flexible solar panel for a higher light penetration rate. This IP-68 rated shingled solar panel features 2mm thin lamination and lightweight design so you can secure it to curved surfaces with a minimalist and sleek aesthetic.

Features

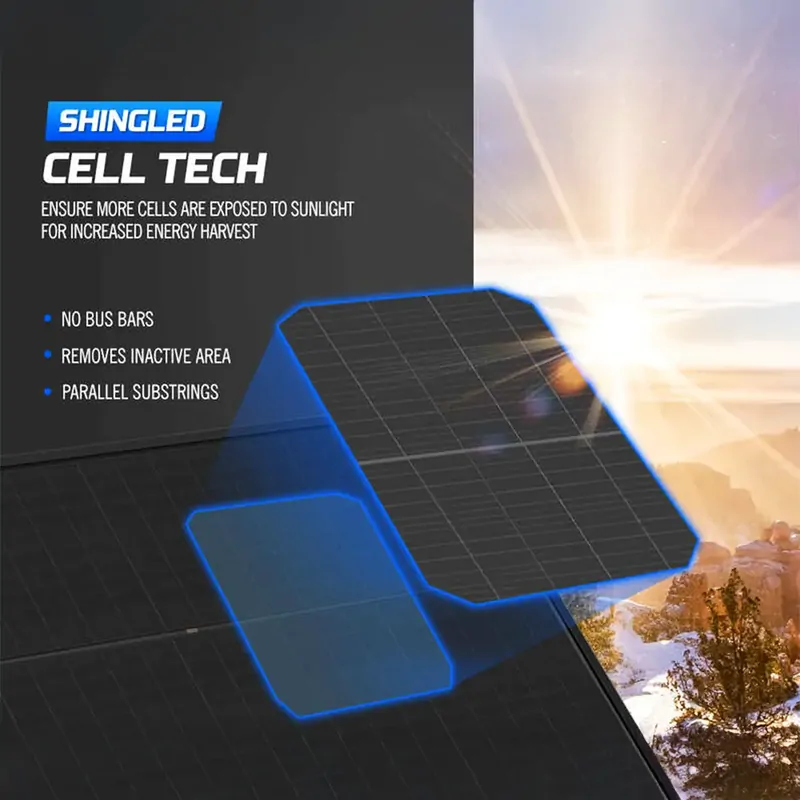

  • Shingled Cell Tech: This tech avoids the use of ribbons, busbars but creates a string of strips, so more cells are exposed to sunlight for increased energy harvest.
  • Improved Reliability: Shingled solar panel is more resistant to failure caused by external forces applied to the panel when compared to conventional solar panels.

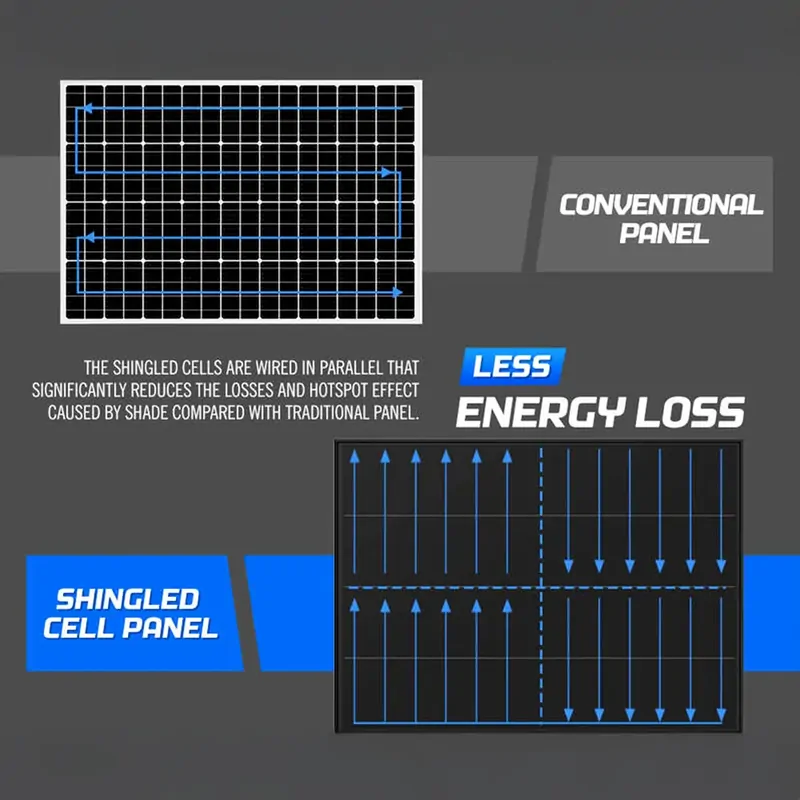

  • Less Energy Loss: The shingled cells are wired in parallel that significantly reduces the losses and hotspot effect caused by shade compared with traditional panel.

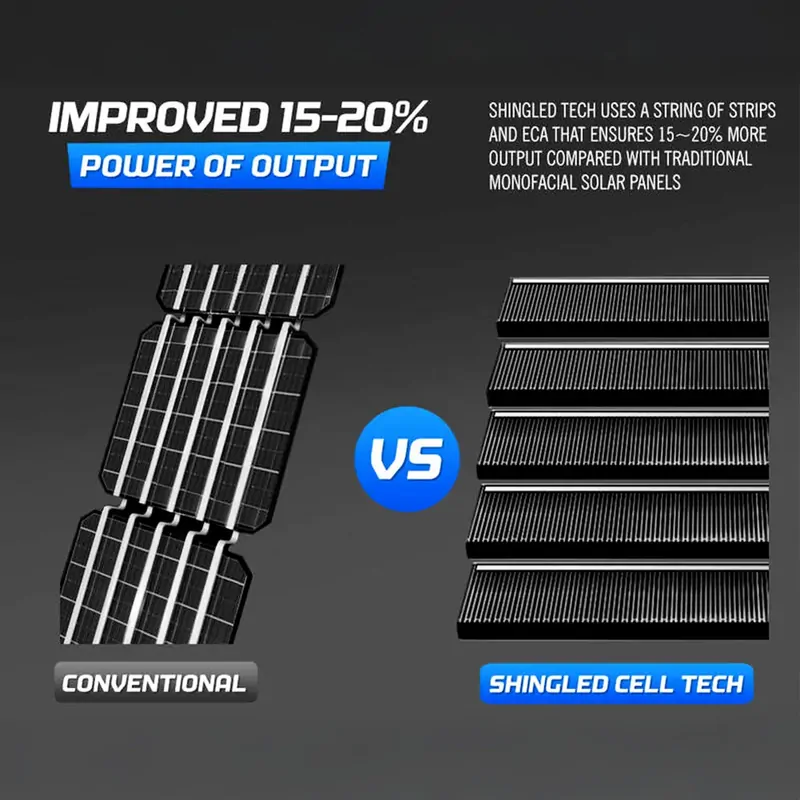

  • Higher Output: Joined together by using electrically conductive adhesive (ECA) instead of busbars, you’ll get improved 15~20% output than traditional panel.

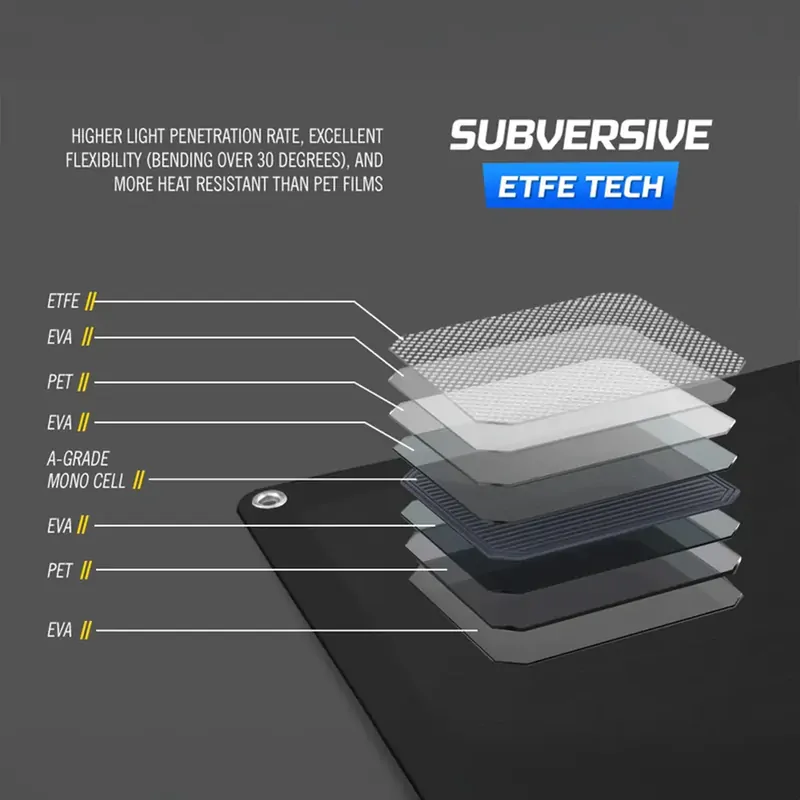

  • Subversive ETFE Tech: Higher light penetration rate, excellent flexibility (bending over 30 degrees), and more heat resistant than PET films.

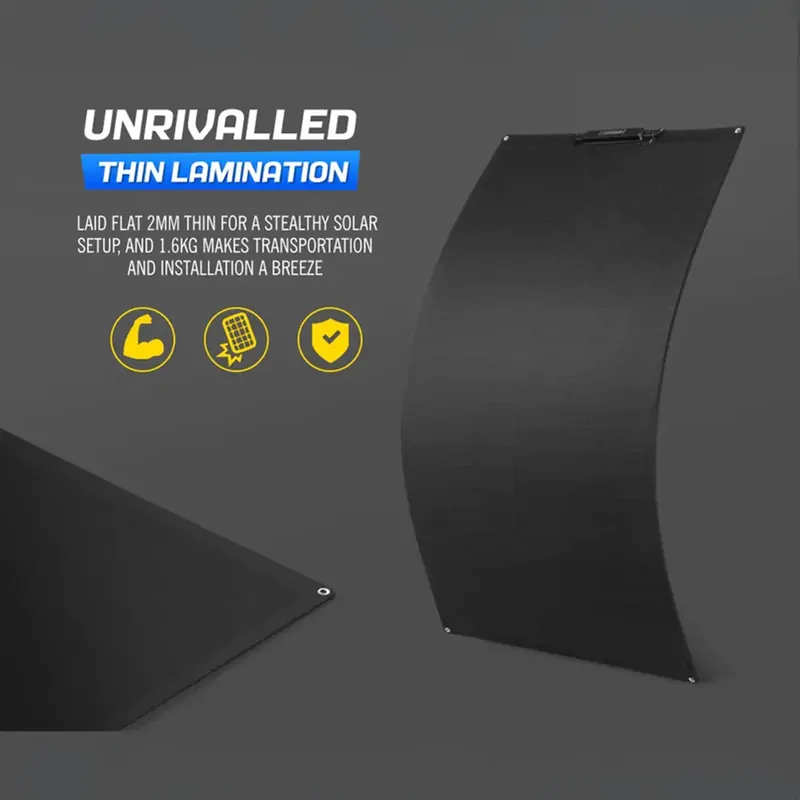

  • Unrivalled Thin Lamination: Laid flat 2mm thin for a stealthy solar setup, and 1.6kg makes transportation and installation a breeze.
  • All Weatherproof: This shingled panel has an IP68 waterproof rating, so no worries about the rainy days. It will be with you to keep your electronics running.

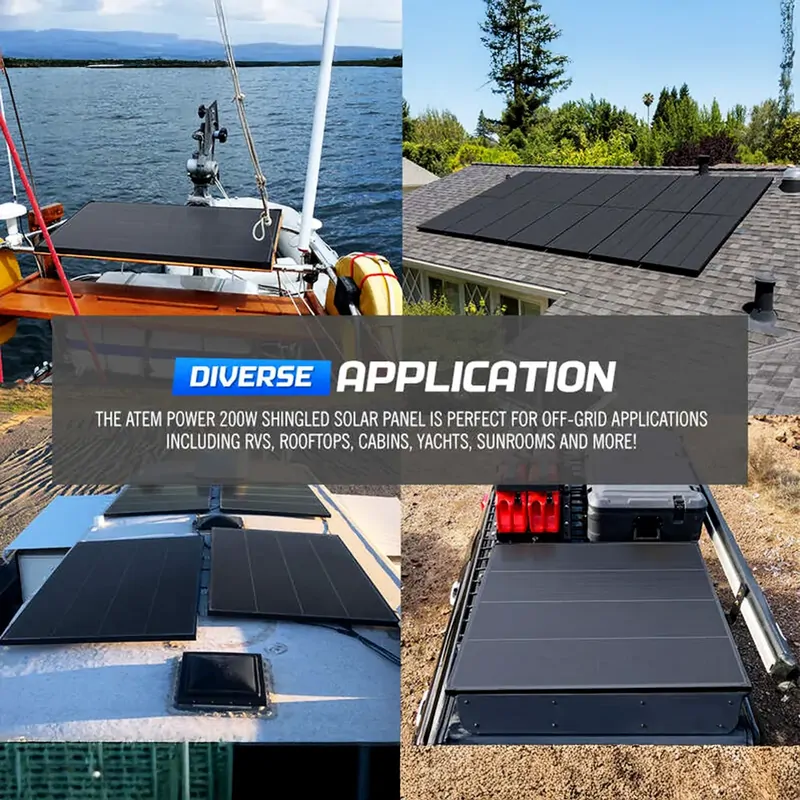

  • Highly Compatible: Compatible with lithium-ion, LiFePO4, lead acid, AGM, GEL, Flooded batteries and perfect for 4WD, ute, caravan, camper trailer and boat.
  • More Aesthetic: This 110W shingled solar panels has no visible circuitry which gives it clean, simple and sleek look while providing superior appeal.
  • Easy to Secure: Installation with adhesives and/or 4 metal reinforced mounting holes at each corner

For shipping price or for installation of a dual battery system, please our contact customer service team.



PICK UP & PHONE ENQUIRIES WELCOME


Specifications
Material: Shingled Cells
Maximum Power: 110W
Open-Circuit Voltage (VOC): 22.36V
Short-Circuit Current (ISC): 6.25A
Maximum Power Voltage (VMP): 18.64V
Maximum Power Current (IMP): 5.9A
Maximum System Voltage: 100V
Temperature Range: -20°C~ 65°C
Power Tolerance: ± 3%
Product Size: 117x47x0.2cm
Package Size: 120x49.5x4cm
Gross Weight: 3.34kg
KEY SPECIFICATIONS
SKU AP-FLES-SG110W
Brand ATEM POWER
Shipping Weight 3.340000kg
Shipping Width 0.495m
Shipping Height 0.040m
Shipping Length 1.200m
Shipping Cubic 0.023760000m3
Unit Of Measure ea
Assembled Length 1.170m
Assembled Height 0.020m
Assembled Width 0.470m
PACKAGE CONTENT
  • 1 x ATEM POWER 110W Shingle Flexible Solar Panel
