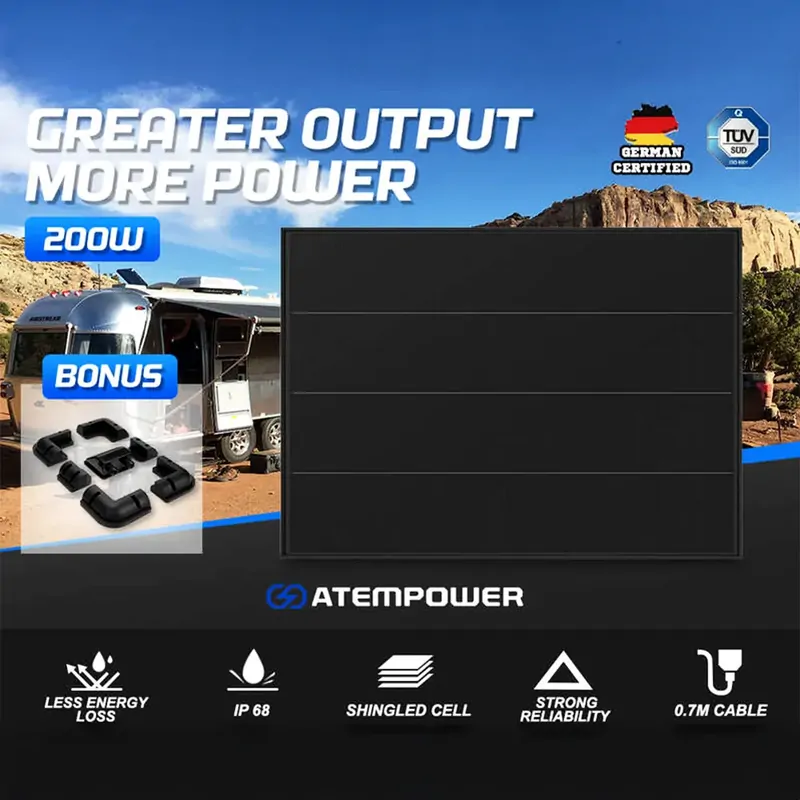

Atem Power 12V 200W Bifacial Shingled Solar Panel Kit + Solar Mounting Brackets

Atem Power 12V 200W Bifacial Shingled Solar Panel Kit + Solar Mounting Brackets

SKU: AP-FISED-DS200W-AP-MB7PCS

RRP $321.95

NOW $215.96

Was $239.95

Sale Ends in
23:59 pm, 2 December 2024
Description

Atem Power 12V 200W Bifacial Shingled Solar Panel Kit + Solar Mounting Brackets



If you want solar panels that deliver higher energy yields, look no further than our shingled bifacial solar panels! They capture sunlight from both sides, providing 15% more energy compared to monofacial panels. Shingle technology also elevates efficiency, generating more power even in low-light conditions. Thanks to its ability to capture sunlight from both sides and the incorporation of PERC and bypass diodes, this 200W bifacial solar panel maximizes energy output on cloudy days and performs exceptionally on snowy days. The back side is always available, ensuring a continuous supply of solar power for your off-grid life. And that's not all – the shingled technology boosts output by 15~20% compared to traditional solar panels. Wired in parallel, these shingled solar panels significantly reduce losses and eliminating the hot spot effect caused by shade. On top of that, its IP-68 rating allows it to defy harsh conditions, while no visible circuitry gives it a sleek look.



Features:

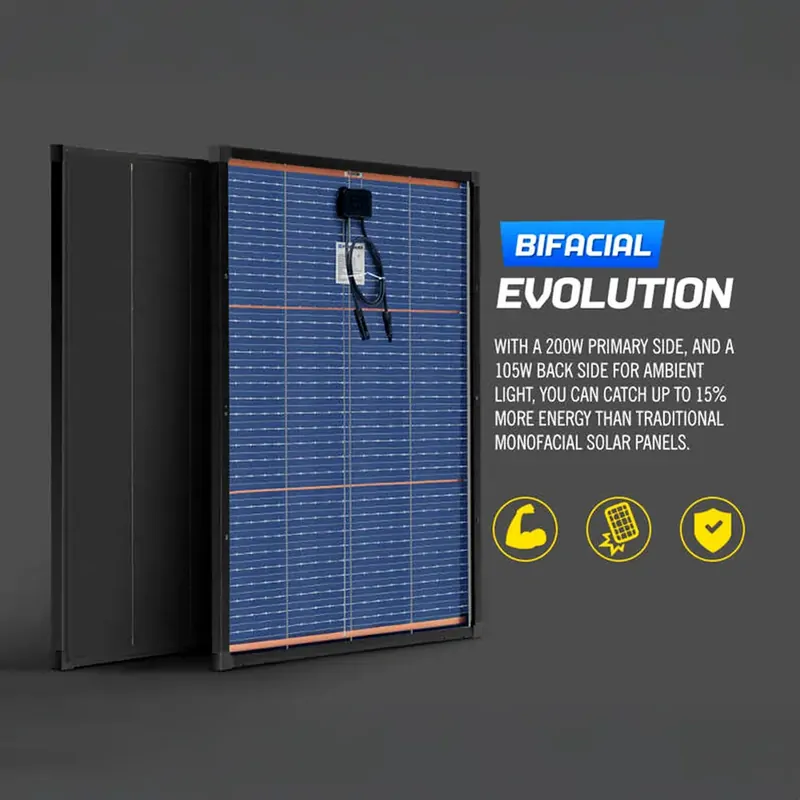

  • Bifacial Evolution: With a 200W primary side, and a 105W back side for ambient light, you can catch up to 15% more energy than traditional monofacial solar panels.

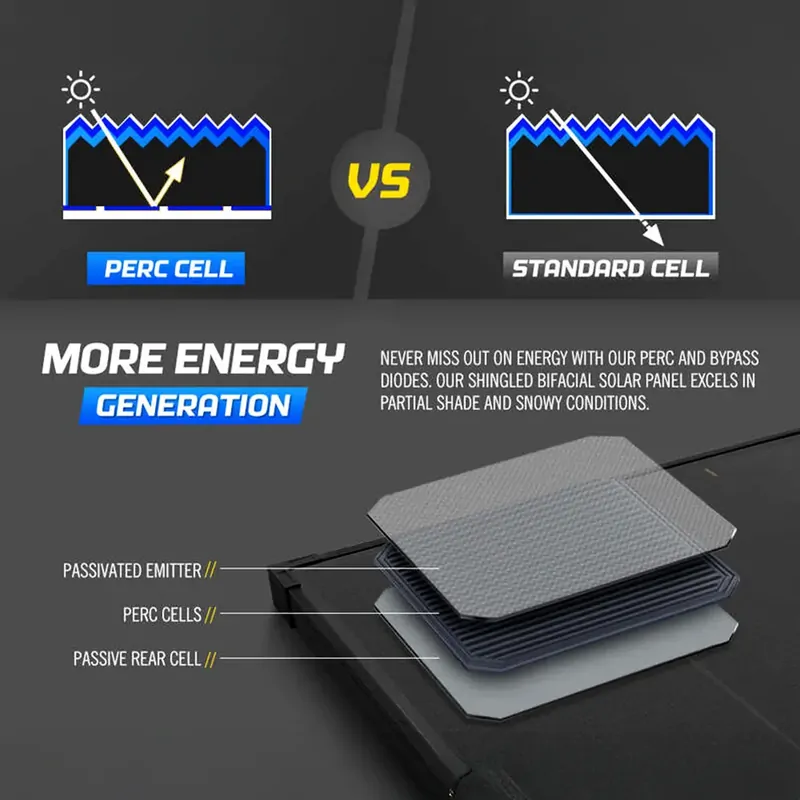

  • More Energy Generation: Never miss out on energy with our PERC and bypass diodes. Our shingled bifacial solar panel excels in partial shade and snowy conditions.

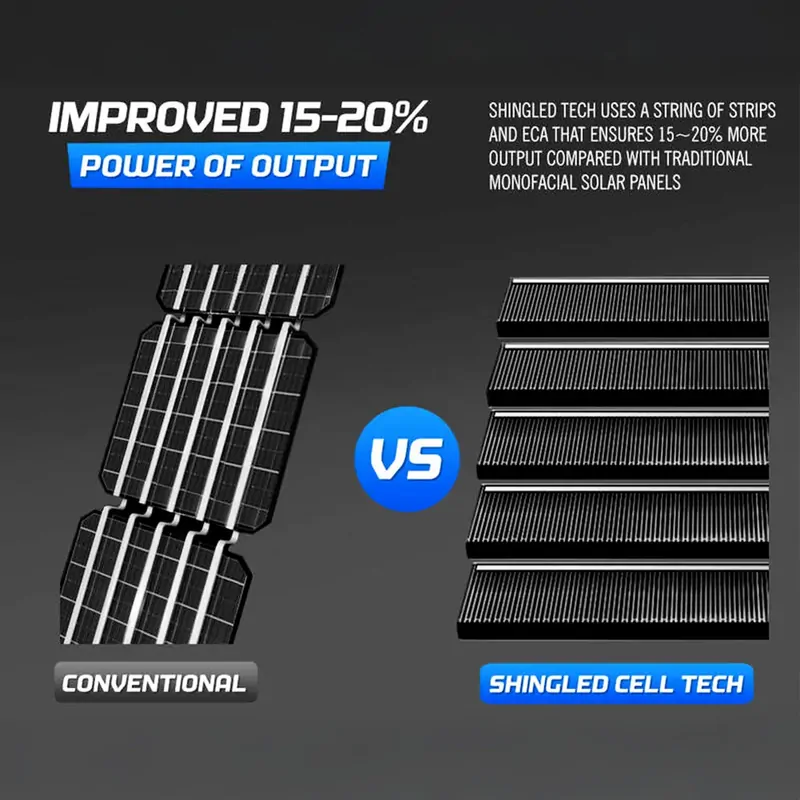

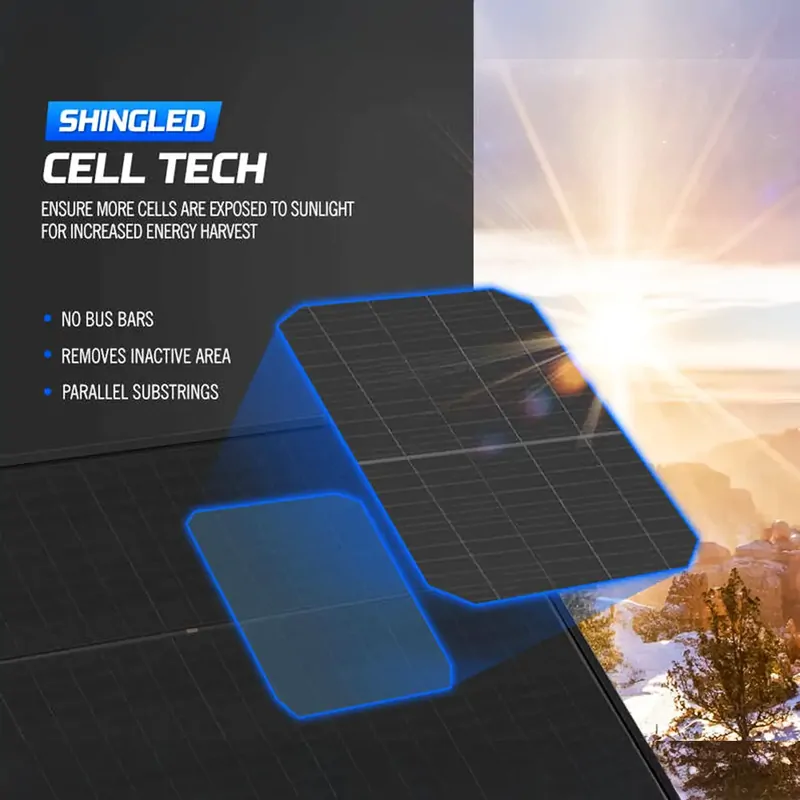

  • Shingled Cell Tech: Shingled tech uses a string of strips and ECA that ensures 15~20% more output compared with traditional monofacial solar panels

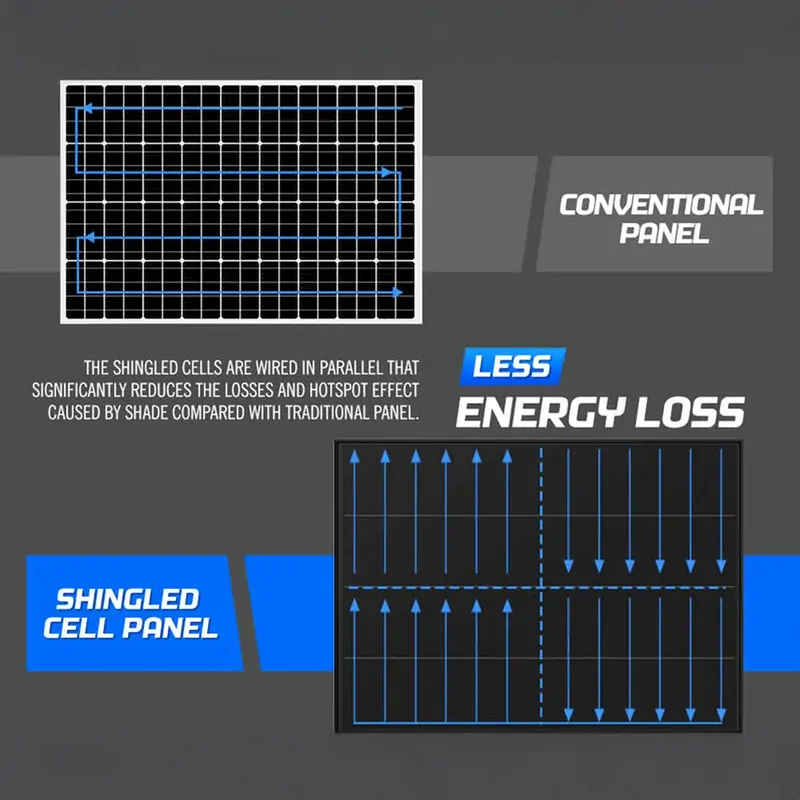

  • Less Energy Loss: The shingled cells are wired in parallel that significantly reduces the losses and hotspot effect caused by shade compared with traditional panel.
  • Unbeatable Rigidity: Aluminum frame and tempered glass ensure this shingled solar panel withstands wind loads of up to 2,400Pa and snow loads of up to 5,400Pa.
  • All Weatherproof: Rain or shine, our shingled bifacial solar panel's IP68 waterproof rating keeps your electronics running, worry-free.

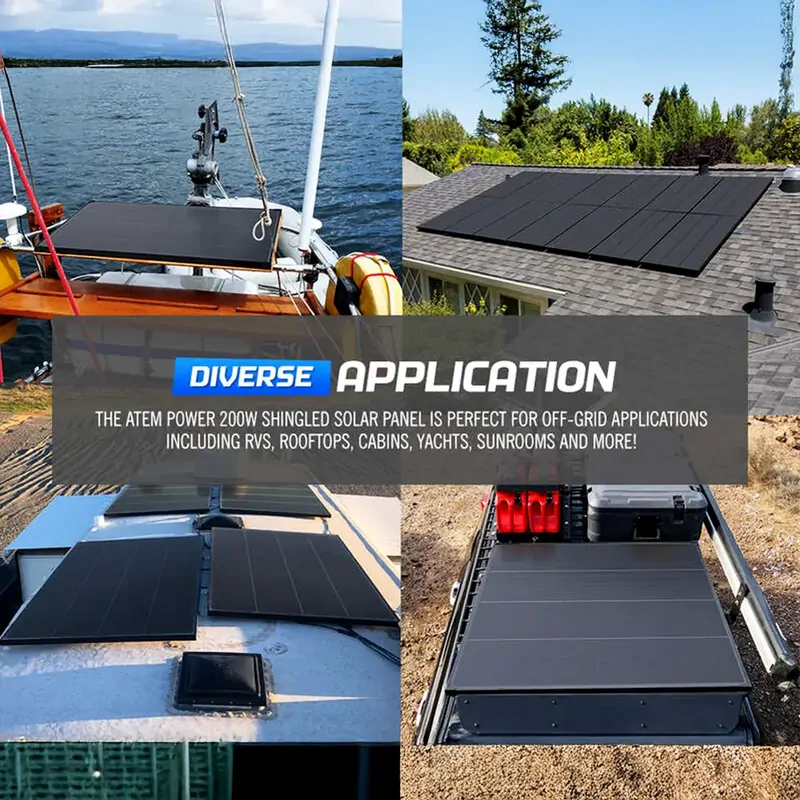

  • Diverse Application: The ATEM POWER 200W shingled solar panel is perfect for off-grid applications including RVs, rooftops, cabins, yachts, sunrooms and more!
  • More Aesthetic: Sleek and circuitry-free, our shingled bifacial solar panel adds a clean and stylish touch while delivering unmatched performance.



PICK UP & PHONE ENQUIRIES WELCOME

Specifications
200W Solar Panel
Material: Shingled Cells
Front Glass: Tempered Glass
Frame: Aluminum
Color: Black
Wire Size: 2.5mm2
Max Power at STC: 200W(Front)/105W(Rear)
Max. System Voltage: 500V
Open Circuit Voltage (VOC): 24.94V
Short Circuit Current (ISC): 9.54A(Front)/8.86A(Rear)
Max Power Voltage (VMP): 20.98V
Max Power Current (IMP): 9.54A
Power Tolerance: 0~3%
Output Tolerance: 0~3%
Module Efficiency: 22%
Bifaciality Coefficients: 52.5%
Operating Temperature: -40?~80?
Nominal Operating Cell Temerature (NOCT): 25?
IP Rating: IP-68
Wind Resistance: 2,400Pa
Snow Load: 5,400Pa
Certifications: CE/RoHS

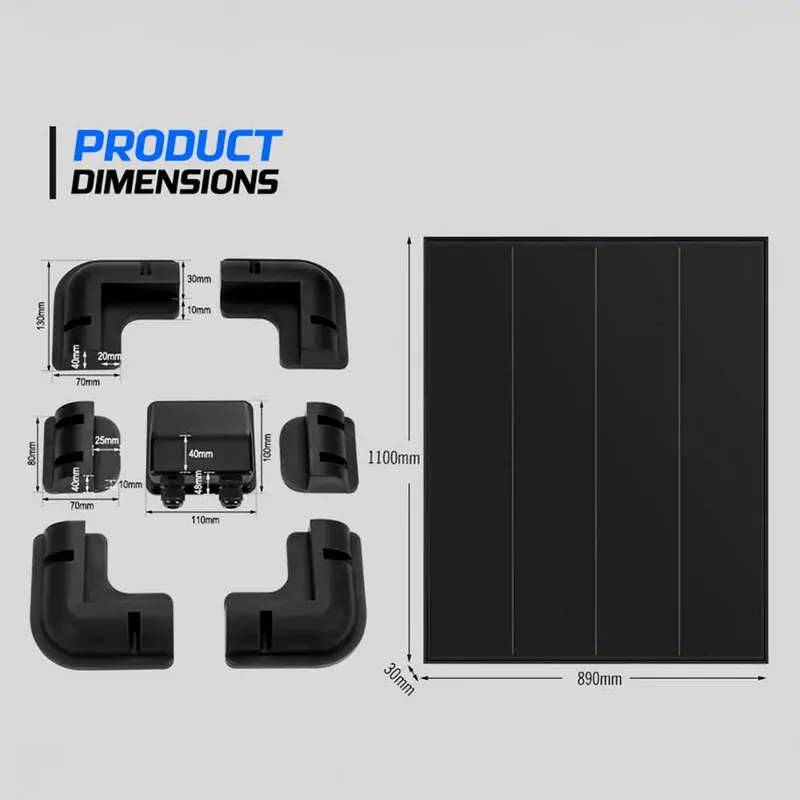

Package Size: 113 x 91 x 5.60 cm
Gross Weight: 12kg
Solar Panel Brackets
Material: ABS
Cable Entry Housing Waterproof Rating: IP65
Compatibility: 30W~200W Panels
Color: Black
Package Size: 21x13.5x14cm
Package Weight: 1.28kg
KEY SPECIFICATIONS
SKU AP-FISED-DS200W-AP-MB7PCS
Brand ATEM POWER
Shipping Weight 12.000000kg
Shipping Width 0.920m
Shipping Height 0.060m
Shipping Length 1.150m
Shipping Cubic 0.067449000m3
Unit Of Measure ea
Assembled Length 1.250m
Assembled Height 0.030m
Assembled Width 0.450m

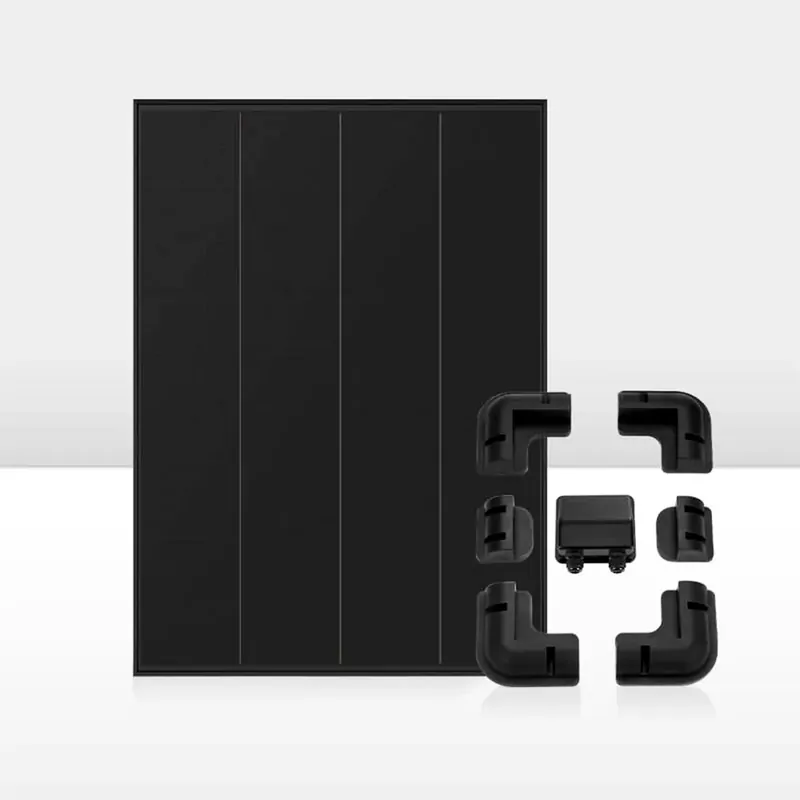

PACKAGE CONTENT
  • 1 x ATEM POWER 200W Shingled Bifacial Solar Panel
  • 4 x Corner Brackets
  • 2 x Side Brackets
  • 1 x Cable Entry Housing
  • 1 x User Manual For Solar Panel
