ATEM POWER 12V 20A DC to DC Battery Charger MPPT Dual Battery System

ATEM POWER 12V 20A DC to DC Battery Charger MPPT Dual Battery System

SKU: VABG007A

group_id: 1
RRP $509.00

$229.95
Description

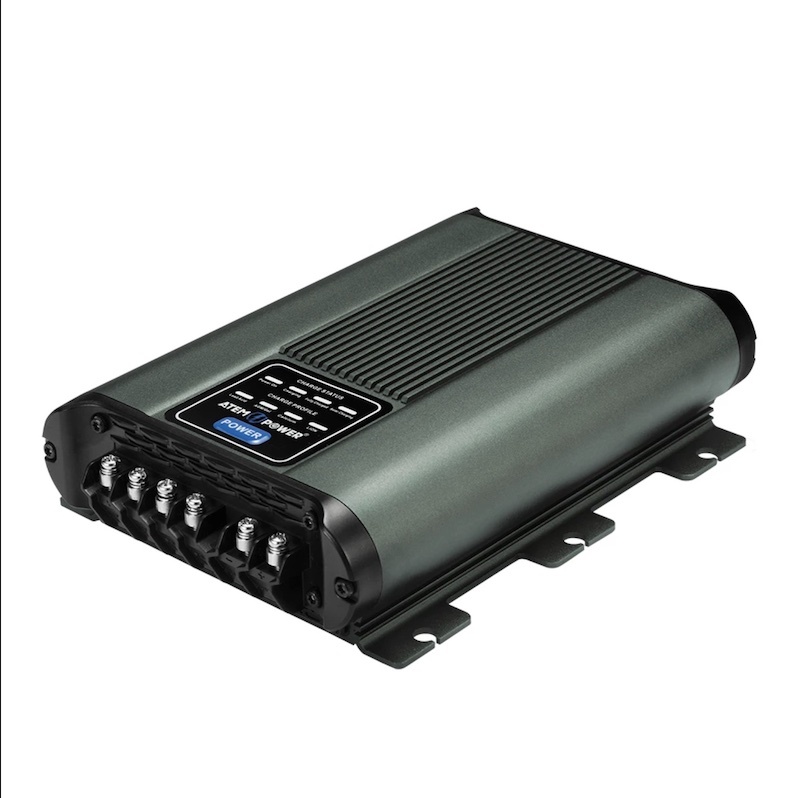

ATEM POWER 12V 20A DC to DC Battery Charger MPPT Dual Battery System


WARRANTY: 1 YEAR

The perfect addition to your vehicle if you don't have access to regular power and would like a dual battery set up. This ATEM POWER device which is designed to do a full charge cycle with the ability to choose between Lead Acid, AGM, Gel, Calcium, LiON batteries and apply the suitable charging profile to prolong their lifespan.  The device incorporates Reselection Ready mechanism which allows you to reselect the battery during charging by holding down the POWER button. It can be connected indefinitely when you're all set up.

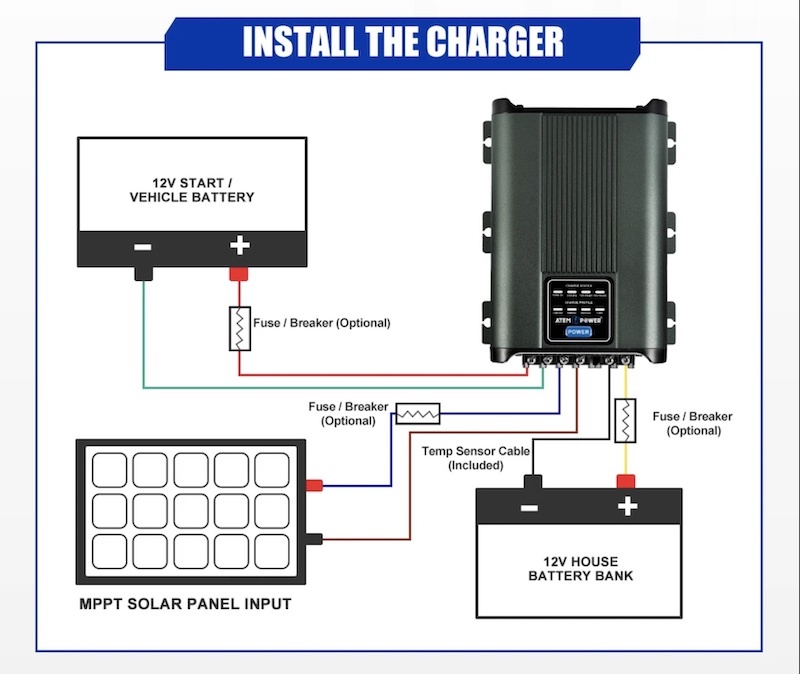

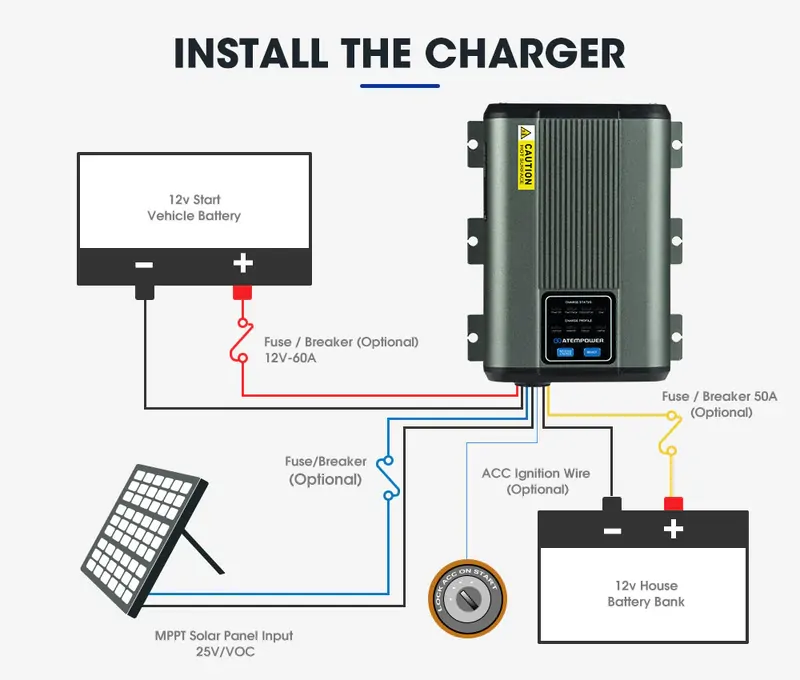

This ATEM POWER DC-DC charger is also a fully multi-input charger that is able to charge from an alternator to get the best possible rate of flow into your auxiliary battery and keep it up during the drive or via solar power with the built-in MPPT controller for faster charging and reducing the load on your engine.  Multiple protections are integrated to keep the batter safe.  Especially in the case of accidental terminal misconnection.

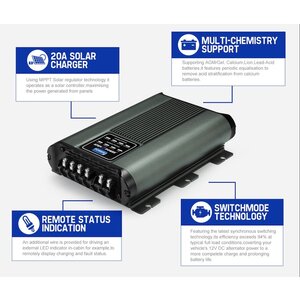

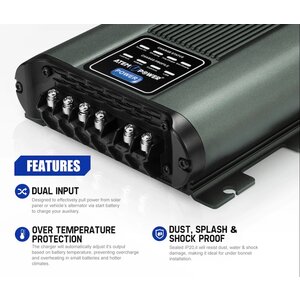

FEATURES:

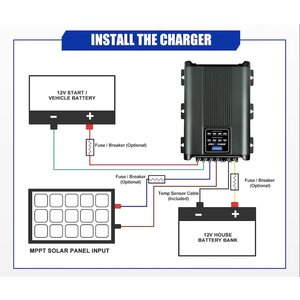

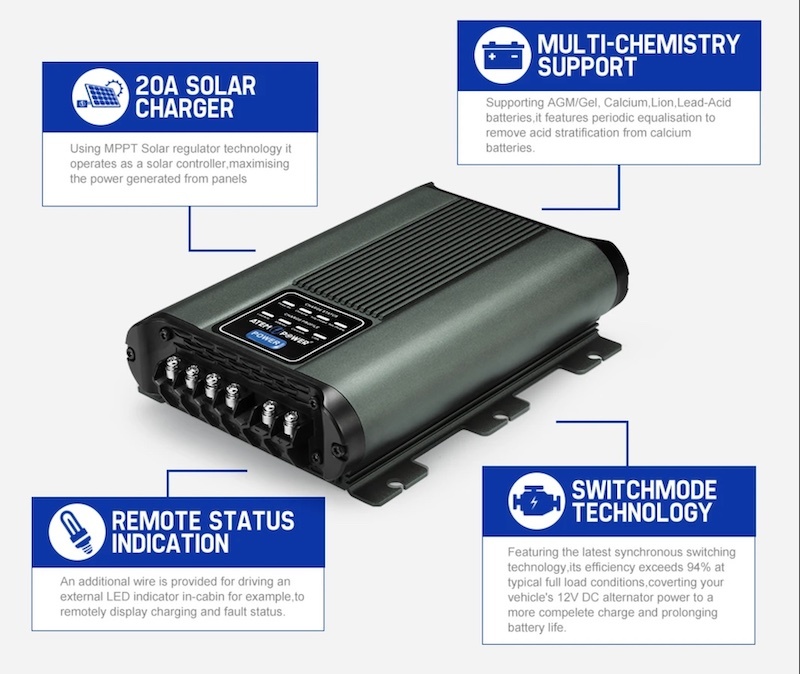

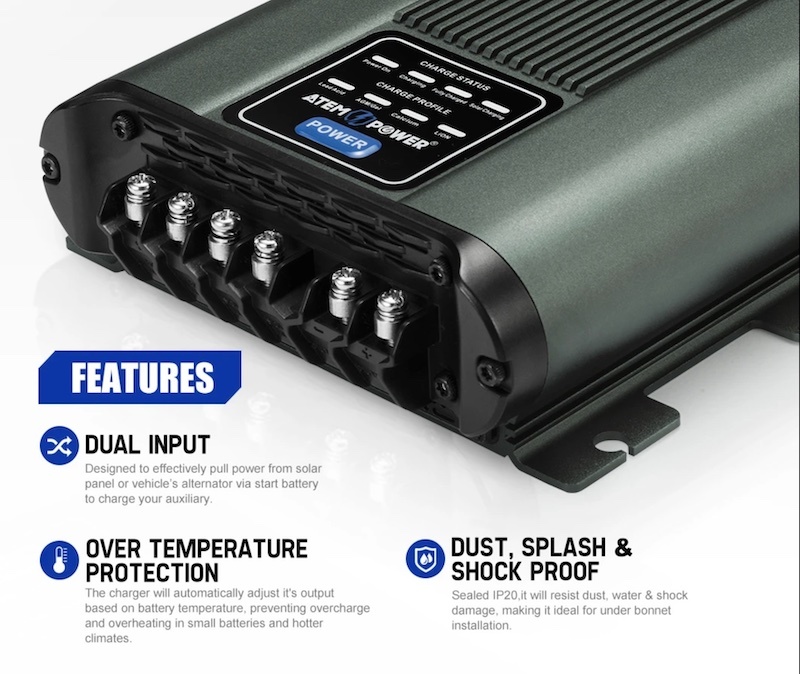

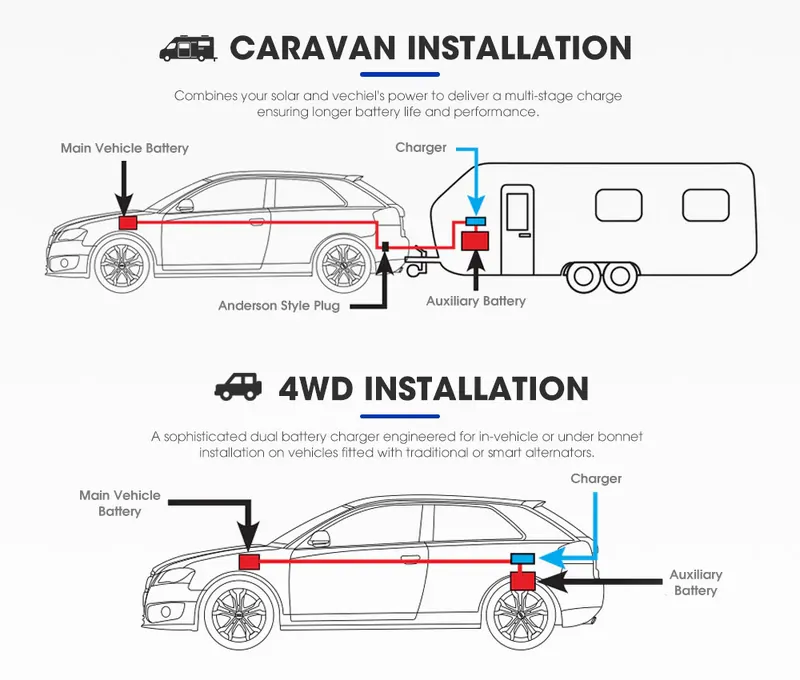

  • Dual input - Designed to effectively pull power from the solar panel (up to 20A) or the vehicles alternator to charge your auxiliary battery

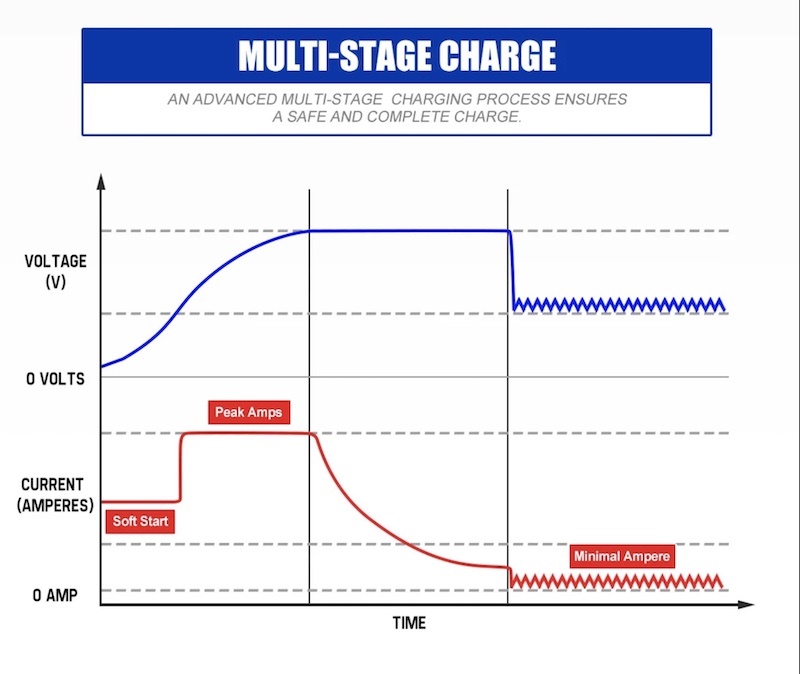

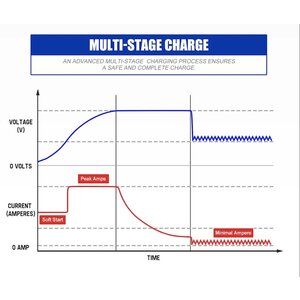

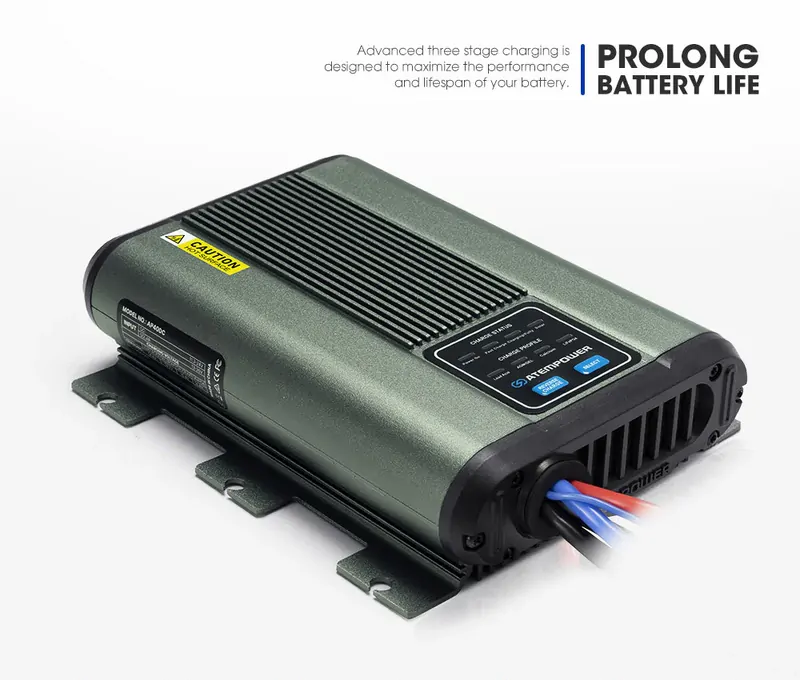

  • Multi-stage charging - This charger integrates standby, pre-charge, constant current charging, constant voltage charging, full charge and re-charge

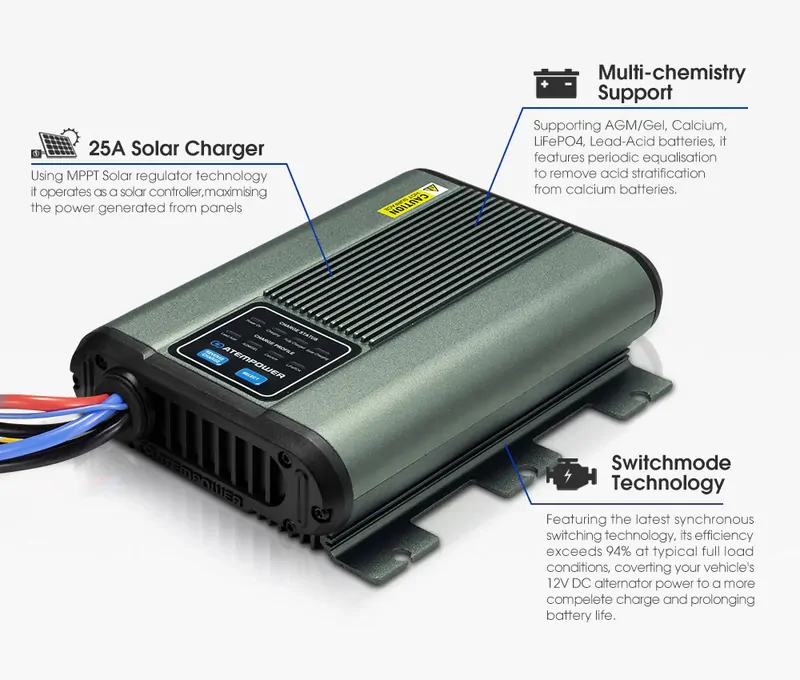

  • Built-In MPPT Regulator - The regulator is designed to harvest more energy from the solar panel, thus reducing the load on your engine

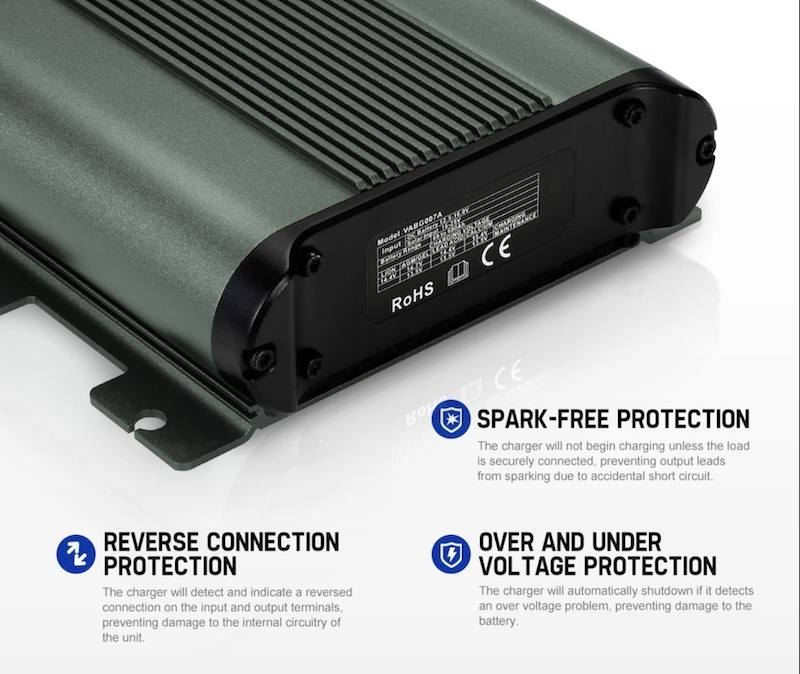

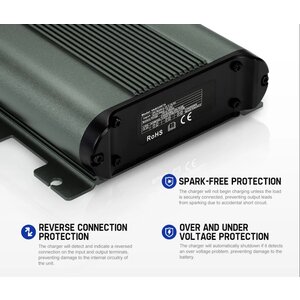

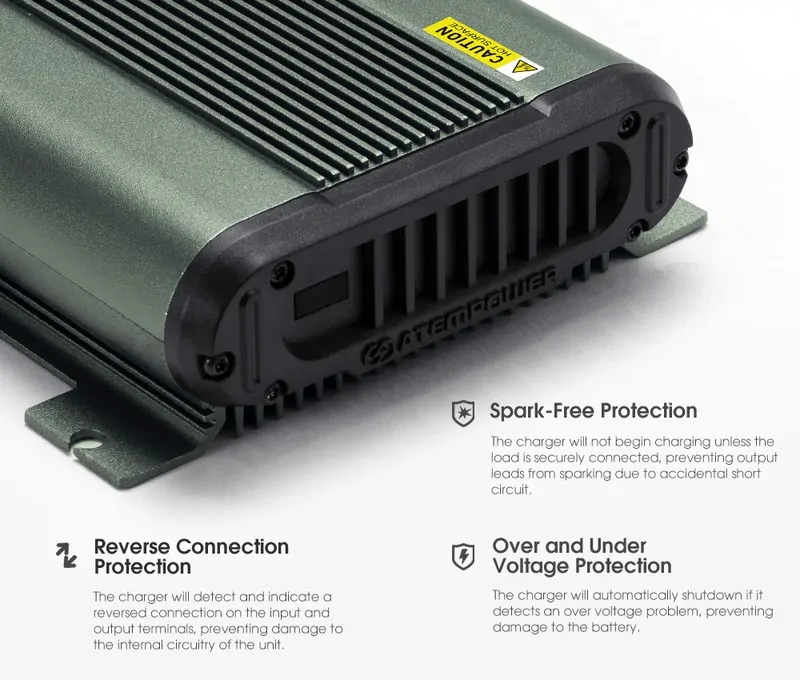

  • Multiple Protection - It integrates over-charge, short-circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection
  • Internal Temperature Monitoring - This mechanism can effectively protect the circuit board, thus prolonging the lifespan of the charger
  • Sturdy Construction - sturdy aluminium housing is built to resist harsh conditions and quality wires are built for long-lasting durability
  • Upgraded Charging Algorithm - This algorithm is designed to select the optimum charge mode and revive your discharged battery

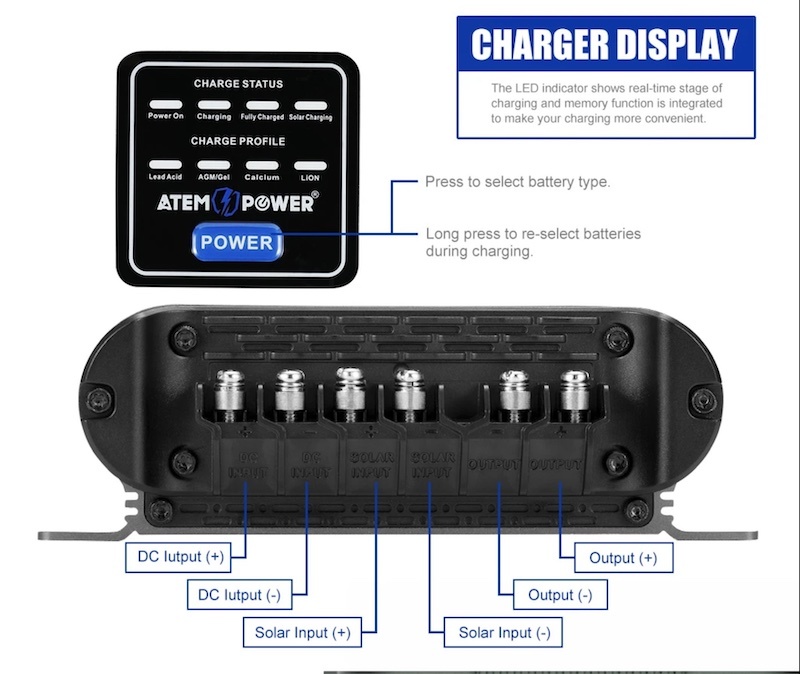

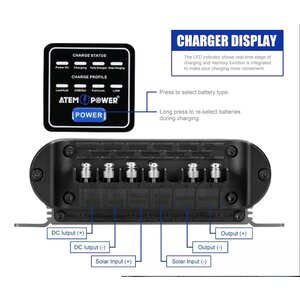

  • User-Friendly Design - The LED indicator shows the real-time stage of charging and memory function is integrated to make your charging more convenient.

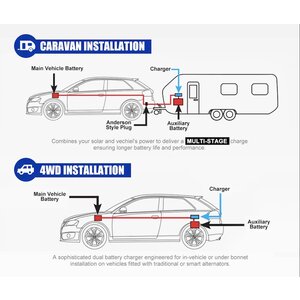

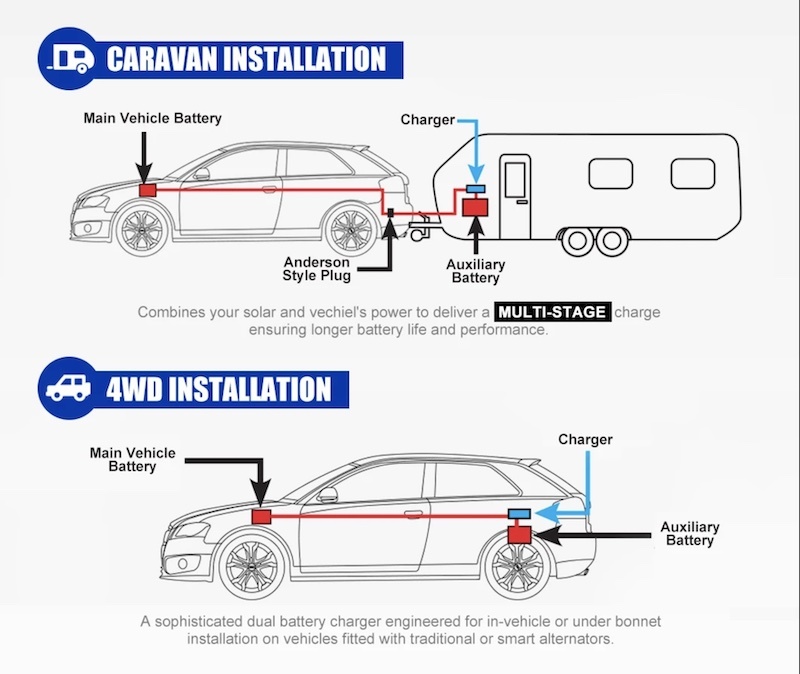

  • Super Versatile - This DC-DC charger is ideal for 4WD's, caravans, RV's, trucks, campers, trailers, campervans, commercial vehicles and boats



PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received


Specifications



Brand: ATEM POWER
Type Multi-Stage
DC Battery 12.5~16.0V
Solar Input 16.0-25.0V
Output/Charging Voltage 14.4~15.4 Volts. Stops charging when alternator output or vehicle batter below 12.5V
DC Output 20A
Solar Output Less than 40.5A
Max Start  Voltage 2.5V (for battery being charged)
Soft Start Yes
Soft Charge Current DCDS20@20A
Bulk Charge Voltage 14.7V(AGM/Gel) 14.4V(Lead/Acid) 15.4(Calcium) 14.4(LiON)
Absorption Constant voltage with automatic amperage control
Net Weight 27kg
Equalisation Automatic
Float Charge Voltage 13.5V(AGM/Gel) 13.5(Lead/Acid)  13.5(Calcium)
Float Charge Current 100mA
Battery Range 60-600Ah
0-1 Meters 12AWG
1-5 Meters 8AWG
5 Meters+ 6AWG





KEY SPECIFICATIONS
SKU VABG007A
Brand ATEM POWER
Shipping Weight 2.000000kg
Shipping Width 0.135m
Shipping Height 0.285m
Shipping Length 0.300m
Shipping Cubic 0.011543000m3
PACKAGE CONTENT

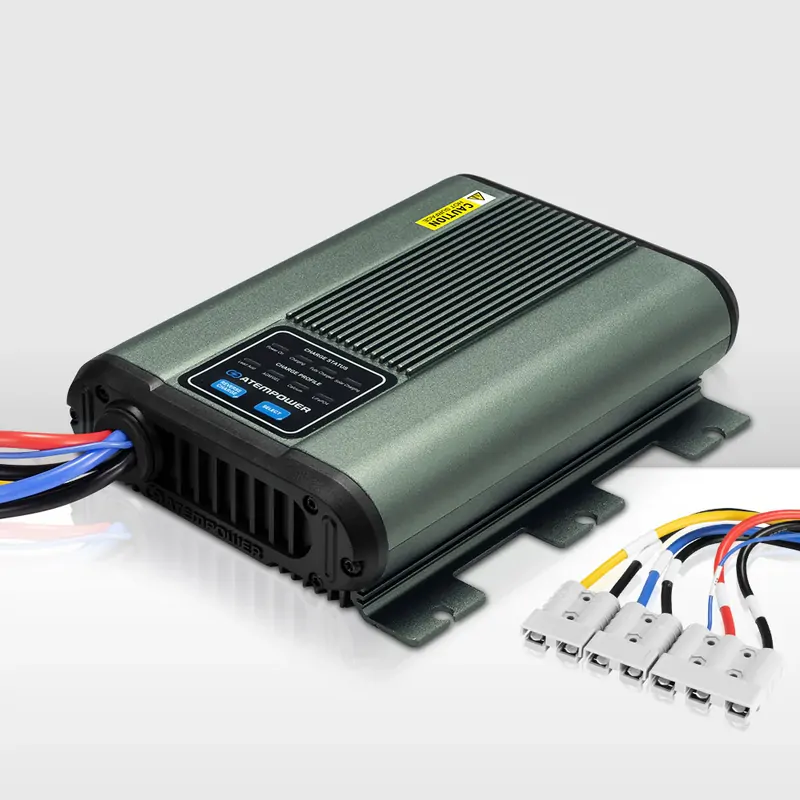

  • 1 x ATEM POWER 20A DC-DC Charger
  • 1 x Manual
