Fuel Manager Pre-Filter Kit For Toyota Landcruiser 200 series 2007-2020, 3-Battery Compatible, FM614DPK

Fuel Manager Pre-Filter Kit For Toyota Landcruiser 200 series 2007-2020, 3-Battery Compatible, FM614DPK

SKU: FM614DPK

group_id: 1
RRP $667.70

$620.40
Description

Direction PLUS Fuel Manager kit To Suit Toyota Landcruiser 200 series 2007-2020


Suits: 1VD-FTV engine

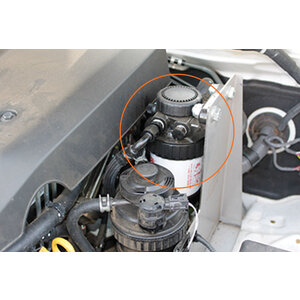

This kit suits a 3-Battery setup. The pre-filter is designed to fit upon the driver's side of the engine bay, closer to the windscreen.



Direction Plus™ Diesel Fuel Pre-Filter Kits protect late model common rail diesel engines against costly injector failure.

Unfortunately, diesel fuel is often contaminated with water and particles which over time, damages injectors and common rail diesel fuel systems. The problem is not exclusive to off-road driving. It happens day-in-day-out. It is estimated that 72% of diesel fuel injection system failures are due to water and fuel lubricity problems.


Direction Plus™ Fuel Manager Pre-Filter Kits provide protection for late model common rail diesel engines. Installing a Direction Plus Fuel Manager Pre-Filter Kit will save you against costly injector failure.  The kit goes between the fuel tank and the O.E.M fuel filter. It will remove the majority of water and particle contamination and leaves the O.E.M fuel filter to do the final and finer filtration. This ensures you’re getting the very best in protection for your diesel fuel system.  Why settle for contaminated fuel. Get the ultimate front line defence 24 hours a day, 7-days a week and 365 days a year by fitting a DirectionPlus™ Fuel Manager Pre-Filter Kit.



Features & Benefits of using a DIRECTION PLUS Diesel Fuel Pre-Filter Kit

  • Reduces wear & tear and helps you avoid repair costs which can often exceed $10,000

  • 95% water separation and superior particle contamination removal

  • Ability to separate emulsified water (water mixed with diesel) from Ultra Low Sulphur Diesel

  • Has a clear water drainage bowl to easily identify water removed

  • Does not have a filter bypass - i.e., contaminated fuel will not be sent to the fuel system even if the filter becomes blocked

  • Kits can be installed in under 1 hour

  • Increases the reliability of your Diesel Vehicle




WHY INSTALLING A PRE-FILTER KIT IS IMPORTANT?

Ultra-Low Sulphur Diesel (ULSD) is susceptible to water emulsification, i.e., water molecules suspended in diesel which is harder to remove than in traditional diesel fuel. This is why old technology like sedimenters work relatively well removing whole water but struggle with emulsified water, which is the contaminant you can’t see. The Direction Plus Fuel Manager Pre-Filter kit handles extreme weather conditions and poor fuel quality by removing water and other contaminants from Ultra Low Sulphur Diesel.



SOME SIGNS OF WATER AND / OR PARTICLE CONTAMINATION IN YOUR VEHICLE FUEL SYSTEM:

  • Blows more smoke than it should
  • Loss of RPM / power
  • There’s a foul odour
  • Shudders and shakes at all speeds
  • Engine stops suddenly while driving / hard to start



Note: We recommend also installing a Direction Plus ProVent Oil Separator (also known as Catch Can Kit). This will protect your modern diesel engine by substantially reducing the amount of oil entering the engine from blow-by gas in the crankcase ventilation system.

** Available via a separate listing on this website. Click here for Catch Can listings.





100% satisfaction guarantee!




PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24-48 hrs of payment being received.



Specifications
KEY SPECIFICATIONS
SKU FM614DPK
Brand Direction Plus
Shipping Weight 3.000000kg
Shipping Width 0.270m
Shipping Height 0.160m
Shipping Length 0.370m
Shipping Cubic 0.016000000m3
PACKAGE CONTENT

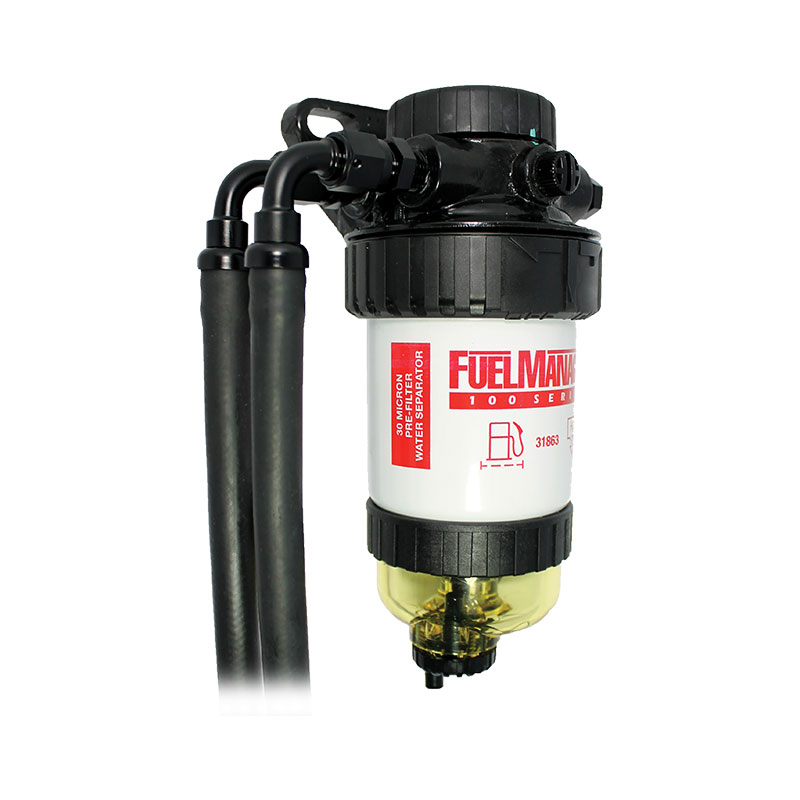

  • Filter assembly (including water bowl)
  • Model-specific laser cut stainless bracket
  • All hoses required for the application
  • Nuts, bolts, washers & clamps
  • Installation instructions
  • LED water sensor (optional)
  • Hand primer (optional)

*Contents may differ based on fitment application and component availability
