Fuel Manager Pre-Filter & Provent Catch Can Kit for Pajero Sport/Triton MQ MR 2015-23

Fuel Manager Pre-Filter & Provent Catch Can Kit for Pajero Sport/Triton MQ MR 2015-23

SKU: FMPV629DPC

group_id: 1
RRP $704.00

$665.00
Description

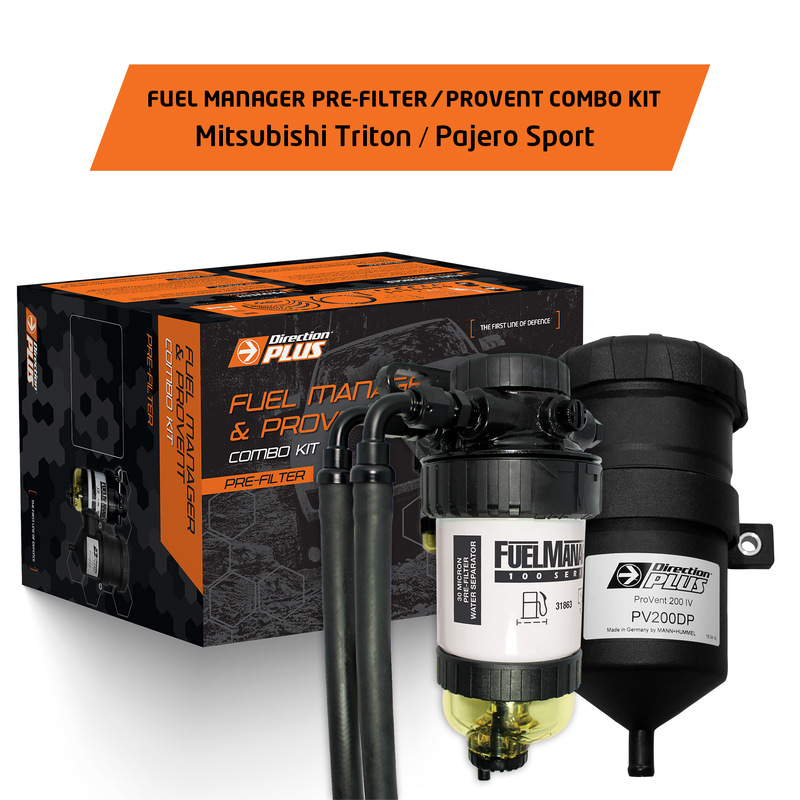

Direction-Plus™ Fuel Manager Pre-Filter and ProVent Ultimate Catch Can Combo Kit for Pajero Sport/Triton MQ MR 2015-On FMPV629DPC



Protect your diesel engine with Direction-Plus™ Fuel Manager Pre-filter + ProVent Ultimate Catch Can Combo Kit, preserving your diesel engine from water contamination, costly injector failure, carbon build-up, and reduced performance. With this dual kit, you can‘t go wrong!



How does a Fuel Manager Pre-Filter work?

Installing a Direction Plus™ Fuel Manager Pre-filter kit between the fuel tank and the O.E.M fuel filter, the Fuel Manager will remove the majority of water and particle contamination. This leaves the O.E.M. fuel filter to do the final and finer filtration. This ensures you are maximising the protection of your diesel fuel system.

For the ultimate front-line defence against water and particle contamination, investing in a DirectionPlus™ Fuel Manager Pre-Filter Kit will protect your investment 24 hours a day, 365 days a year.



Benefits of a Fuel Manager Pre-Filter Kit:

  • Reduce wear & tear and avoid repair costs that can exceed $10,000
  • 95% water separation and superior particle removal
  • Ability to separate emulsified water from ULSD
  • Clearwater drainage bowl to easily identify removed water
  • Keeps critical engine components clean
  • No filter bypass – i.e., contaminated fuel will not be sent to the fuel system even when the filter is blocked
  • Kits can be installed in under 1 hour
  • Increases the reliability of your Diesel Vehicle



Why is installing a Pre-Filter Kit Important?

Ultra-Low Sulphur Diesel (ULSD) is susceptible to water emulsification, i.e., water molecules suspended in diesel, which is harder to remove than in traditional diesel fuel. This is why old technology like sedimenters work relatively well removing whole water but struggle with emulsified water, which is the contaminant you can’t see. The Direction Plus Fuel Manager Pre-Filter kit handles extreme weather conditions and poor fuel quality by removing water and other contaminants from Ultra Low Sulphur Diesel.


Some Signs of Water and/or Particle Contamination in your Vehicle Fuel System:

  • Blows more smoke than it should
  • Loss of RPM/power
  • There’s a foul odour
  • Shudders and shakes at all speeds
  • Engine stops suddenly while driving / hard to start


Additionally, the Direction-Plus ProVent system separates and redirects oil and air from blow-by gas produced from within the crankcase, which also provides the option of returning the oil back to the sump. By not fitting a Direction-Plus ProVent Ultimate Catch Can system in your vehicle it is likely that your engine will experience a progressive reduction in performance.



Benefits of fitting a ProVent Ultimate Catch Can Kit:

  • Prevents oil and soot contamination from entering the clean air intake
  • Excellent protection for turbocharger
  • Minimises oil consumption*
  • Prevents oil buildup in intercoolers
  • Regulates crankcase pressure
  • Keeps critical engine components clean
  • Reduces exhaust smoke and odours
  • 98% oil separation efficiency
  • Saves you money



100% satisfaction guarantee!



Suitable for:

MAKE & MODEL SERIES/VARIANT
Mitsubishi Pajero Sport 4N15 2.4L 4cyl (2015 - 2021)
Mitsubishi Triton MQ MR 4N15 2.4L 4cyl (2015 - 2023)

Note: The Fuel Manager Kit IS NOT dual battery compatible.



VIEW INSTALLATION GUIDE



PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received

Specifications
KEY SPECIFICATIONS
SKU FMPV629DPC
Brand Direction Plus
Shipping Weight 5.000000kg
Shipping Width 0.270m
Shipping Height 0.160m
Shipping Length 0.370m
Shipping Cubic 0.016000000m3
PACKAGE CONTENT

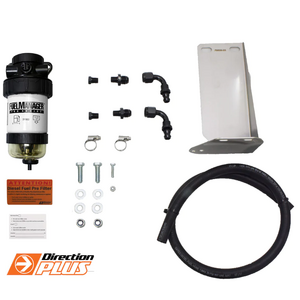

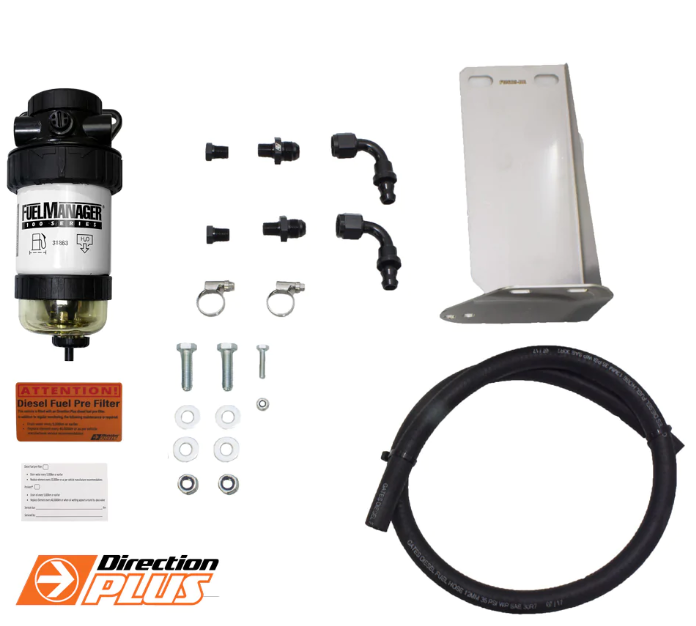

Fuel Manager Pre-Filter Kit Contents:

  • 2 x 16mm Straight Adaptors
  • 2 Bolts, 2 Nuts, 4 Washers
  • 1 x Bolt - 6 x 25mm Zinc
  • 1 x Bracket - Hilux 2.8
  • 1 x Cable Tie 280 x 4.8 (UV)
  • 1 x DFL10 - Fuel Line Rubber (10mm)
  • 2 x 16mm Plugs
  • 1x FM Engine Bay Label
  • 1x FM100 30 Micron Filter Assy
  • 2x Hose Clamp - 10mm
  • 1x Loctite 567 Thread Sealant - 6mL
  • 1x Nut - Nyloc 6mm
  • 2x Push On 90 Deg - 10mm
  • 1x Windscreen Label

*Kit contents are subject to change based on component availability and/or refinement

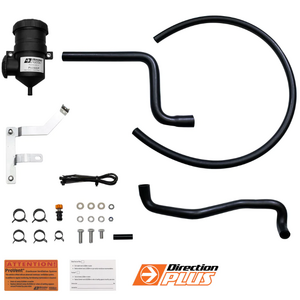

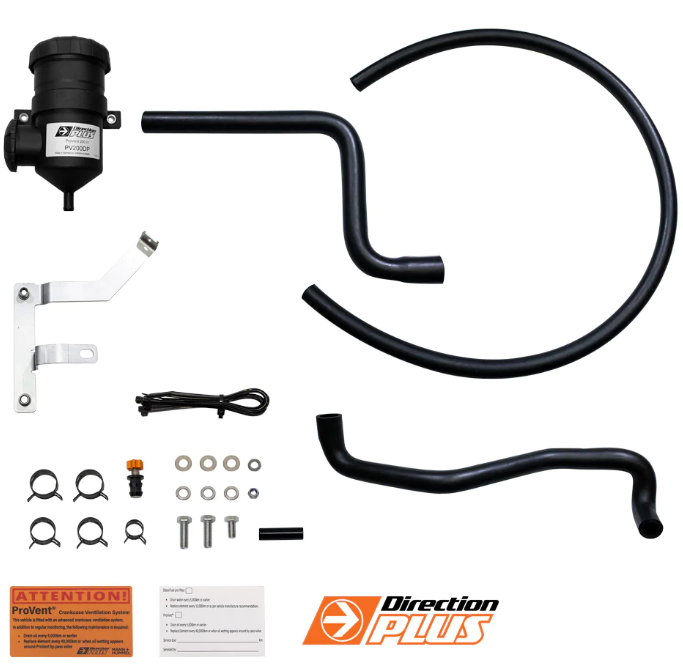

ProVent Oil Kit Contents:

  • 1 x Mann + Hummel ProVent® 200
  • 1 x Mounting Bracket
  • 1 x 450mm of 16mm Hose
  • 1 x 250mm of 16mm Hose
  • 2 x 16mm Straight Joiners
  • 2 x 16mm to 25mm Hose Coupler
  • 4 x 16mm hose Spring Clamps
  • 2 x 25mm hose Spring Clamps
  • 8 x Cable Ties
  • 2 x M8x25 Bolts
  • 4 x M8 Flat Washers
  • 2 x M8 Stainless Steel Nuts
  • 1 x 1000mm of 12mm Hose
  • 1x Drain Tap Assembly
  • 2 x 12-20mm Hose Clamps

*Kit contents are subject to change based on component availability and/or refinement
