Lightfox Rigel Series 40inch Osram LED Light Bar 1Lux 694m 30192 Lumens

Lightfox Rigel Series 40inch Osram LED Light Bar 1Lux 694m 30192 Lumens

SKU: LF-LB-40DR

$249.95
Description

Rigel Series 40inch Osram LED Light Bar 1Lux 694m 30192 Lumens



If you've been searching for a light bar to cut through the dark, then the following arsenal by Lightfox must be the one you are looking for. This 40" LED light bar has been optically upgraded with Lightfox's Vision Drive Tech integrates a 13° spot beam and 90° flood beam to provide smooth beams, and is visually enhanced by OSRAM's® finest OSLON® LEDs to deliver focused beam-shaping and light guides with 1Lux@694m and 30,192lm. Engineered with 5,500K CCT, this 40" LED light bar features still crisp white light but is a little bit warmer & easier on your eyes. Aluminum housing is coated by AkzoNobel powder to defy extreme UV exposure and corrosion, integrated heat sinks secure a lifespan of 50,000 hours, and a screwless front frame with UV resin construction delivers IP68 protection. Dual mounting options allow for greater flexibility, particularly on the roof or roof rack of your vehicle, and colour caps will add visual appeal to make you one of the spotlights on the road.



Features:

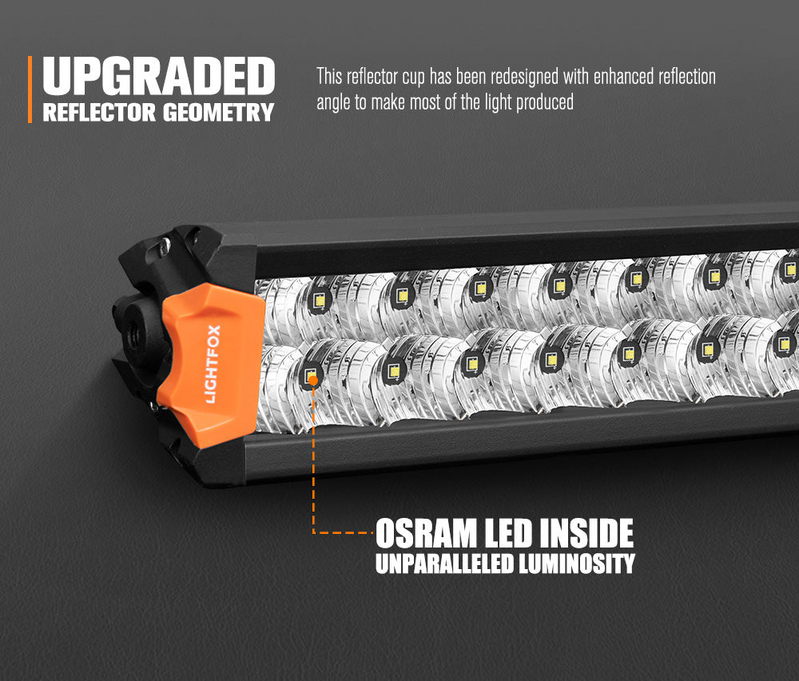

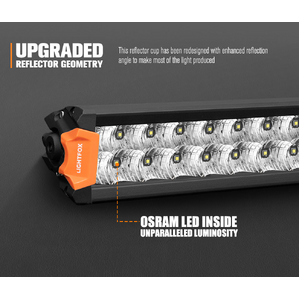

  • Vision Drive Tech: This technology integrates curved and metalized reflectors to maximize light harvesting and provide smooth and clean beams.
  • Ultra Vision: Lightfox offers a combination of a 13° spot beam and a 90° flood beam with a dual row configuration to give you perfect visibility in any conditions.

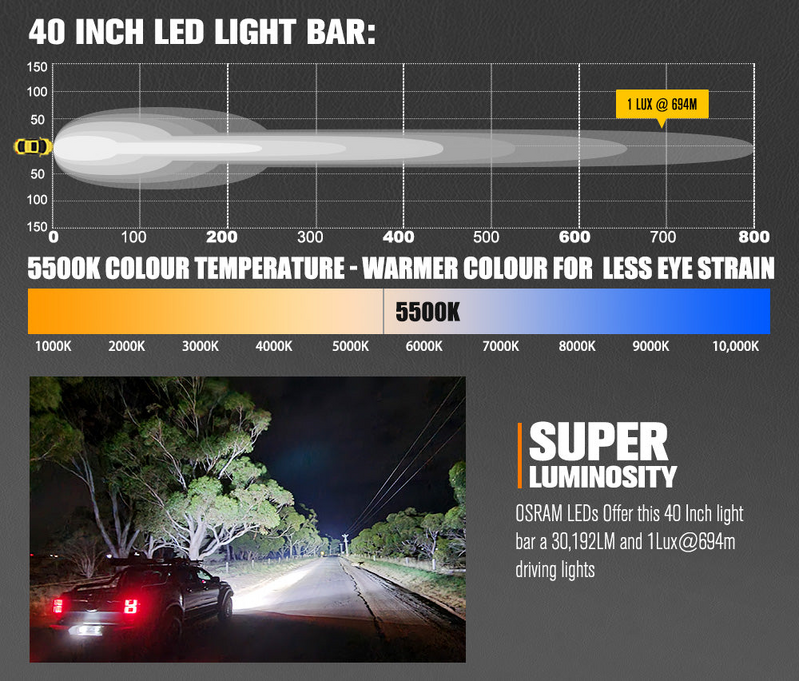

  • Super Luminosity: Powered by OSRAM's® finest OSLON® LEDs, this 40 in-light bar is designed to deliver 30,192lm and 1Lux@694m with a focused beam.
  • Warmer Color Temp: This 40-inch light bar features 5,500K CCT, which means they are still crisp white light but a little bit warmer & easier on your eyes.
  • Optimally Engineered: Built-in circuit board protects the 40-inch LED light bar from flashing and reverse polarity, and the breather eliminates condensation.

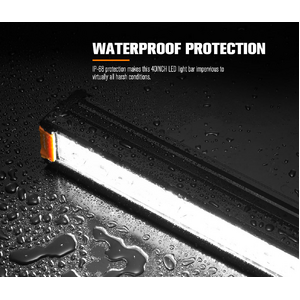

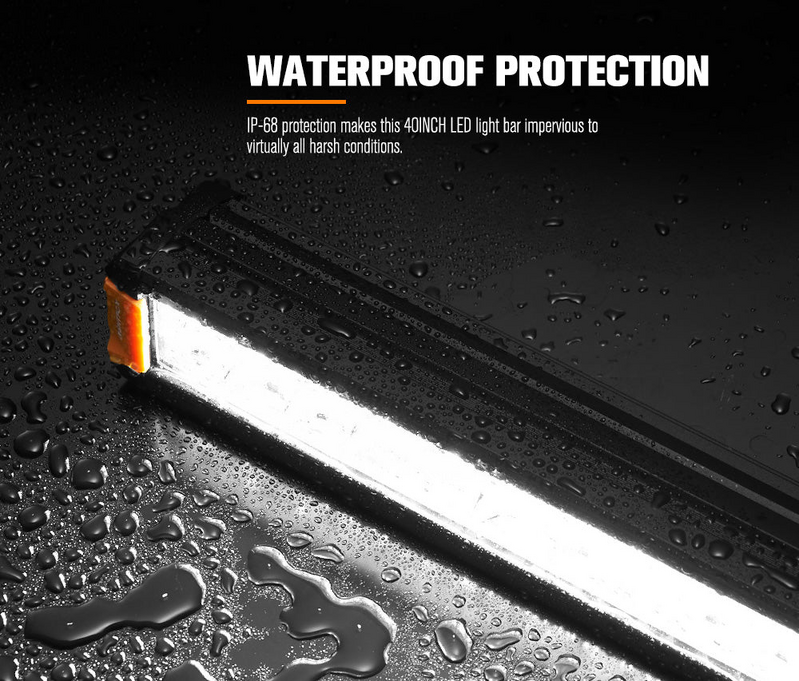

  • IP-68 Protection: This 40" LED bar light adopts a screwless design on the front with UV resin to deliver complete protection against dust and heavy washdown.
  • Tough Construction: AkzoNobel powder protects aluminum housing from UV exposure & corrosion, and anti-scratch PC lens and forged iron brackets are built to last.

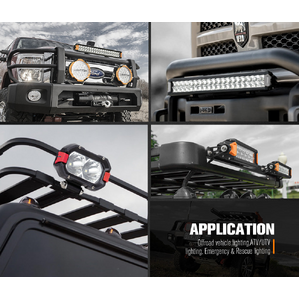

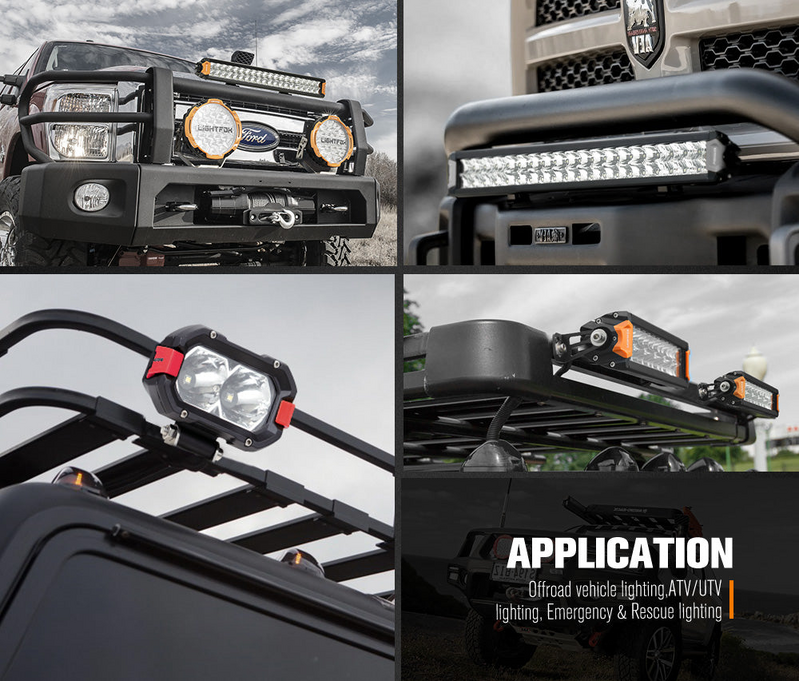

  • Versatile Functionality: The Lightfox LED light bar is suitable to be installed on the roof of midsize trucks, e.g. Colorado, Gladiator, or Tacoma.

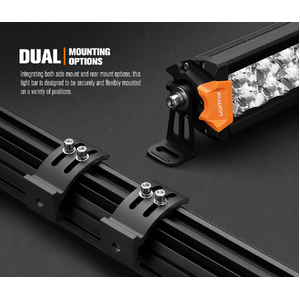

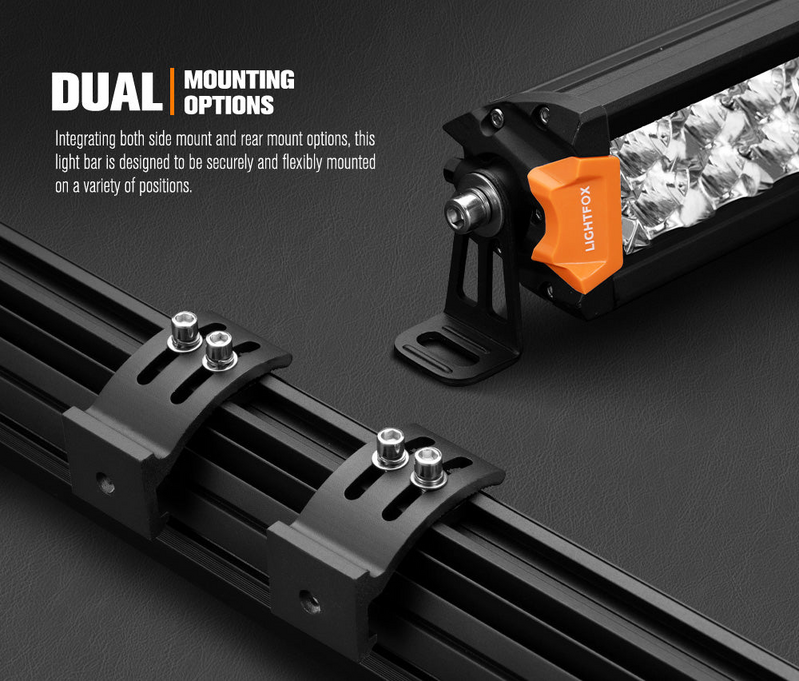

  • Dual Mounting Options: Side and bottom mount options allow it to be mounted in a variety of positions, particularly on the roof or roof rack of your vehicle.

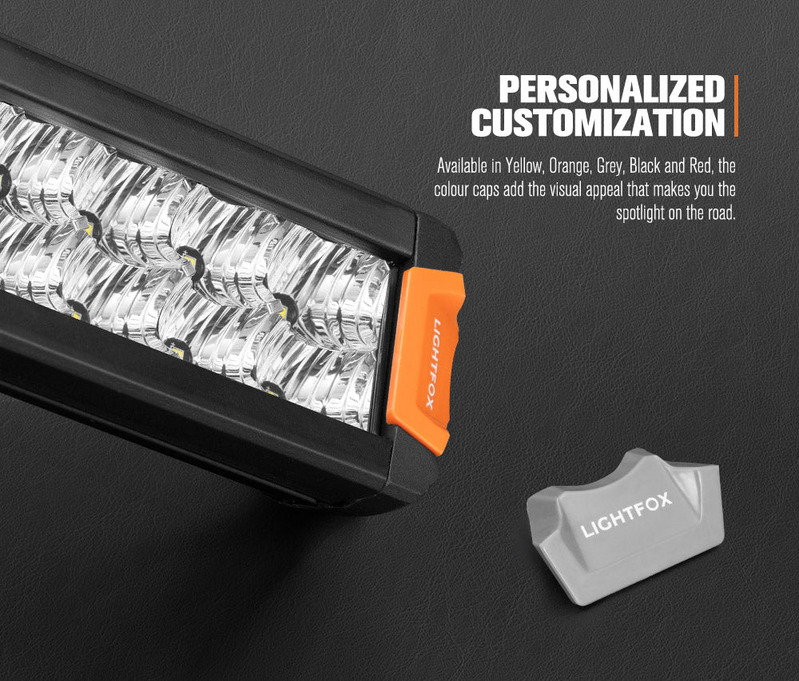

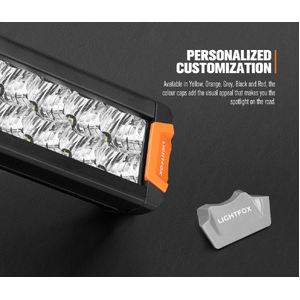

  • Personalized Customization: Available in Yellow, Orange, Grey, Black, and Red, the colour caps add the visual appeal that makes you the spotlight on the road.



VIEW USER MANUAL



PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received

Specifications
Bulb Type: LED
Chip: 3W*80 OSRAM OSLON
Theoretical Output: 240W
Housing & Heat Sinks: Aluminum
Lens: Strengthened PC
Coating: AkzoNobel Powder
Sealing Material: UV Resin
Side Bracket: Forged Iron
Bottom Bracket: Aluminum
Raw Lumens: 30,192LM
Lux Rating: 1Lux@694m
Color Temperature: 5,500K
Reflector Distribution: 16 Flood + 48 Spot + 16 Flood
Spot Beam: 13°
Flood Beam: 90°
Amp Draw: 13A@12V
Expected Lifespan: 50,000 Hours
Relative Light Intensity: 78% (150°C)
Operating Temperature Range: -40°C (-40°F) ~ 150°C (302°F)
Waterproof: IP-68 Rating

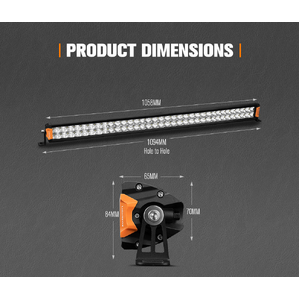

Package Size: 113.5 x 9.3 x 9.5cm
Gross Weight: 4.1kg
KEY SPECIFICATIONS
SKU LF-LB-40DR
Brand Lightfox
Shipping Weight 0.000000kg

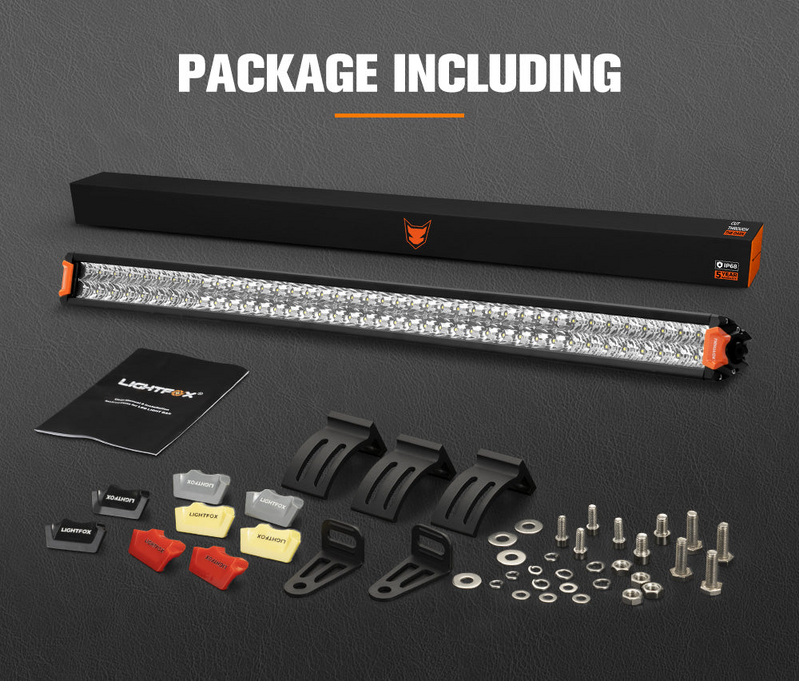

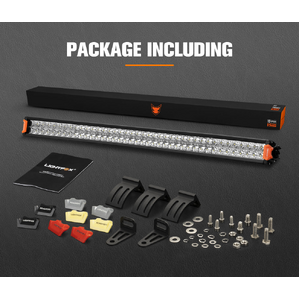

PACKAGE CONTENT
  • 1x Lightfox 40" LED Light Bar
  • 2x Side Mounts
  • 3x Bottom Mounts
  • 1 Set Of Mounting Hardware
  • 4 Pairs Colour Caps
  • 1x User Manual
