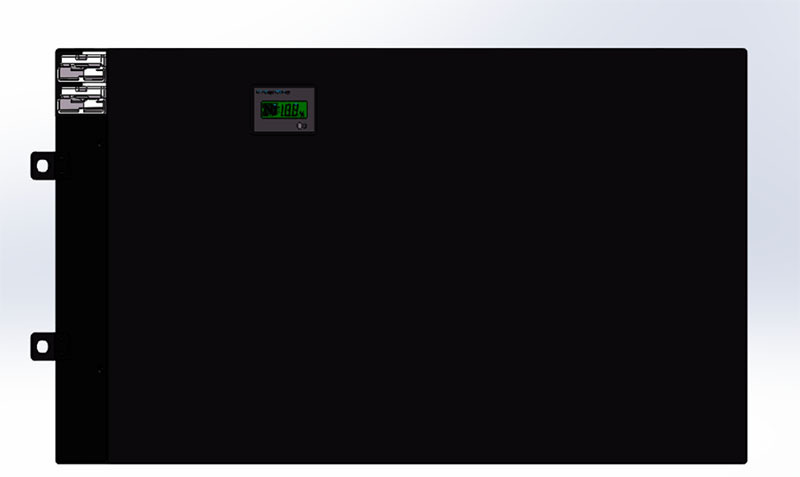

Lion 100Ah Deep Cycle Slimline (Steel Case) Lithium Iron Phosphate Battery, 12.8V, 1280Wh, 1C

Lion 100Ah Deep Cycle Slimline (Steel Case) Lithium Iron Phosphate Battery, 12.8V, 1280Wh, 1C

SKU: LFP12-100SS

group_id: 1
RRP $1,099.00

$990.00
Description

Lion 100Ah Deep Cycle Slimline (Steel Case) Lithium Iron Phosphate Battery, 12.8V, 1280Wh, 1C


Making sure that you choose the right battery is essential to getting the best out of your camping and outdoor experience. Here are some of the factors to consider when you're choosing an auxiliary battery:

  • What appliances and/or accessories do I intend to run?
  • What size battery do I need.., i.e., how many Ah?
  • Will I install an inverter to operate 240V appliances or is it only to run a fridge and some lighting?
  • How much power do I actually need?

All this can get somewhat complex. Whichever way you decide to go, our team is available to help you design and install a system that's right for you and deliver reliable performance all the time.

We choose Lion Lithium Deep Cycle Batteries because they are built using A-grade cells. They offer a 1C rating, which is significantly higher than most lithium batteries on the market and is especially relevant for higher-powered appliances. The Lion lithium batteries are a reliable energy source protected by a high-end BMS.

When comparing Lion lithium to AGM batteries, not only do they deliver a higher energy density and voltage capacity, they store 2-3 times the energy of an AGM battery of the same or similar size. Plus they offer superior performance and are designed to handle the most extreme Australian conditions.

Lion Lithium Deep Cycle batteries are maintenance-free, fast-charging, and environmentally friendly. With more than 4000 cycles you are assured reliable power for longer.

The Lion Lithium batteries operate within a higher temperature range and have a built-in Battery Management System (BMS), which increases safety and allows peace of mind. They are built within the traditional AGM/GEL battery case sizes, so upgrading from your old lead battery to quality lithium has never been this easy.



WHY CHOOSE LION LITHIUM BATTERIES?


PREMIUM CYLINDRICAL CELLS
Highest Cell Power Capacity. UL1642, IEC62619, and IEC62133 listed, with a Cycle life of more than 4000 times @ 80% Depth of Discharge (DOD). Excellent power output consistency after multiple discharges. Strict cell matching standards with internal resistance. Cells are assembled by automatic welding equipment to ensure quality and consistency.


LONGER SERVICE LIFE
4000 cycles @80% DOD


ADVANCE BATTERY MANAGEMENT SYSTEM (BMS)
High-Quality BMS with dedicated active cell balancing - Enhanced circuit board protection preventing overcharge, over-discharge, short circuit, and cell imbalance


SMALLER SIZE, LESS WEIGHT, AND HIGHER CAPACITY
Based on the battery case size, the weight is less than half that of an AGM battery, along with a higher capacity than an AGM in the same case size.


FAST RECHARGE
Up to 10 times faster recharge than an AGM, equalling less downtime and increased energy efficiency.


LONG STANDBY LIFE, LOW SELF DISCHARGE
Less than 2% of capacity loss per month in self-discharge when not in use.


BLUETOOTH SMART MONITORING
Available in all models over 100AH, Allows instant access to battery status (state of chargeSOC, voltage, cycles, temperature) and a complete log of the battery’s activities. To download the app, click below:

Android app
IOS app


TOP MOUNT OR SIDE MOUNT
Batteries can be mounted up to 90 degrees for a greater fitment range.


MULTI-CONNECTION IN SERIES AND PARALLEL
Supports up to 4 in series or 4 in parallel


TEMPERATURE TOLERANT
Discharge between -20C and 60C, charge between 0C and 55C. BMS safety cut off at 75C


HEAT SENSORS FOR GREATER SAFETY
Monitoring the BMS, the cells, and the temperature around the cells within the case. Maximising safety and longevity of the battery.

IP67* - Protected against solid objects like dust and sand, and it has been tested to work in water environments.



Features of LiFEePO4 Battery:

  • Integrated Battery Management System (BMS).
  • Fast charging
  • Environmentally friendly
  • Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than a lead acid battery, helping to minimize replacement cost and reduce the total cost of ownership.
  • Lighter Weight: Up to 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
  • Maintenance Free
  • Higher Power: Delivers twice the power of a lead acid battery, an even higher discharge rate with 4000 cycles at 80 percent discharge, all while maintaining high energy capacity.
  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.
  • High Density, High Discharge Current, High-Temperature Range
  • Supports 4 in series or 4 in parallel.



Typical Applications:

  • RV's/Campers
  • Wheelchairs and scooters
  • Motorhomes and Marine
  • Solar/wind energy storage
  • Back-up power for small UPS
  • Golf trolleys & buggies
  • Electric bikes





PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received



Specifications

ELECTRICAL PARAMETERS

  • Nominal Voltage 12.8V
  • Rated Capacity 100Ah
  • Energy 1280Wh
  • Resistance ≤20mΩ
  • Efficiency ≥98%
  • Cycle Life(1C,80%DOD,25℃) >4000cycles
  • Self Discharge <5% per Month
  • Max Cell in Series/ Parallel 4S/5P



MECHANICAL PARAMETERS

  • Dimension (L×W×H)
    • 644x275x50mm
    • 25.35 x 10.83x 1.97"
  • Weight: 13.5Kg
  • Terminal Type: 120A Anderson
  • Battery Housing: Cold Rolled Steel Sheet
  • Housing Protection: IP30
  • Cell Type-Chemistry: LiFePO4 Cell
  • Communication: -



DISCHARGE PARAMETERS

  • Continuous Discharge Current 100A
  • Pulse Discharge Current 160A (<10S)
  • Recommended Volt. Disconnect 10V
  • BMS Discharge Cut-off Voltage 10V
  • Reconnect Voltage 12V
  • Short Circuit Protection 300-800us



CHARGE PARAMETERS

  • Charge Method CC-CV
  • Charge Voltage 14.2~14.6V
  • Recommended Float Voltage 13.5~13.8V
  • Recommended Charge Current 50A
  • Maximum Charge Current 100A
  • BMS Charge Cut-off Voltage 15V



TEMPERATURE PARAMETERS

  • Discharge Temperature -20℃to 60℃
  • Charge Temperature 0℃to 55℃
  • Storage Temperature -20℃ to 60℃
  • BMS High-Temperature Cut-off 65℃



KEY SPECIFICATIONS
SKU LFP12-100SS
Brand Lion
Shipping Weight 14.000000kg
Shipping Width 0.280m
Shipping Height 0.052m
Shipping Length 0.650m
Shipping Cubic 0.009464000m3
