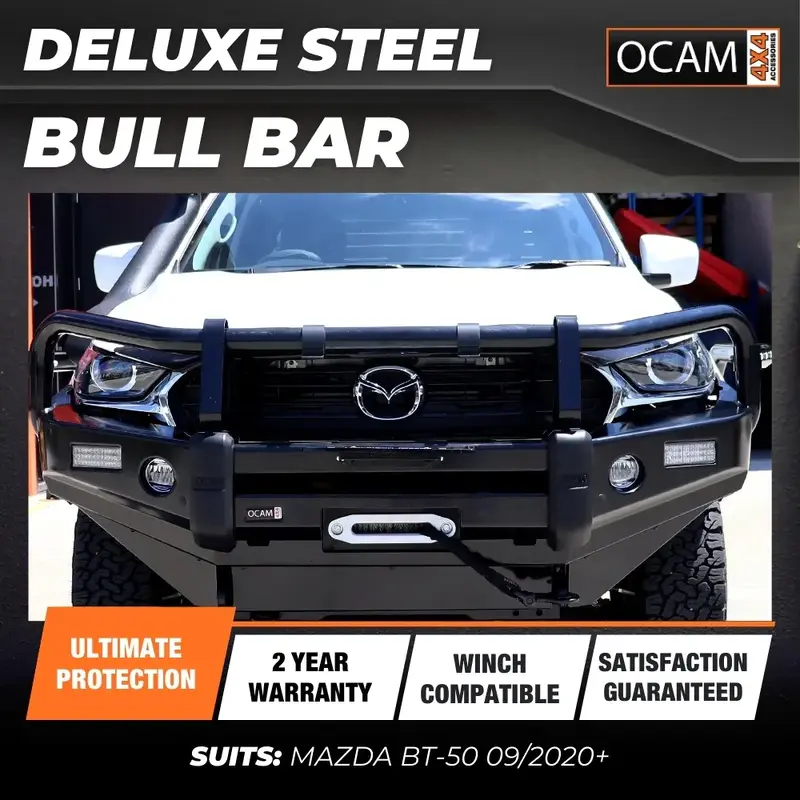

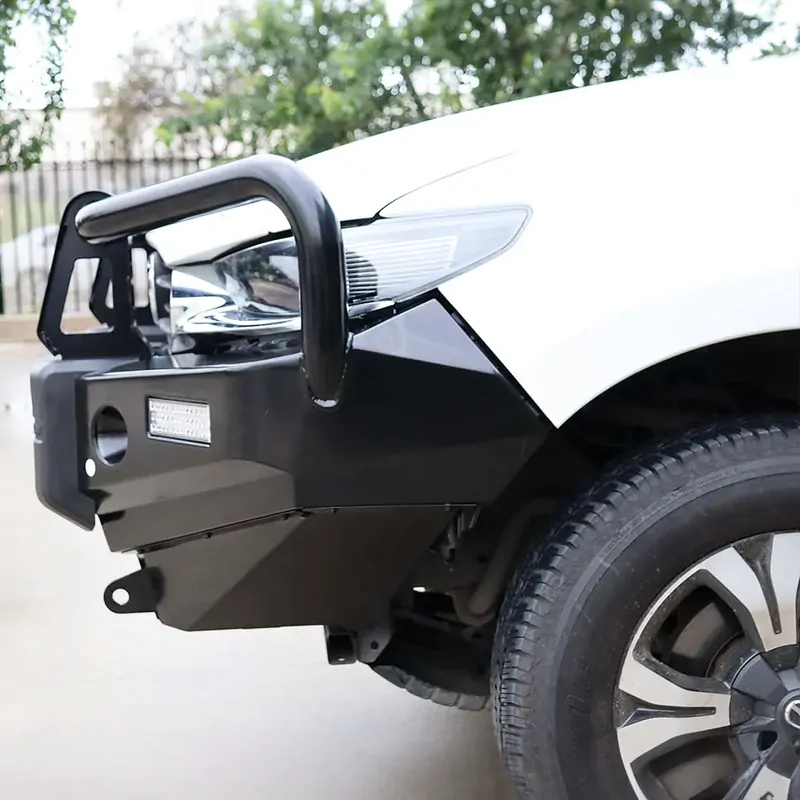

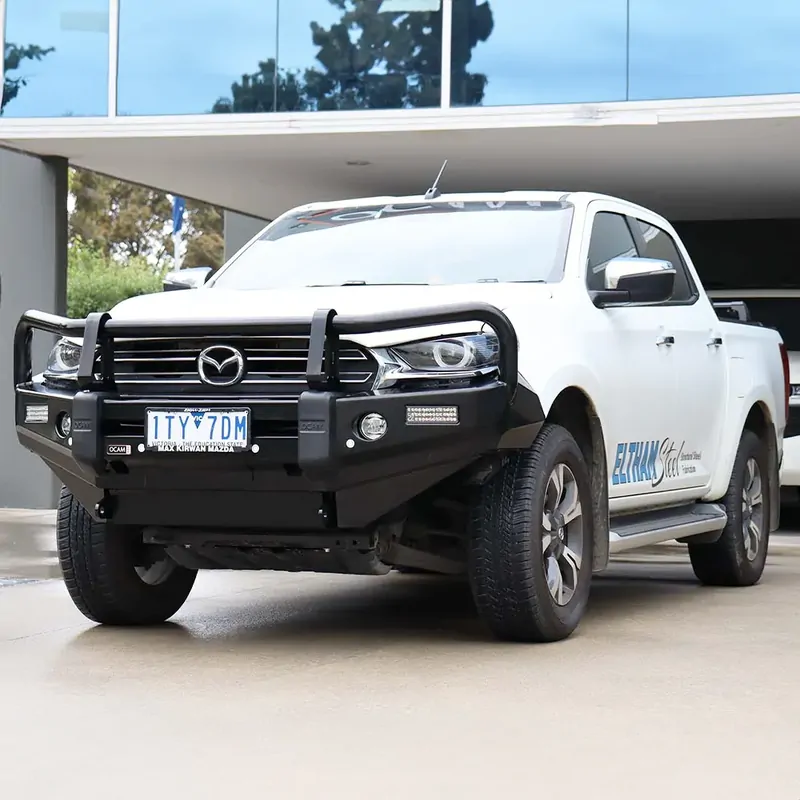

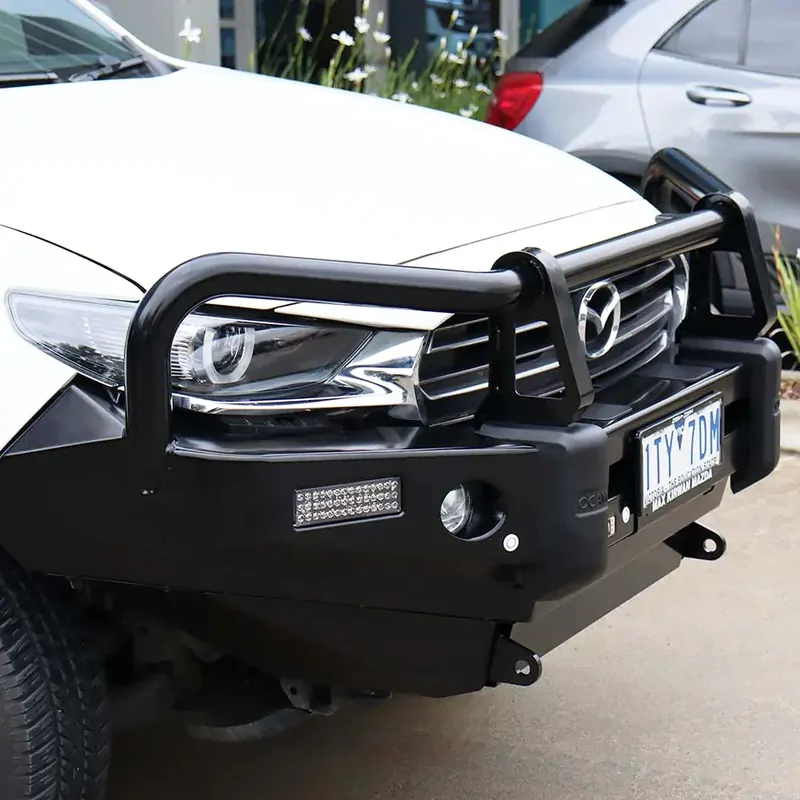

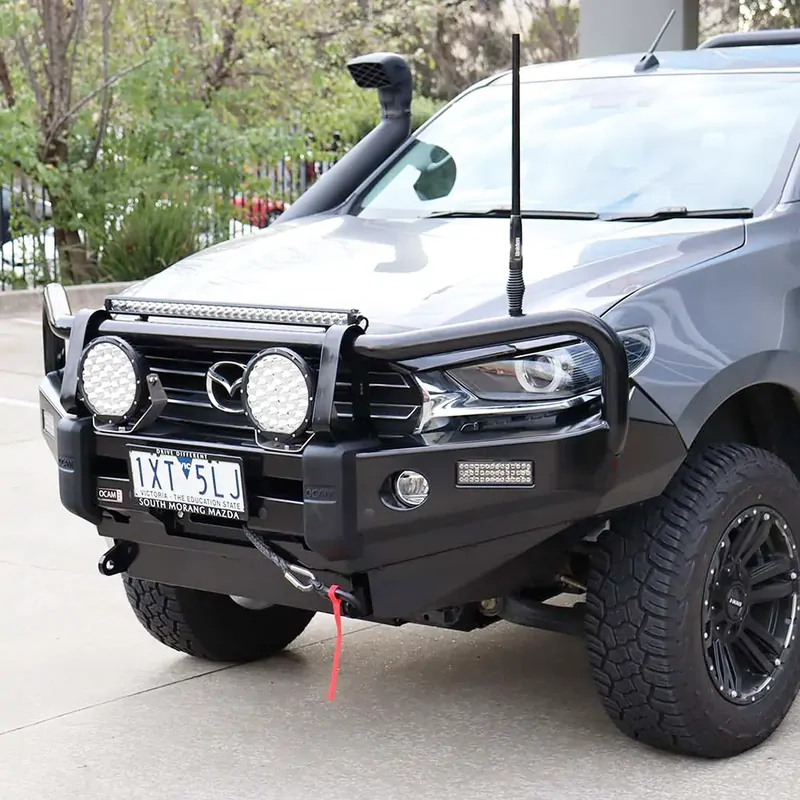

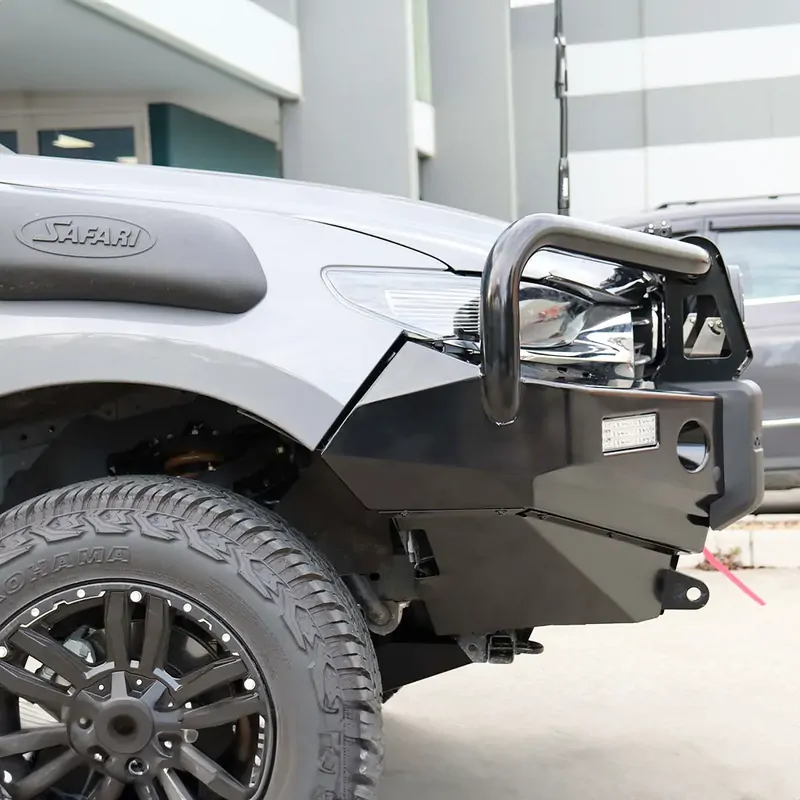

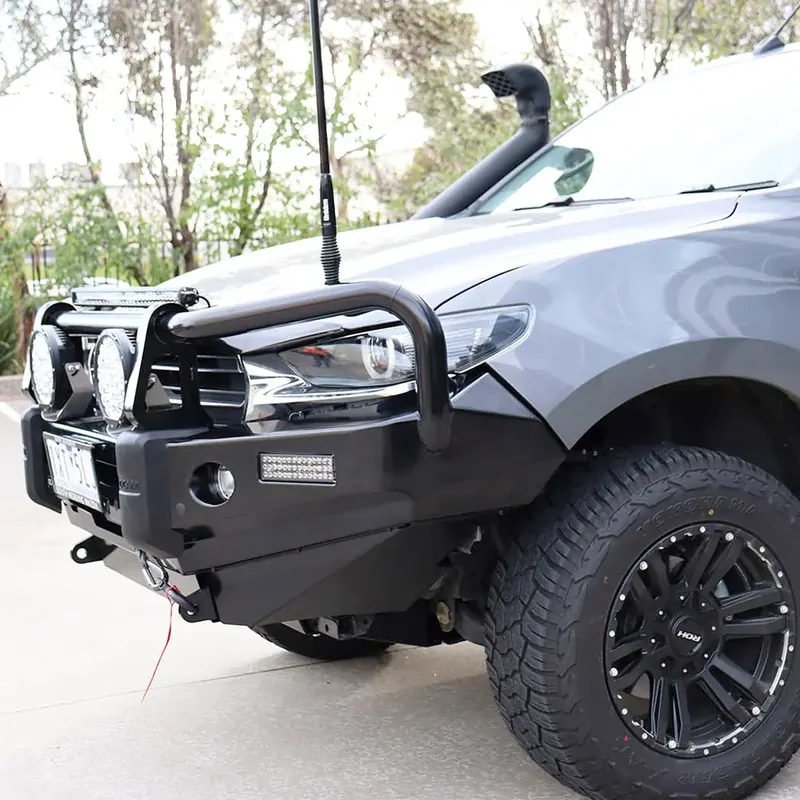

OCAM Deluxe Steel Bull Bar for Mazda BT-50 09/2020+, Pair 9' LED Spot Lights

OCAM Deluxe Steel Bull Bar for Mazda BT-50 09/2020+, Pair 9' LED Spot Lights

SKU: BB2-BT50-21-LED

RRP $2,797.00

NOW $1,780.75

Was $2,095.00

Sale Ends in
23:59 pm, 8 November 2024

FREQUENTLY BOUGHT WITH

Colour Paint Matching for Bull Bars. Plse confirm your colour code

$795.00

Description

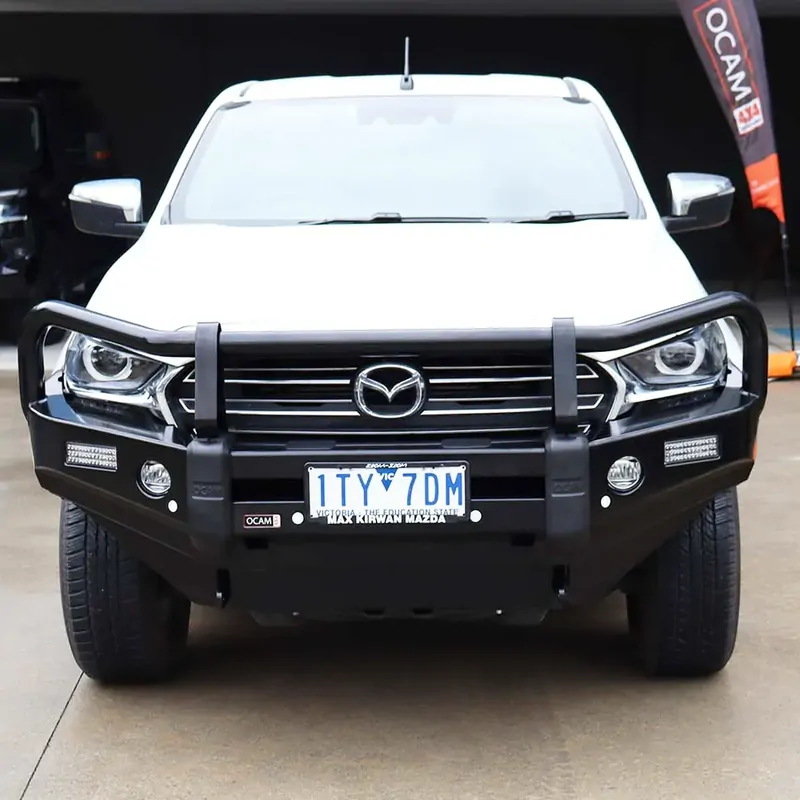

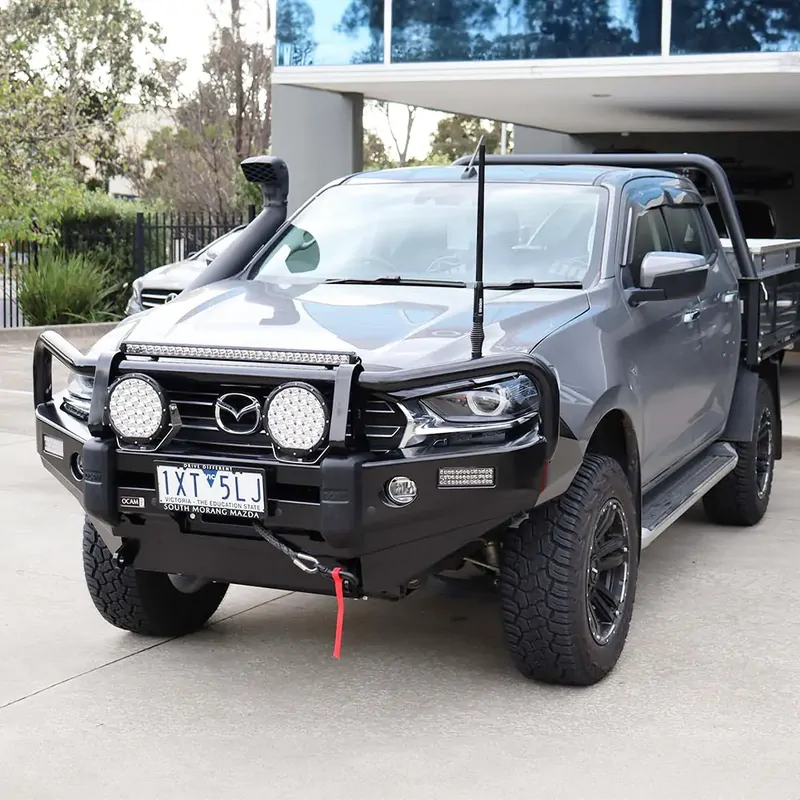

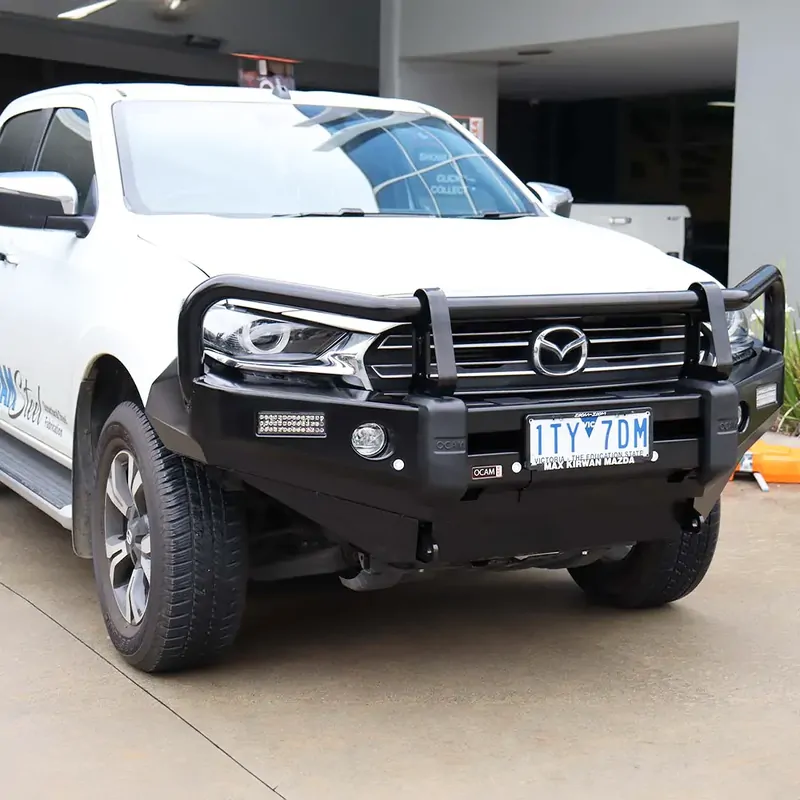

Deluxe Bull Bar for Mazda BT-50 09/2020+ Heavy Duty Steel, ADR Approved + Pair 9' LED Spot Lights



WARRANTY - 2 YEARS



Notes:

  • Does not suit 9" LED lights. Recommended size is 8.5"


Are you looking to install a full-protection bull bar on your 4WD?  If so, good decision!!

With over 50 million kangaroos roaming across Australia (est. 2022), the reason is now bigger than ever. Installing a full protection bull bar to your 4WD not only makes your vehicle off-road capable, but it also makes driving so much safer, especially in country and rural areas.

In the event of an animal road strike, a bull bar offers vital protection. It means that most likely you'll be able to continue driving your 4WD after impact, because the vital components such as the radiator for your vehicle to operate, are protected from severe damage. Otherwise, you'll most likely be stranded, and in need of a tow.

A bull bar is also a rigid structure for mounting essential offroad accessories such as a winch, driving lights, and UHF antenna.

The OCAM Deluxe Bull Bar is a premium product. It is designed to match the vehicle's shape and lines so that it fits and protects perfectly and enhances the vehicle's appearance.



MANUFACTURING

The OCAM bull bars are manufactured overseas using quality materials and processes. Our appointed manufacturer is a fully-approved OEM facility, which produces a wide range of vehicle accessories for the global automotive market, including various major vehicle manufacturers. All aspects of the manufacturing process are quality controlled and maintained.



CRASH TESTING / ADR COMPLIANCE

The OCAM bull bars are crash tested in Australia and ADR compliant. The energy-absorbing system is a patent-pending design and is among the market-leading solutions. Our investment in crash testing and certifying our bull bars means you can rely on the OCAM bull bar for frontal protection to get you anywhere and home safely.



RECOVERY POINTS

The OCAM bull bars come with integrated factory recovery points which are rated to 3400kgs when used together with an equaliser strap. This extra benefit not only saves you on cost but also means there is no need to go out looking for recovery points to suit.



POWDER-COATING

In finishing, the OCAM bull bars go through a rigorous 4-stage powder coat process. It involves:

  1. Pre-treatment: The bull bar raw metal is cleaned and rinsed to remove all impurities. Any trace of material oil and rust is removed. It is then phosphatized, which is a metalworking process involving the use of phosphoric acid to create a protective layer over the metal.
  2. Cathodic epoxy electrocoating: This is the global benchmark for corrosion resistance and provides the bull bar with superior adhesion and corrosion protection. It covers every corner of the product.
  3. Prime Powder Coat: Fixes any imperfections on the surface, e.g., scratch marks, etc., and provides corrosion protection reinforcement for a long-lasting finish.
  4. Top powder coat: Completes the bull bar with a layer of Corrosion Protection ultra-reinforcement and an excellent smooth surface finish.



HOW STRONG ARE OCAM 4X4 BULL BARS?

With strength and reliability in mind, we’ve implemented a few design features to ensure you can have peace of mind when traveling throughout Australia. The bar uses a 63mm top tube and is 100% welded top and bottom through the 2.5mm plate bar. Reinforcement plates are used on the underside unlike many others to guarantee additional strength!




DELUXE VALUE

All OCAM Bull Bars are equipped with LED turn signals, parking, and daytime running lights for OEM replacement. The fog lights are LED and are included at no additional cost! They come with 3 x top tube mounts for all your additional accessories and 2 x high lift jack points. All OCAM bull bars are winch compatible and come with the number plate flip mount.




FEATURES:

  • Modern and market-leading energy absorber system (Patent-Pending)
  • Winch compatible - perfect for off-road use
  • Heavy-duty steel construction for optimum strength
  • Robot-welded for precision manufacturing
  • The latest design in LED's; fog lights with dual brightness options, parkers and modern indicators
  • SRS airbag tested and certified in Australia (ADR approved)
  • High-grade black e-powder coat for long-lasting protection against rust and ultimate-look finish

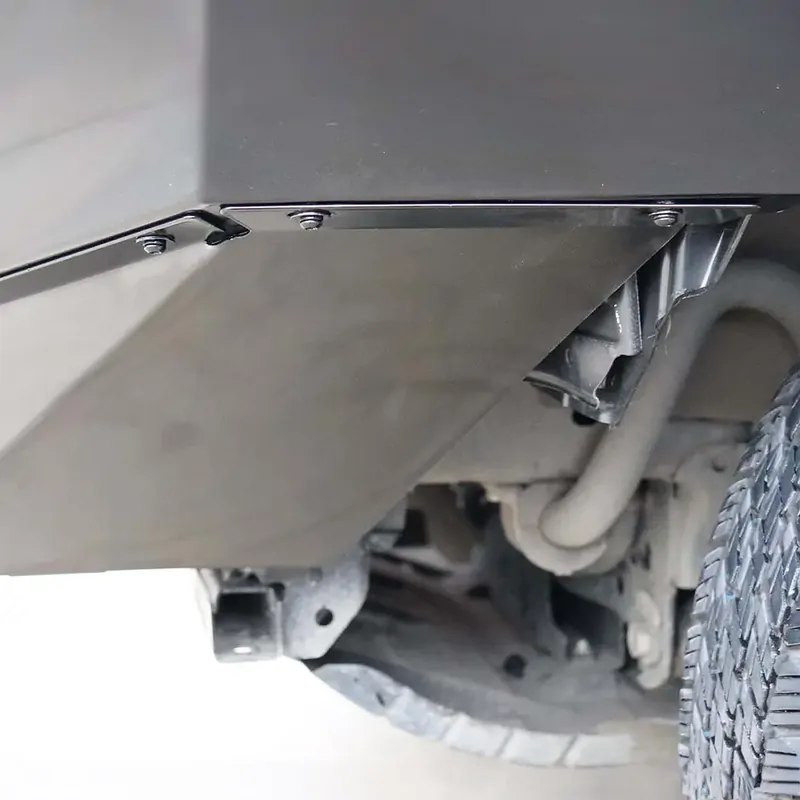

  • Underbody skid-protection plates
  • Polyurethane protection bumpers
  • 63mm top tube, with aerial / lighting mounting brackets
  • 2 x high lift jack points
  • 2 x recovery points, rated to 1700 kgs each. Total 3400 kgs using equaliser strap
  • Number-plate swivel bracket
  • Complete mounting kit with instructions.



FITTING

We offer a complete fitting service at all OCAM locations. Our dealer network across Australia is growing and we now offer a fitting service in various regions too. If you'd like a quote to include fitting, please be in touch. Just let us know your postcode, suburb, and which accessories you'd like fitted up. We'll confirm pricing for you asap.

* If you're based in an area where we don't have a fitting arrangement in place as yet, we welcome working with you to locate a suitable fitter.


Download fitting instructions

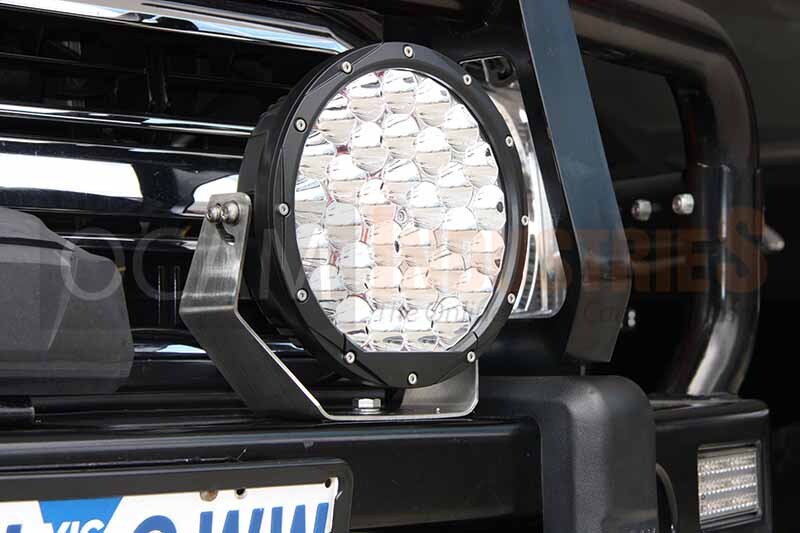

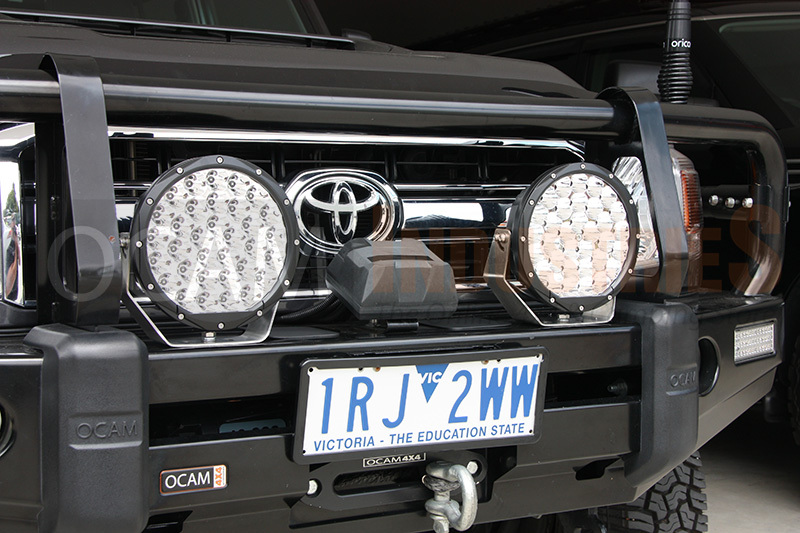

OCAM 4x4 Illuminate V2 9” LED driving lights 180W Pair


OCAM Illuminate series 9” LED spotlights are the answer to the dark situations you might find yourself in whilst adventuring.

With a sleek no screw design that’s built tough to withstand any harsh Australian conditions, these spotlights can light the way. Rain, hail, mud, snow our lights are rigorously tested in advanced laboratories to simulate every condition you could throw at it. With our special design to give it an IP68 and IP69 waterproof and dustproof rating, you can go swimming 1m deep for up to 60 minutes.

36 Quality 5W OSRAM LEDs are used in the chipset with a quality chipset board design to ensure 50,000-hours LED lifespan with solid-state technology.

With a 2183M distance of light throw design, we ensure that the Illuminate series gets the job done.

The slimline design is sure to fit most applications. Being 12V and 24V, it is possible to be used on all cars and trucks.

OCAM 4x4 Illuminate 9” LED driving lights – you get performance at an affordable price!

BEAM PATTERN: COMBO





PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received.






Specifications



CONSTRUCTION:

Material Steel
Bar thickness 2.5mm
Tubing diameter 63mm
Tubing thickness 2mm
Tabs 3 points (Antenna or light brackets)
Underbody protection plates YES
Bumper over-riders YES

COMPATABILITY:
OE parking sensor  YES
Headlight washer  -
Winch compatible YES
High lift jacking points YES x 2
Tow-points YES - 1700kgs x 2. Total 3400kgs using equaliser strap.

LIGHTING
LED fog lights YES
LED indicator/parker lights YES

SAFETY
Airbag compatible YES

INSTALLATION
Mounting hardware YES
Instructions YES





LED SPOTLIGHTS:

  • Osram-Cree A Grade Chip 5W x 36
  • OCAM lighting Optical design
  • Waterproof: IP68 & IP69K
  • Deutsch waterproof connector
  • DuPont painting
  • Aluminium housing
  • Patent Breather
  • Operating Temp: -40 ~ + 145 deg
  • 50,000+ hours average lifespan
  • 5 years of continuous use
  • Pass CE, RoHS, UV, Vibration,
  • Anti-interference, Salt fog, High&low
  • temperature, drop ball impact etc.
  • 9-36V
KEY SPECIFICATIONS
SKU BB2-BT50-21-LED
Brand OCAM
Shipping Weight 50.000000kg
Shipping Width 0.600m
Shipping Height 0.900m
Shipping Length 2.000m
Shipping Cubic 1.080000000m3
PACKAGE CONTENT

Bull Bar

  • 1 x Steel bull bar
  • 1 x Winch mounting bracket
  • 2 x Fog lights, parkers and indicators sets
  • Complete set of underbody skid protection plates
  • 2 x Polyurethane protection bumpers
  • Full mounting & installation kit
  • Fitting instructions





LED SPOT LIGHTS

  • 2 x 9 inch LED Driving Lights
  • 4 x Covers (2 Spot & 2 Flood)
