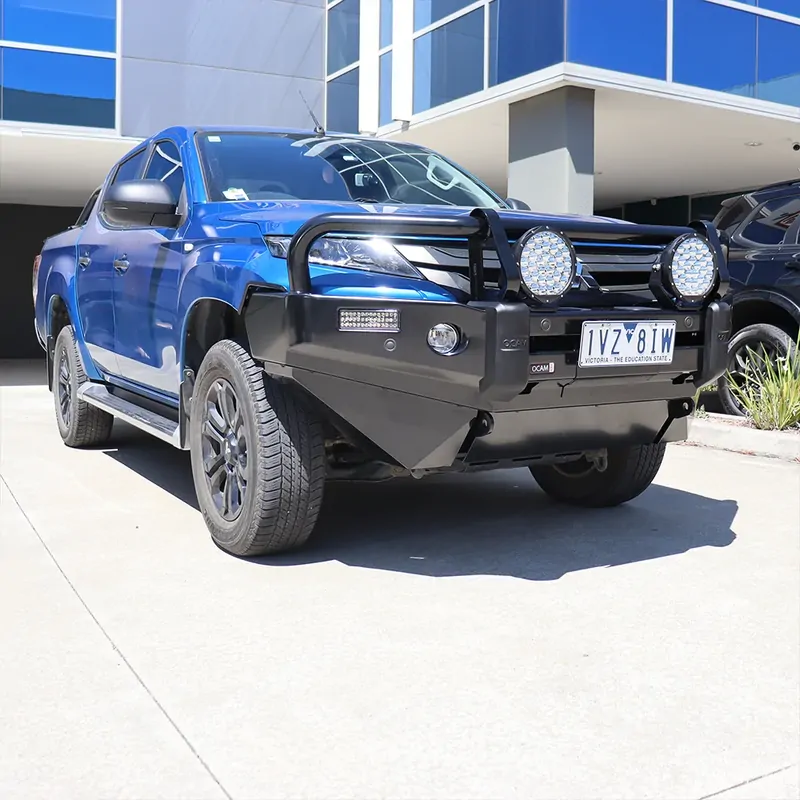

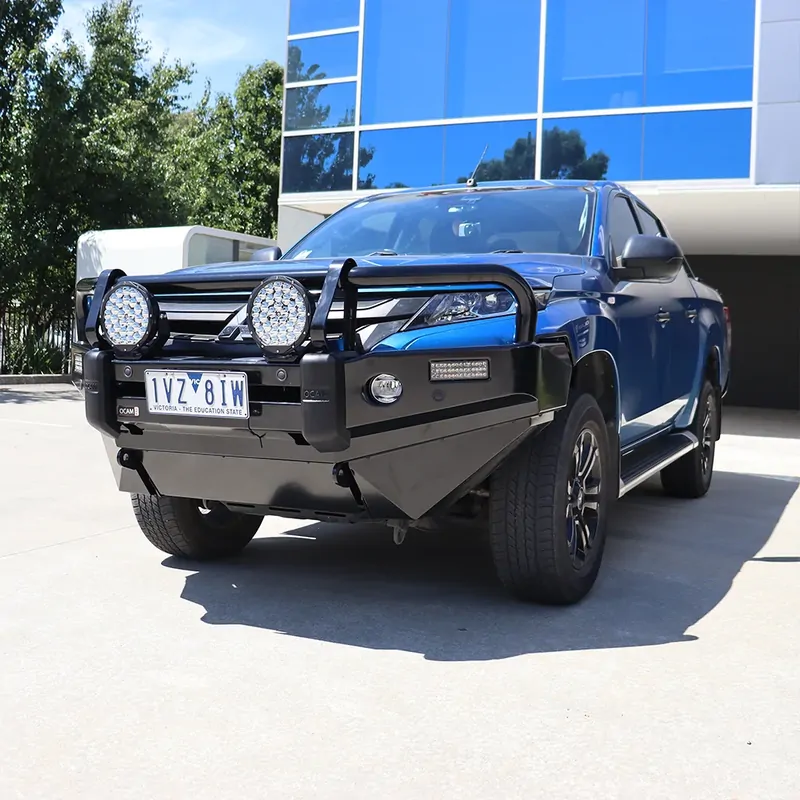

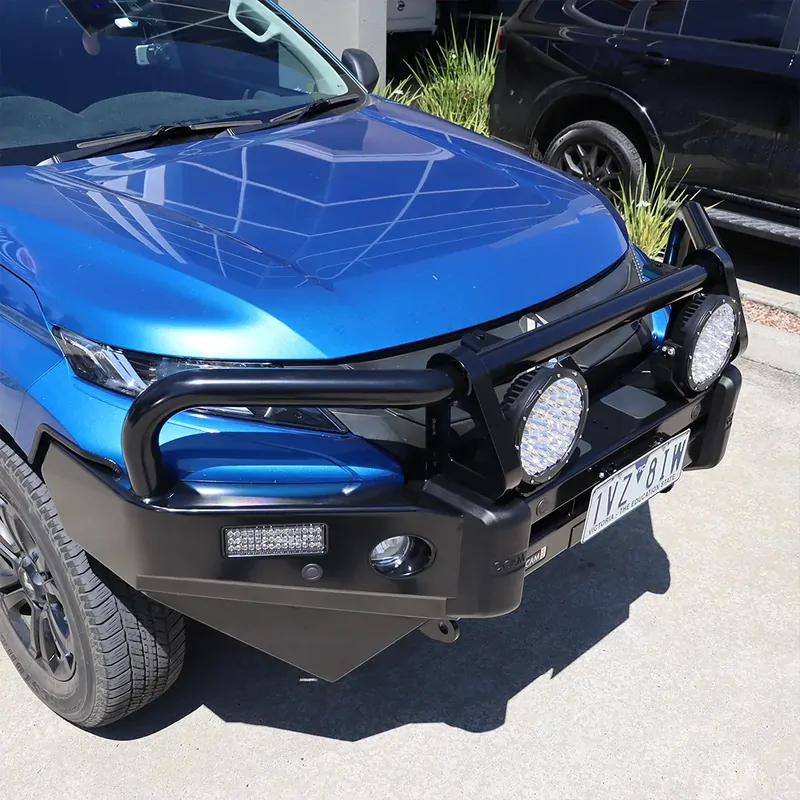

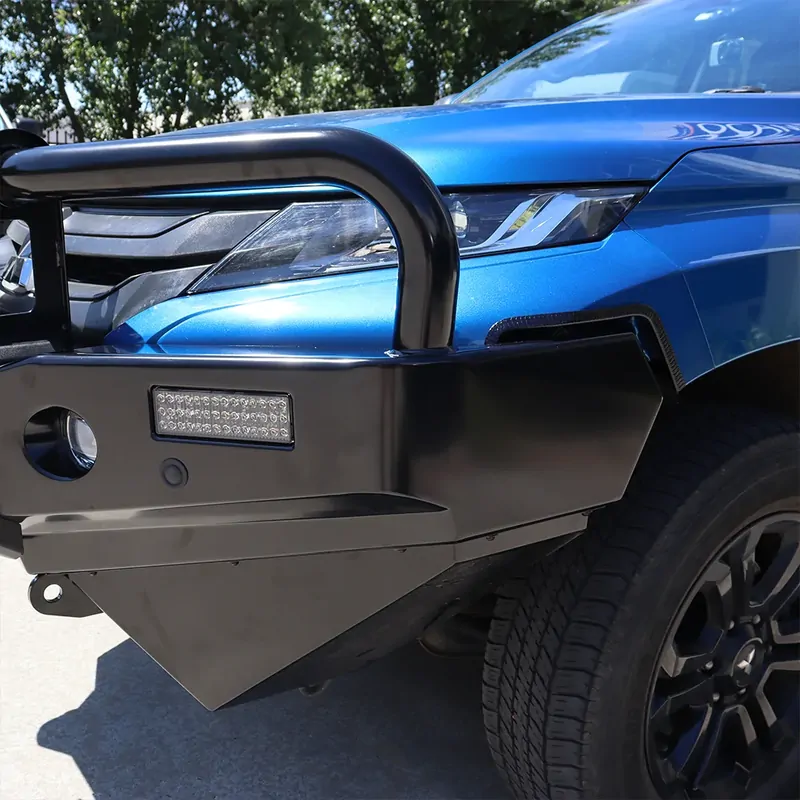

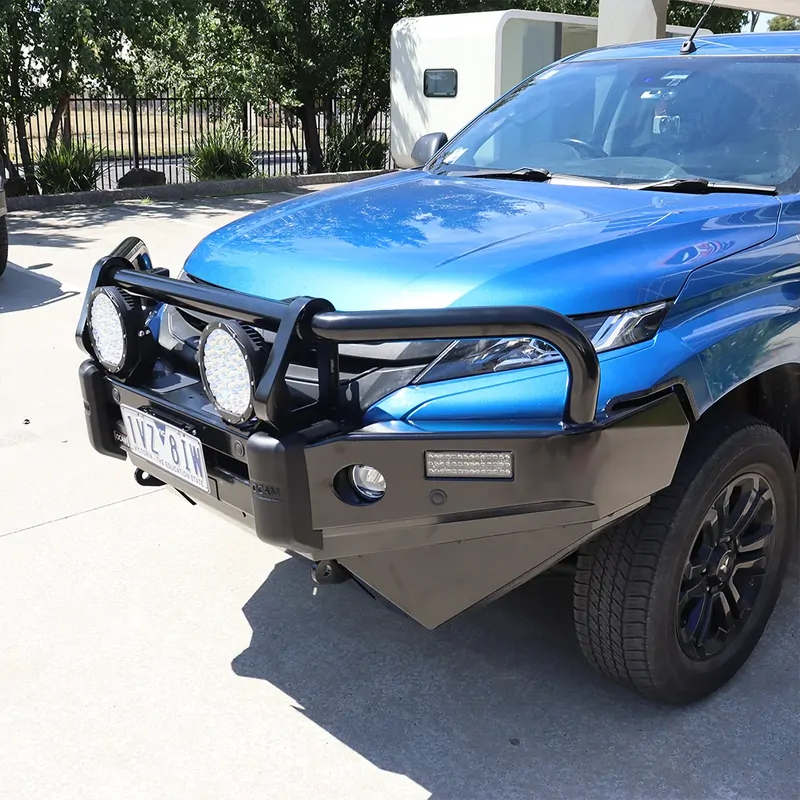

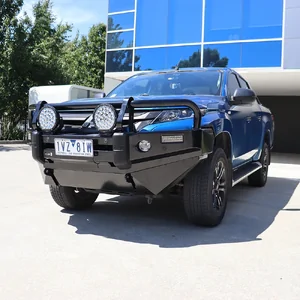

OCAM Deluxe Steel Bull Bar for Mitsubishi Triton MR 11/2018-2022, Winch Compatible

OCAM Deluxe Steel Bull Bar for Mitsubishi Triton MR 11/2018-2022, Winch Compatible

OEM QUALITY STANDARD!

SKU: BB2-MT-18-P

group_id: 1
RRP $1,995.00

$1,695.00

FREQUENTLY BOUGHT WITH

Colour Paint Matching for Bull Bars. Plse confirm your colour code

$795.00

Description

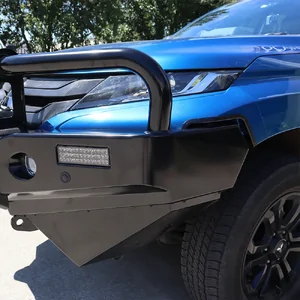

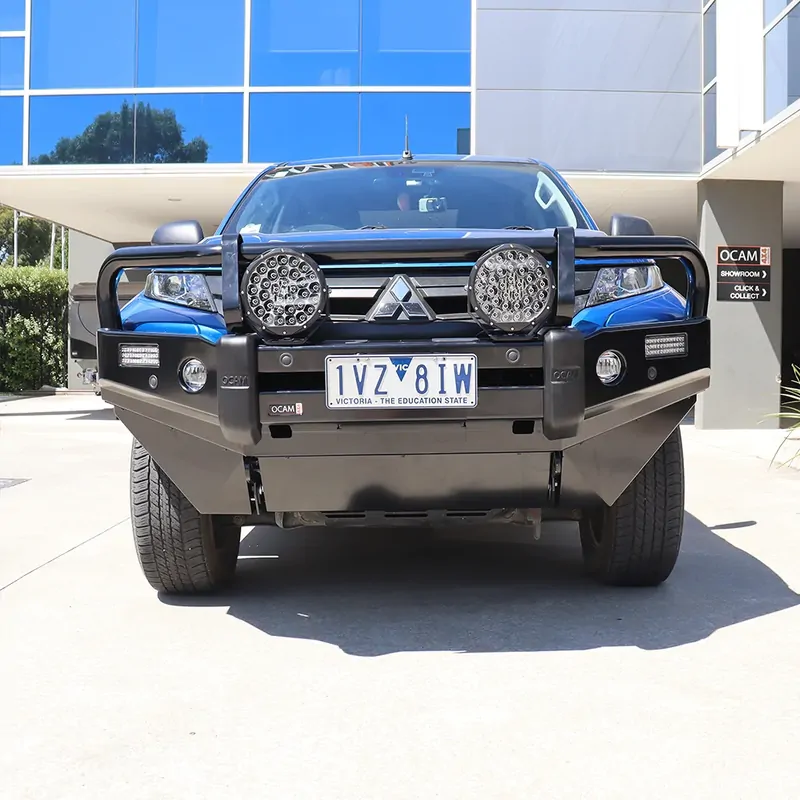

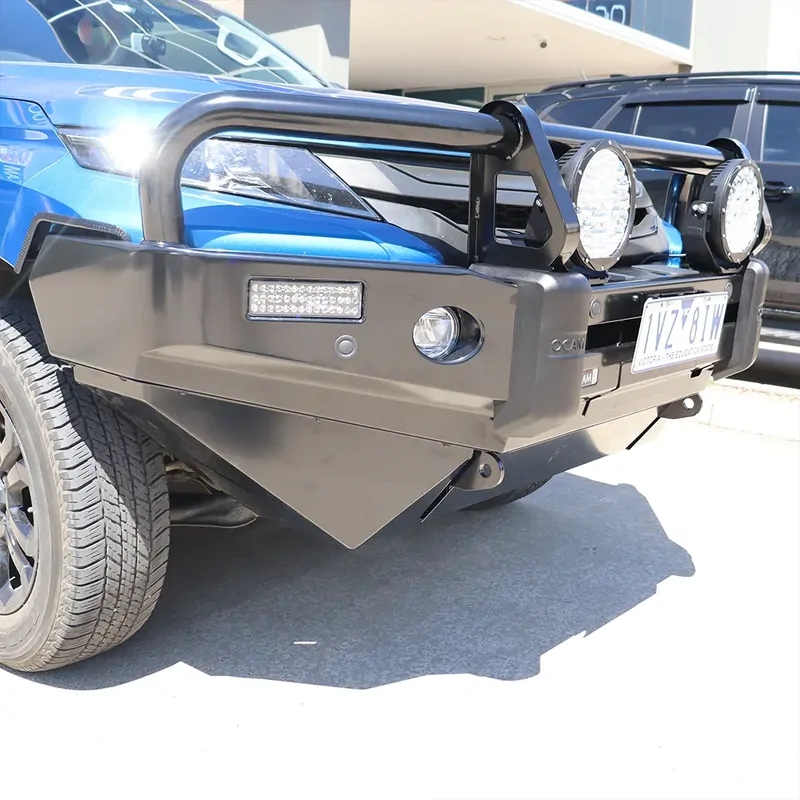

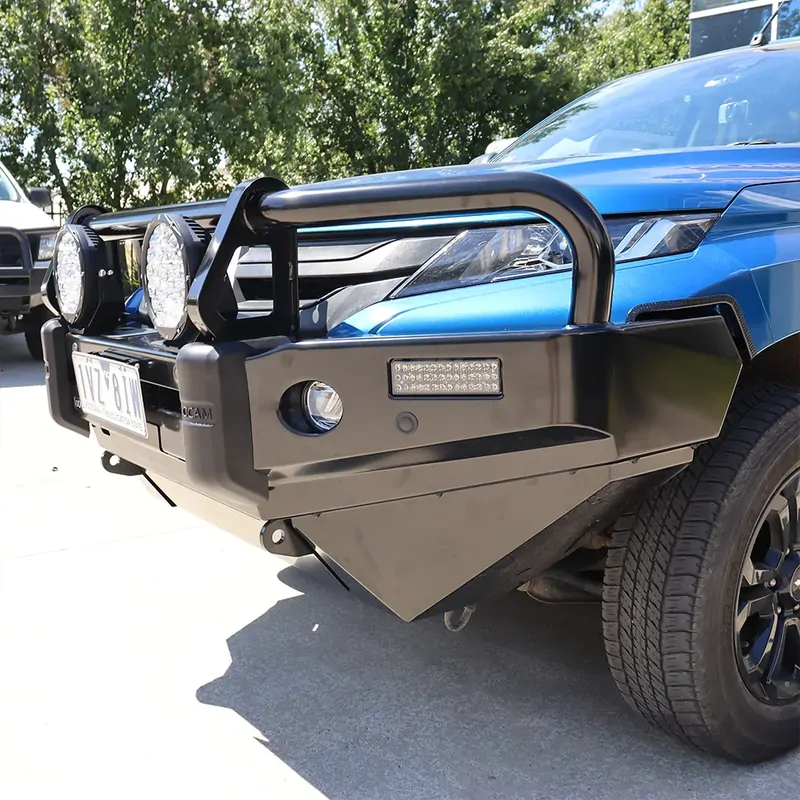

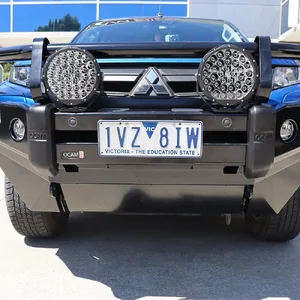

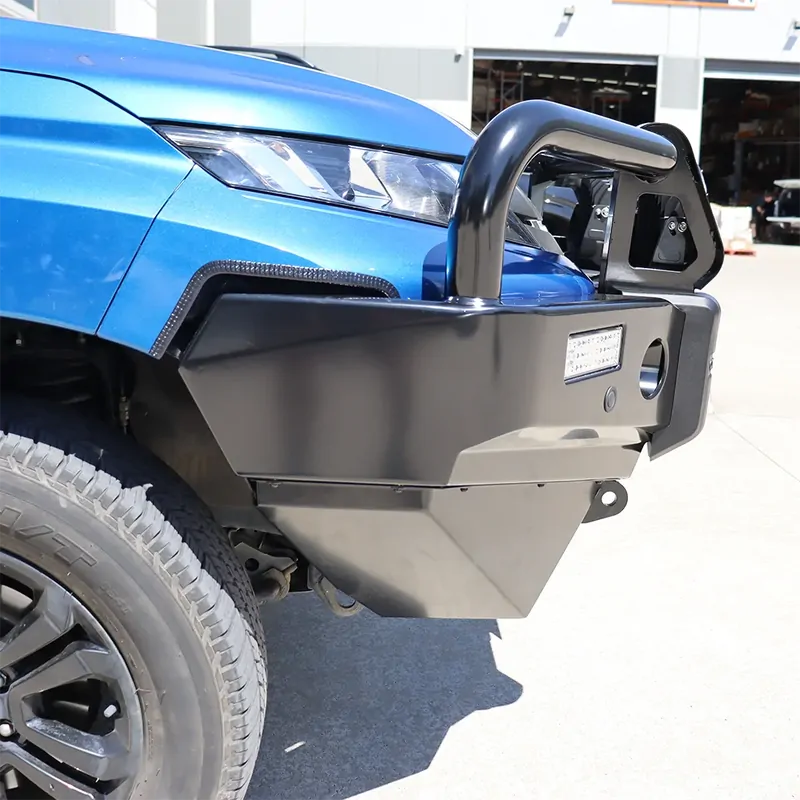

OCAM Deluxe Steel Bull Bar for Mitsubishi Triton MR 11/2018-2022, Winch Compatible

Does not suit MY23


WARRANTY - 2 YEARS

COMBO SPECIALS AVAILABLE. Choose your preference using the dropdown menu.


Are you looking to install a full-protection bull bar on your 4WD?  If so, good decision!!

With over 50 million kangaroos roaming across Australia (est. 2022), the reason is now bigger than ever. Installing a full protection bull bar to your 4WD not only makes your vehicle off-road capable, but it also makes driving so much safer, especially in country and rural areas.

In the event of an animal road strike, a bull bar offers vital protection. It means that most likely you'll be able to continue driving your 4WD after impact, because the vital components such as the radiator for your vehicle to operate, are protected from severe damage. Otherwise, you'll most likely be stranded, and in need of a tow.

A bull bar is also a rigid structure for mounting essential offroad accessories such as a winch, driving lights, and UHF antenna.

The OCAM Deluxe Bull Bar is a premium product. It is designed to match the vehicle's shape and lines so that it fits and protects perfectly and enhances the vehicle's appearance.



MANUFACTURING

The OCAM bull bars are manufactured overseas using quality materials and processes. Our appointed manufacturer is a fully-approved OEM facility, which produces a wide range of vehicle accessories for the global automotive market, including various major vehicle manufacturers. All aspects of the manufacturing process are quality controlled and maintained.



CRASH TESTING / ADR COMPLIANCE

The OCAM bull bars are crash tested in Australia and ADR compliant. The energy-absorbing system is a patent-pending design and is among the market-leading solutions. Our investment in crash testing and certifying our bull bars means you can rely on the OCAM bull bar for frontal protection to get you anywhere and home safely.



RECOVERY POINTS

The OCAM bull bars come with integrated factory recovery points which are rated to 3400kgs when used together with an equaliser strap. This extra benefit not only saves you on cost but also means there is no need to go out looking for recovery points to suit.



POWDER-COATING

In finishing, the OCAM bull bars go through a rigorous 4-stage powder coat process. It involves:

  1. Pre-treatment: The bull bar raw metal is cleaned and rinsed to remove all impurities. Any trace of material oil and rust is removed. It is then phosphatized, which is a metalworking process involving the use of phosphoric acid to create a protective layer over the metal.
  2. Cathodic epoxy electrocoating: This is the global benchmark for corrosion resistance and provides the bull bar with superior adhesion and corrosion protection. It covers every corner of the product.
  3. Prime Powder Coat: Fixes any imperfections on the surface, e.g., scratch marks, etc., and provides corrosion protection reinforcement for a long-lasting finish.
  4. Top powder coat: Completes the bull bar with a layer of Corrosion Protection ultra-reinforcement and an excellent smooth surface finish.



HOW STRONG ARE OCAM 4X4 BULL BARS?

With strength and reliability in mind, we’ve implemented a few design features to ensure you can have peace of mind when traveling throughout Australia. The bar uses a 63mm top tube and is 100% welded top and bottom through the 2.5mm plate bar. Reinforcement plates are used on the underside unlike many others to guarantee additional strength!




DELUXE VALUE

All OCAM Bull Bars are equipped with LED turn signals, parking, and daytime running lights for OEM replacement. The fog lights are LED and are included at no additional cost! They come with 3 x top tube mounts for all your additional accessories and 2 x high lift jack points. All OCAM bull bars are winch compatible and come with the number plate flip mount.




FEATURES:

  • Modern and market-leading energy absorber system (Patent-Pending)
  • Winch compatible - perfect for off-road use
  • Heavy-duty steel construction for optimum strength
  • The latest design in LED's; fog lights with dual brightness options, parkers and modern indicators
  • SRS airbag tested and certified in Australia (ADR approved)
  • High-grade black e-powder coat for long-lasting protection against rust and ultimate-look finish

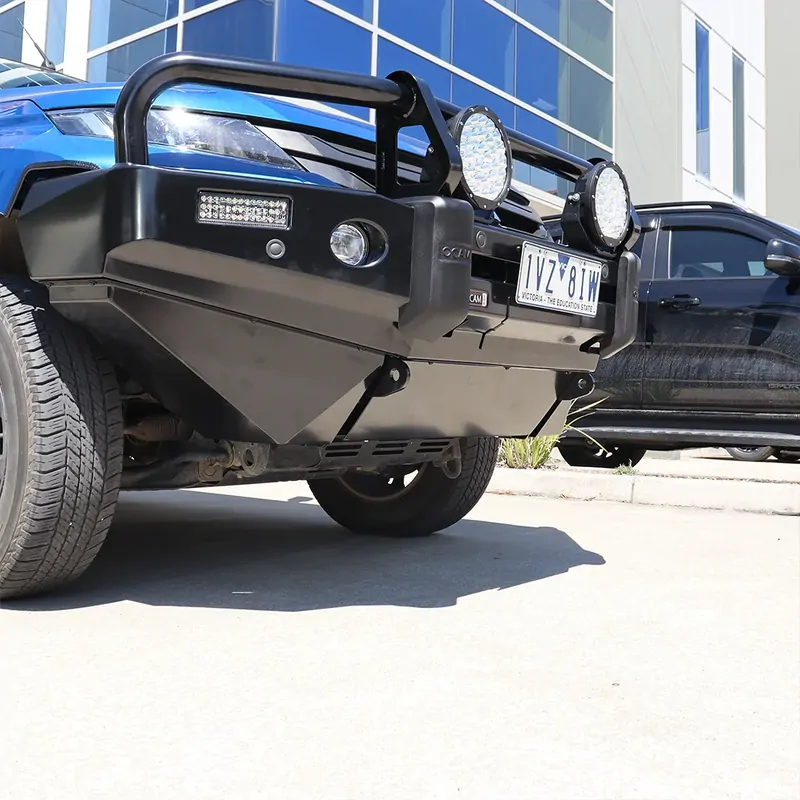

  • Underbody skid-protection plates
  • Polyurethane protection bumpers
  • 63mm top tube, with aerial / lighting mounting brackets
  • 2 x high lift jack points
  • 2 x recovery points, rated to 1700 kgs each. Total 3400 kgs using equaliser strap
  • Number-plate swivel bracket
  • Complete mounting kit with instructions.



FITTING

We offer a complete fitting service at all OCAM locations. Our dealer network across Australia is growing and we now offer a fitting service in various regions too. If you'd like a quote to include fitting, please be in touch. Just let us know your postcode, suburb, and which accessories you'd like fitted up. We'll confirm pricing for you asap.

* If you're based in an area where we don't have a fitting arrangement in place as yet, we welcome working with you to locate a suitable fitter.


Download fitting instructions.


Note:

  • For maximum ground clearance, we recommend removing the original windscreen washer bottle and fitting the aftermarket washer bottle & bracket - Included in the fitting kit with this bull bar).
  • Does not suit models with a camera



Use the selector on this webpage to add a winch and/or LED Spot Lights to your order.  The available combo options are:


14500lbs Winch

  • 2 x Wireless Remote Controls
  • Automatic Load-holding Brake
  • 3-Stage Planetary Gearing System
  • Synthetic Dyneema Rope
  • Power in and Power out
  • Waterproof and Mudproof

Highlights:
  • Tough on and off-road ability
  • Will guide you through tough swamp conditions and pull you out of danger
  • Heavy-duty resistance to harsh weather, reliability against corrosion and moisture
  • Pulling power to drag your vehicle out of the vital circumstances! Dual modes comply with wired and wireless functions!
  • 12-month warranty guaranteed

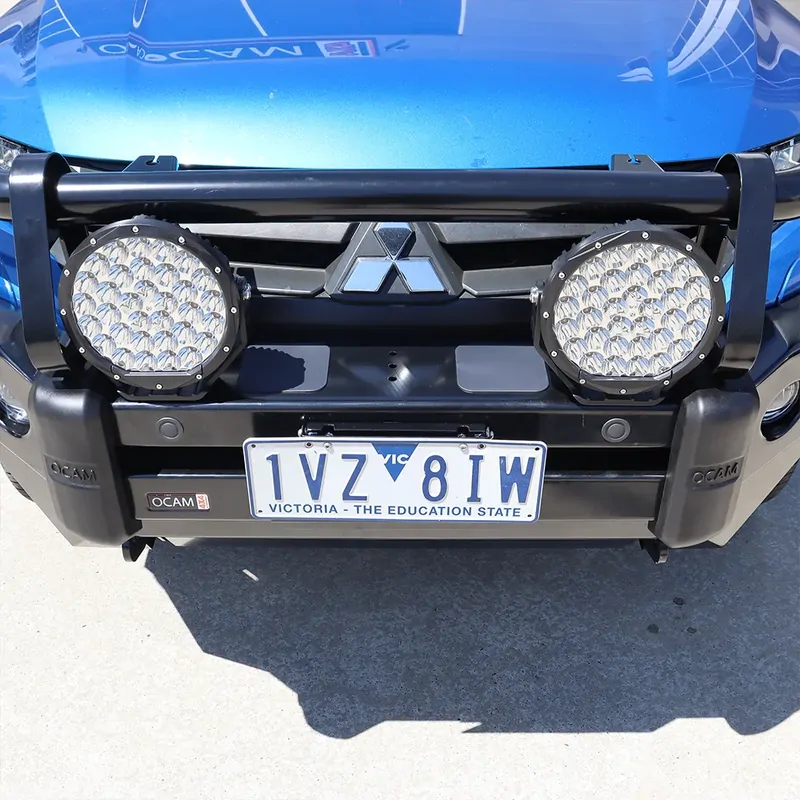

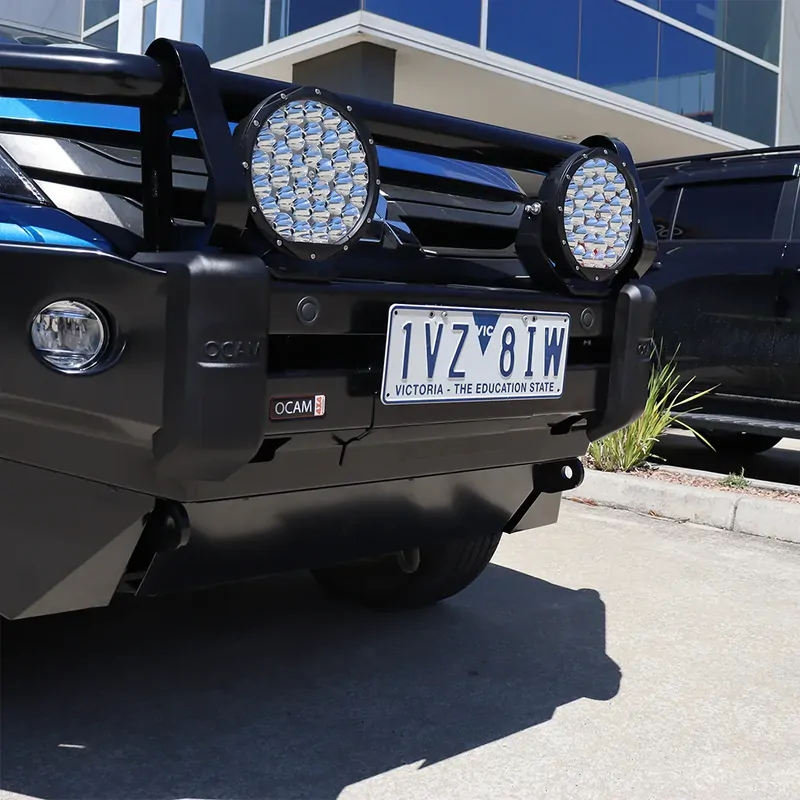

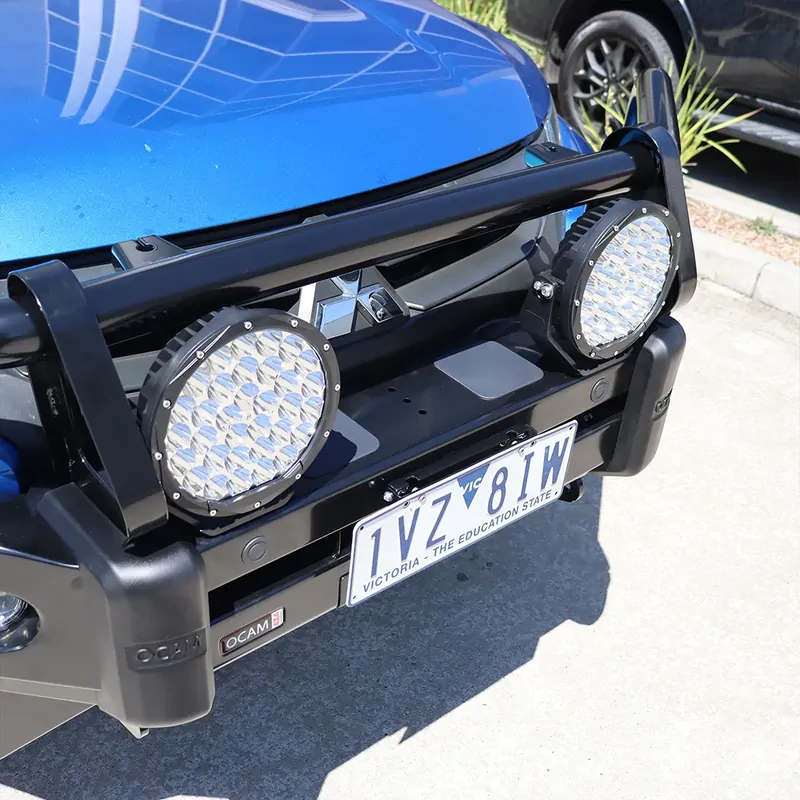

LED Spot Lights 9inch 20,000LM

** Available in Red or Black

Highlights:

  • 37pcs of high-intensity Cree LEDs produce a whopping 20,000Lumens, per pair
  • Glass-filled nylon composite housing makes these light and tough
  • Spot and flood lenses are included for the smoothest blend of white light
  • The daytime running lights offer style and practicality
  • Extruded aluminium (6063) get you maximum heat dissipation
  • Over-sized heat sink fins and military breather ensure ultra-efficient heat elimination
  • IP68 a high-grade aluminium housing.
  • Waterproof, dustproof and quakeproof to 100%, for maximum performance even in extreme conditions
  • Stainless steel hardware
  • 90-degree angle adjustable black mount
  • High current waterproof connected and DT plug
  • Waterproof membrane
  • Thermal overload protection - up to 50,000 hours of life-time
  • 2-year warranty


PICK UP & PHONE ENQUIRIES WELCOME


Specifications



BULL BAR:


CONSTRUCTION:

Material Steel
Bar thickness 2.5mm
Tubing diameter 63mm
Tubing thickness 2mm
Tabs 3 points (Antenna or light brackets)
Underbody protection plates YES
Bumper over-riders YES
Total weight 83 Kgs

COMPATIBILITY:
OE parking sensor YES
Headlight washer  -
Winch compatible YES
High lift jacking points YES x 2
Tow-points YES - 1700kgs x 2. Total 3400kgs using equaliser strap.

LIGHTING
LED fog lights YES
LED indicator/parker lights YES

SAFETY
Airbag compatible YES

INSTALLATION
Mounting hardware YES
Instructions YES



WINCH:


Single line rated pull: 14500LBS (6577KG)
Controls: Remote Switch
Gear Train: 3-Stage Planetary
Permanent Magnet: 6.0HP /4.5KW series Wound
Gear Rotation: 265:1
Brake: Automatic load-holding brake
Synthetic Rope: 26m
Remote Control: Included
Recommended Battery: 650CCA Minimum For Winching
Winch Dimensions: 530x150x200mm
Weight: 28KG




LED SPOT LIGHTS:


LED: Genuine CREE LED's
Lux Rating 1Lux @ 890m
Raw Lumen 20,000Lm per pair
Operating Voltage 10-30V DC
Waterproof Rate: IP 68
Color Temperature: 6000 Kelvin
Current Draw: 8.9A @ 13.5v
Waterproof Color: Black
Housing Material: Black Aluminum Diecast Housing
Mounting Bracket: Aluminium Firm Mount
Lens: PMMA Poly
Beam Type: Spot Beam
Life Span : 50,000 Hours
Dimensions: 9Inch
Operating Environment: -40 to + 50°
Weight: Approx. 8kg


KEY SPECIFICATIONS
SKU BB2-MT-18-P
Brand OCAM
Shipping Weight 65.000000kg
Shipping Width 0.600m
Shipping Height 0.900m
Shipping Length 2.000m
Shipping Cubic 1.080000000m3
PACKAGE CONTENT


Bull Bar

  • 1 x Steel bull bar
  • 1 x Winch mounting bracket
  • 2 x Fog lights, parkers and indicators sets
  • Complete set of underbody skid protection plates
  • 2 x Polyurethane protection bumpers
  • Full mounting & installation kit
  • Fitting instructions


AND / OR:



Electric Winch

  • 1 x 14500LBS Electric Winch
  • 2 x Wireless Remote Control
  • 1 Set Accessories
  • 1 x User Manual


AND / OR:


LED Lights:

  • 2 x 9 inch LED Driving Lights
  • 4 x Covers (2 Spot & 2 Flood)
