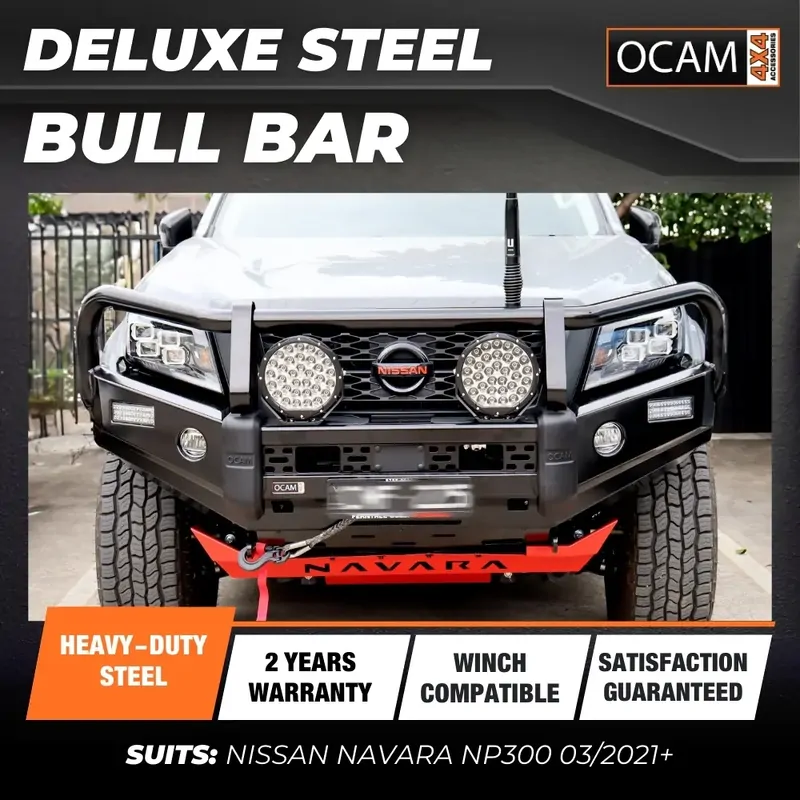

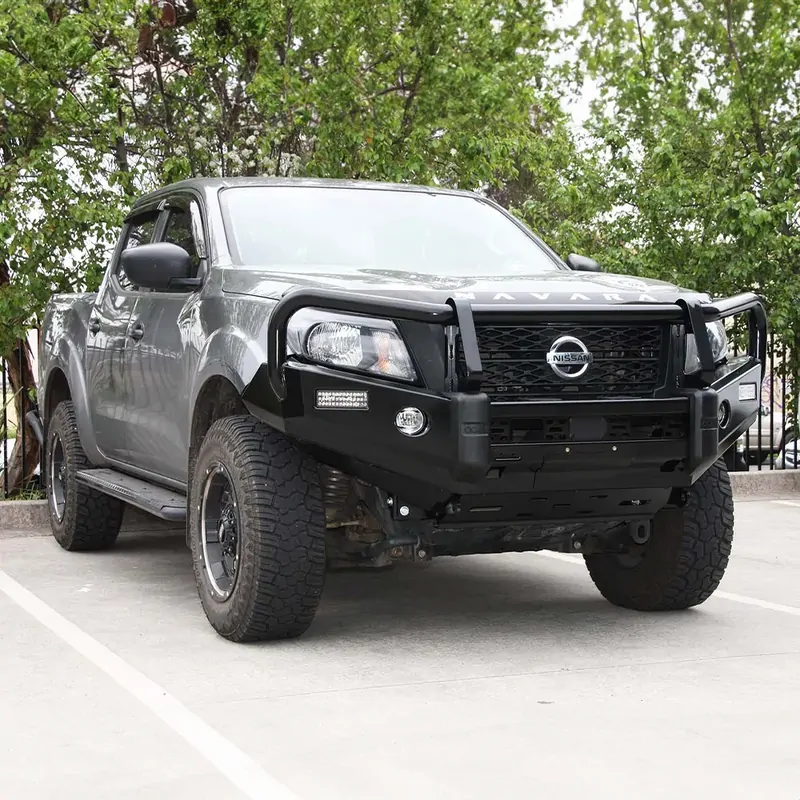

OCAM Deluxe Steel Bull Bar for Nissan Navara NP300 03/2021+ & OCAM 12K LBS Winch

OCAM Deluxe Steel Bull Bar for Nissan Navara NP300 03/2021+ & OCAM 12K LBS Winch

SKU: BB2-NP300-21-EWR1

RRP $2,978.00

NOW $2,103.75

Was $2,475.00

Sale Ends in
23:59 pm, 8 November 2024

FREQUENTLY BOUGHT WITH

Colour Paint Matching for Bull Bars. Plse confirm your colour code

$795.00

Description

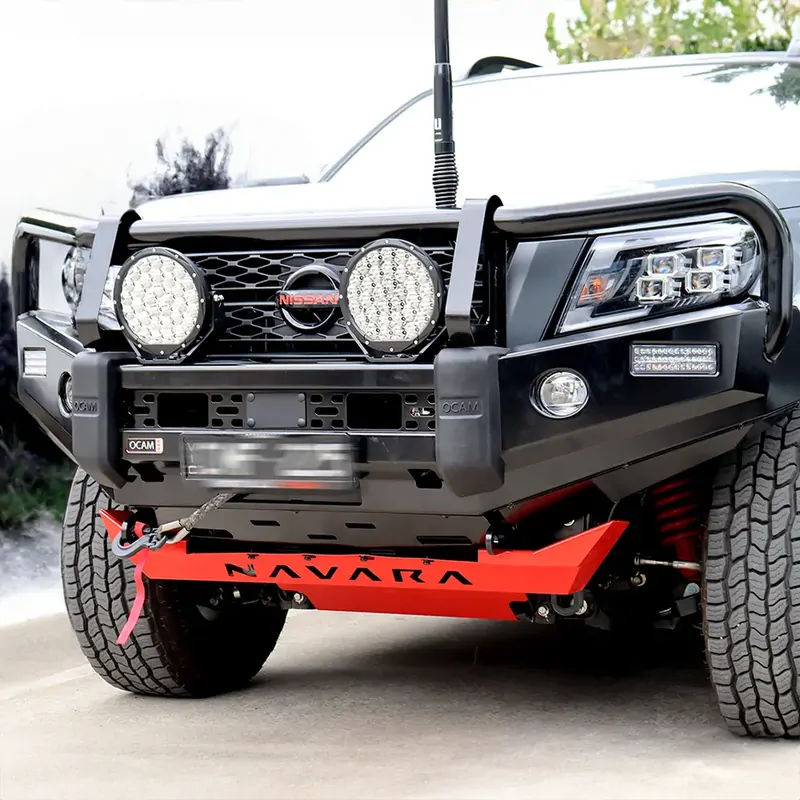

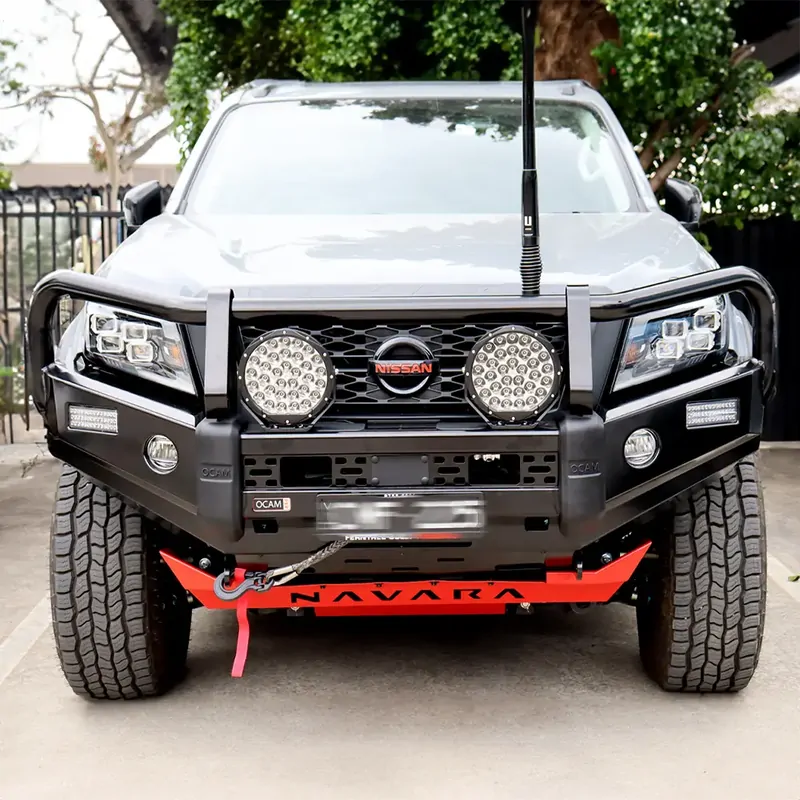

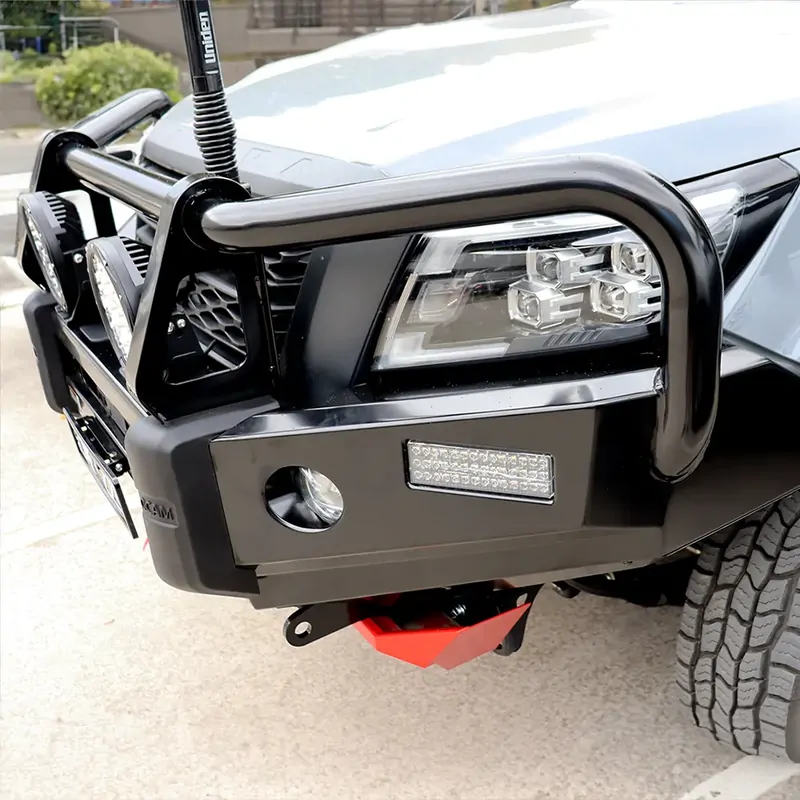

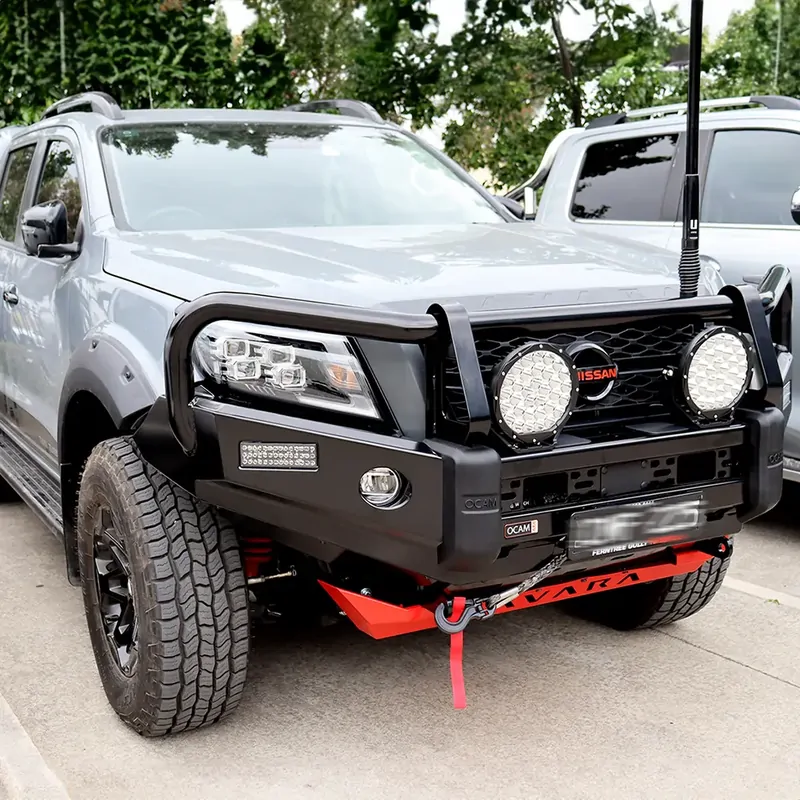

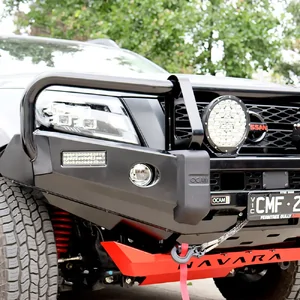

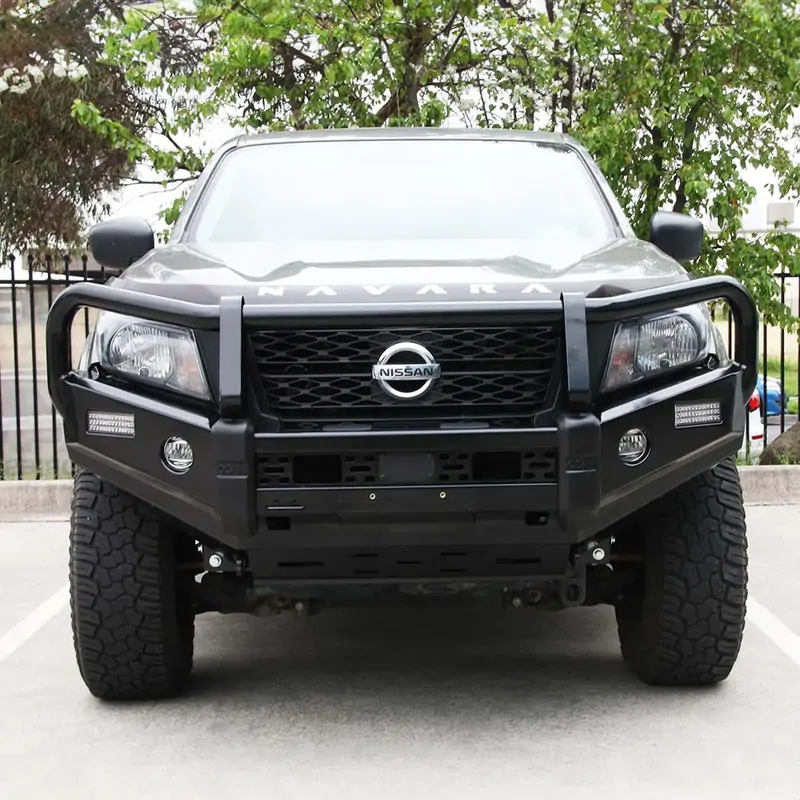

OCAM Deluxe Bull Bar for Nissan Navara NP300 03/2021+, Heavy Duty Steel ADR Compliant & OCAM 12000LBS Synthetic Rope Winch



WARRANTY - 2 YEARS


Are you looking to install a full-protection bull bar on your 4WD?  If so, good decision!!

With over 50 million kangaroos roaming across Australia (est. 2022), the reason is now bigger than ever. Installing a full protection bull bar to your 4WD not only makes your vehicle off-road capable, but it also makes driving so much safer, especially in country and rural areas.

In the event of an animal road strike, a bull bar offers vital protection. It means that most likely you'll be able to continue driving your 4WD after impact, because the vital components such as the radiator for your vehicle to operate, are protected from severe damage. Otherwise, you'll most likely be stranded, and in need of a tow.

A bull bar is also a rigid structure for mounting essential offroad accessories such as a winch, driving lights, and UHF antenna.

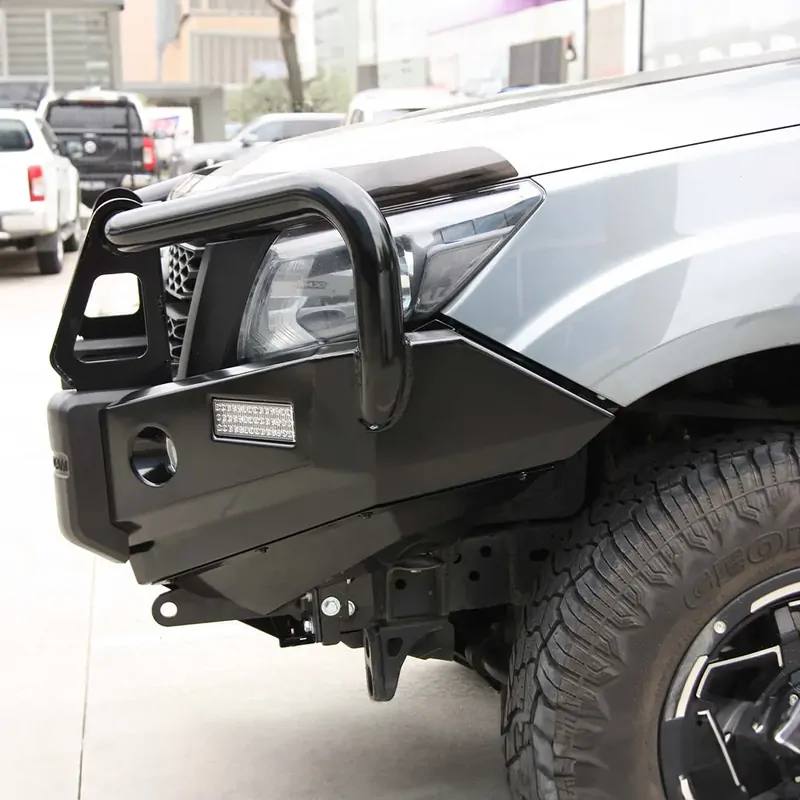

The OCAM Deluxe Bull Bar is a premium product. It is designed to match the vehicle's shape and lines so that it fits and protects perfectly and enhances the vehicle's appearance.



MANUFACTURING

The OCAM bull bars are manufactured overseas using quality materials and processes. Our appointed manufacturer is a fully-approved OEM facility, which produces a wide range of vehicle accessories for the global automotive market, including various major vehicle manufacturers. All aspects of the manufacturing process are quality controlled and maintained.



CRASH TESTING / ADR COMPLIANCE

The OCAM bull bars are crash tested in Australia and ADR compliant. The energy-absorbing system is a patent-pending design and is among the market-leading solutions. Our investment in crash testing and certifying our bull bars means you can rely on the OCAM bull bar for frontal protection to get you anywhere and home safely.



RECOVERY POINTS

The OCAM bull bars come with integrated factory recovery points which are rated to 3400kgs when used together with an equaliser strap. This extra benefit not only saves you on cost but also means there is no need to go out looking for recovery points to suit.



POWDER-COATING

In finishing, the OCAM bull bars go through a rigorous 4-stage powder coat process. It involves:

  1. Pre-treatment: The bull bar raw metal is cleaned and rinsed to remove all impurities. Any trace of material oil and rust is removed. It is then phosphatized, which is a metalworking process involving the use of phosphoric acid to create a protective layer over the metal.
  2. Cathodic epoxy electrocoating: This is the global benchmark for corrosion resistance and provides the bull bar with superior adhesion and corrosion protection. It covers every corner of the product.
  3. Prime Powder Coat: Fixes any imperfections on the surface, e.g., scratch marks, etc., and provides corrosion protection reinforcement for a long-lasting finish.
  4. Top powder coat: Completes the bull bar with a layer of Corrosion Protection ultra-reinforcement and an excellent smooth surface finish.



HOW STRONG ARE OCAM 4X4 BULL BARS?

With strength and reliability in mind, we’ve implemented a few design features to ensure you can have peace of mind when traveling throughout Australia. The bar uses a 63mm top tube and is 100% welded top and bottom through the 2.5mm plate bar. Reinforcement plates are used on the underside unlike many others to guarantee additional strength!




DELUXE VALUE

All OCAM Bull Bars are equipped with LED turn signals, parking, and daytime running lights for OEM replacement. The fog lights are LED and are included at no additional cost! They come with 3 x top tube mounts for all your additional accessories and 2 x high lift jack points. All OCAM bull bars are winch compatible and come with the number plate flip mount.




FEATURES:

  • Modern and market-leading energy absorber system (Patent-Pending)
  • Winch compatible - perfect for off-road use
  • Heavy-duty steel construction for optimum strength
  • Robot-welded for precision manufacturing

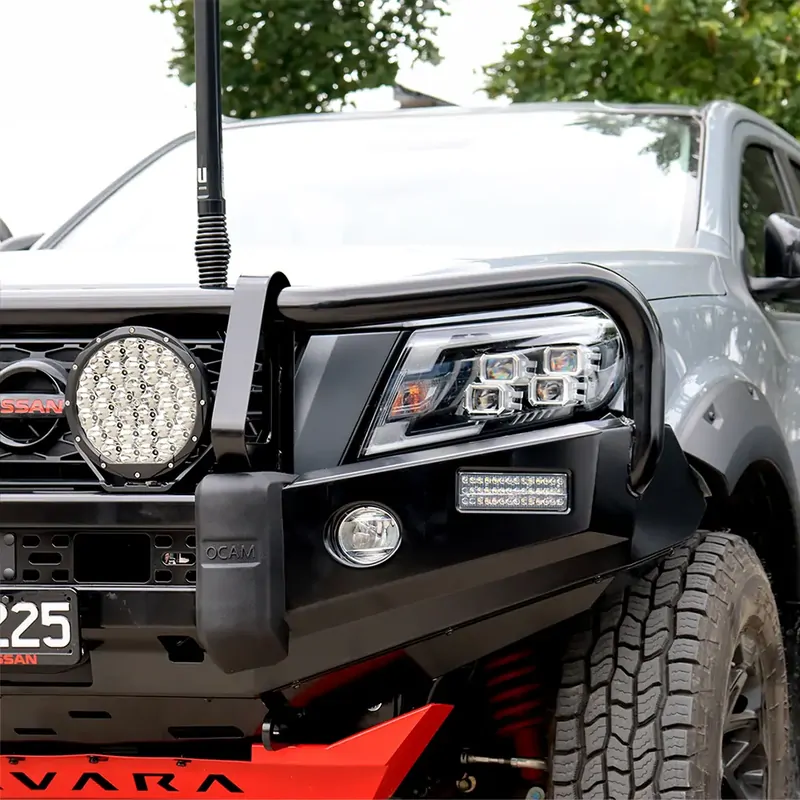

  • The latest design in LED's; fog lights with dual brightness options, parkers and modern indicators
  • SRS airbag tested and certified in Australia (ADR approved)
  • High-grade black e-powder coat for long-lasting protection against rust and ultimate-look finish

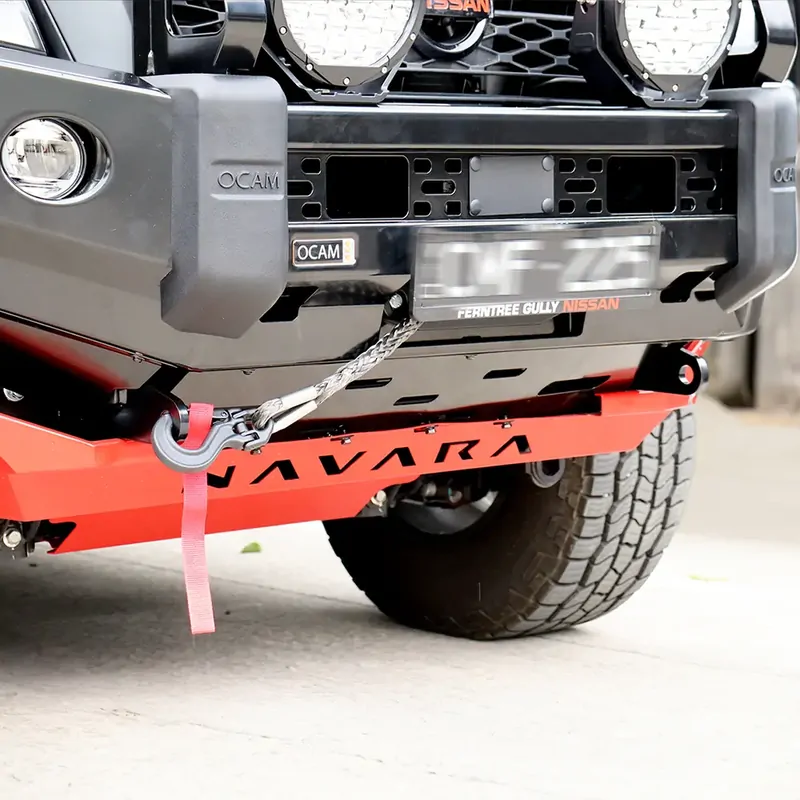

  • Underbody skid-protection plates
  • Polyurethane protection bumpers
  • 63mm top tube, with aerial / lighting mounting brackets
  • 2 x high lift jack points
  • 2 x recovery points, rated to 1700 kgs each. Total 3400 kgs using equaliser strap
  • Number-plate swivel bracket
  • Complete mounting kit with instructions.



FITTING

We offer a complete fitting service at all OCAM locations. Our dealer network across Australia is growing and we now offer a fitting service in various regions too. If you'd like a quote to include fitting, please be in touch. Just let us know your postcode, suburb, and which accessories you'd like fitted up. We'll confirm pricing for you asap.

* If you're based in an area where we don't have a fitting arrangement in place as yet, we welcome working with you to locate a suitable fitter.






15 August 2022
"Great value for money. Easy to fit and align, plenty of room for adjustment.  Fits great and good tough bit of gear for the price. Definitely recommend."
Grant F. VIC



2 December 2019
"Josh here, picked up the bullbar from you guys couple of days ago just finished the install went smoothly and looks great I've attached some photos cheers guys."

Josh D. VIC.


11 October 2019
"Great product and service - Purchased the bar at Sunshine Coast Expo and dealt with Daniel. He was great to deal with and very informative. Picked it up same day and fitted that weekend, was very straight forward to fit the bar and couldnt be happier with the end result. Would recommend to anyone looking for premium gear without the premium price.
Caleb C. QLD.



27 April 2019
"I bought my Amarok straight out of VW and I approached OCAM to fit my Bull Bar and wow what a difference it has made. The guys at OCAM gave me great service and did a professional job which is why I went there in the first place. Friendly reliable service and as a result I will be dealing with OCAM for further after market enhancements to my vehicle!"
Ekrem F. VIC

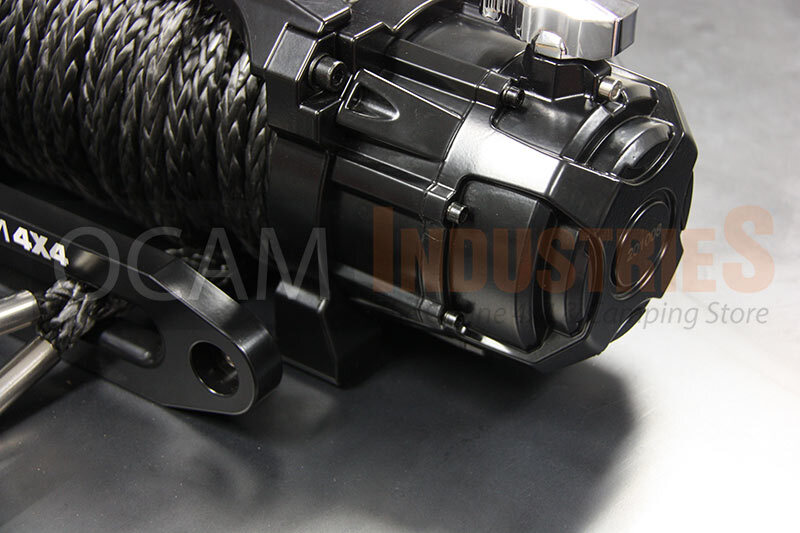

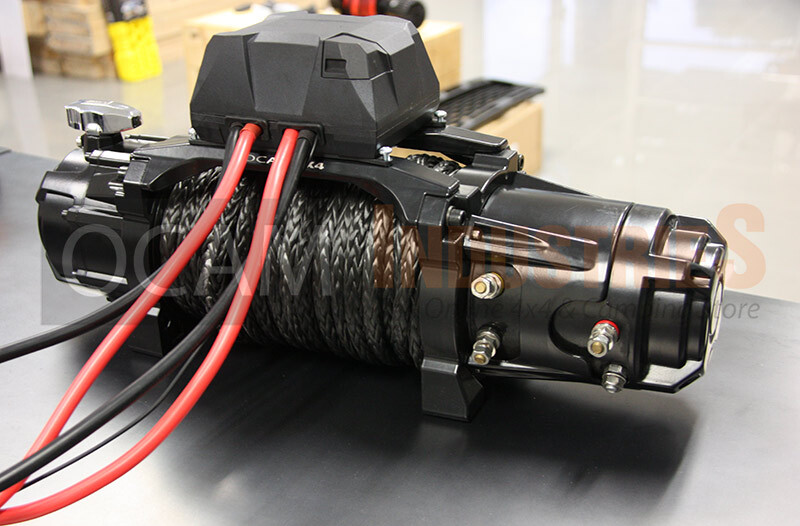

OCAM Premium Electric Winch (5443KGS / 12000LBS) 26M Synthetic Dyneema® SK-75 Rope Wireless Remote 4WD 12V


4-YEAR WARRANTY


The OCAM Premium Winch is loaded with a powerful 6.6 HP IP68 rated motor, heavy-duty casing and genuine Dyneema® SK-75 synthetic rope. The solenoid is IP-68 rated. All fitting screws are #304 stainless steel. All to ensure optimum operation.

Backed by a 4-year warranty, this premium winch offers seriously reliable pulling power and suits most winch compatible bull bars available in Australia.



Product Highlights:
  • Tough on and off-road ability.
  • Will guide you through tough swamp conditions and pull you out of danger
  • Heavy-duty resistance to harsh weather, reliability against corrosion and moisture
  • Pulling power to drag your vehicle out!
  • Dual remote modes; wired and wireless function!





Why choose genuine Dyneema® SK-75 Syntethic Rope over any other brand?

  • Manufactured by DSM in the Netherlands, it is the most reliable, safest and longest-lasting rope available
  • It's "high-modulus" synthetic fibres are scientifically engineered to overcome the 4 major challenges of winch rope; Abrasion, Bending Fatigue, Compression, Creep Fatigue:
    • ​Abrasion: Running through a fairlead causes abrasion and degrades the fibres. Over a period of time, the fibres will eventually break. A rope made with Dyneema® SK-75 fibres has over 4X longer abrasion lifetime compared to a rope made with generic HMPE and far more than polyester
    • Bending fatigue happens each time a rope is flexed under tension. The fibres of a rope will stress when running through a fairlead. With Dyneema rope, bending causes less damage and the number of cycles before failure is far greater than steel or any other synthetic fibre.
    • Compression Fatigue happens when a rope becomes slack and the fibres actually compress. The molecular properties engineered into Dyneema® SK-75 prevent compression fatigue.  Ropes with Dyneema are not affected by compression fatigue.
    • Creep Fatigue - all synthetic ropes will elongate under load and over time at higher temperatures. When combined with abrasion, creep fatigue leads to failure and breakage. Dyneema® SK-75 has 2-4X longer creep lifetime than generic HMPE.
  • Dyneema is the worlds strongest fibre and the most trusted and safest brand for towing ropes. "Feel secure only with Dyneema".



Why choose Dyneema® SK-75 synthetic rope over steel cable?

  • Over 1.5X stronger
  • Less than 15% of the weight of steel
  • At least 7X stronger when comparing weight to weight
  • It floats in water
  • The UHMwPE (Ultra-High Molecular weight Polyethylene) fibres are stronger than steel with high abrasion and friction-resistance.
  • Should the rope break during recovery, synthetic is much safer. Unless a steel cable is dampened, the build-up of force will inevitably spring back on breaking. Whereas, the "very low" stretch properties of Dyneema® SK-75 means it will just fall rather than spring back. Synthetic rope can be respliced and recovery can continue, which is impossible with steel.
  • It reduces the weight of your vehicle's front-end by at least 10KG




PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received.


Specifications



BULL BAR



CONSTRUCTION:

Material Steel
Bar thickness 2.5mm
Tubing diameter 63mm
Tubing thickness 2mm
Tabs 3 points (Antenna or light brackets)
Underbody protection plates YES
Bumper over-riders YES

COMPATABILITY:
OE parking sensor YES
Headlight washer  -
Winch compatible YES
High lift jacking points YES x 2
Tow-points YES - 1700kgs x 2. Total 3400kgs using equaliser strap.

LIGHTING
LED fog lights YES
LED indicator/parker lights YES

SAFETY
Airbag compatible YES

INSTALLATION
Mounting hardware YES
Instructions YES







WINCH



Rated Line Pull 12000LBS (5443KG)
Motor 6.6 HP Series Wound (12V), IP68 Rated
Colour & Finish Black, Powder Coated
Remote Control Handheld 3.8M Length + Wireless Function
Battery Leads 2 x 1.8M Heavy-Duty Leads
Gear Train 3-Stage Planetary
Gear Reduction Ratio 216:1
Brake Action Automatic (In The Drum)
Drum Size Diameter 63.5mm (2.5"), Length 244mm (8.8")
Synthetic Rope Dyneema® SK-75, 10mm x 26M, Dark Grey

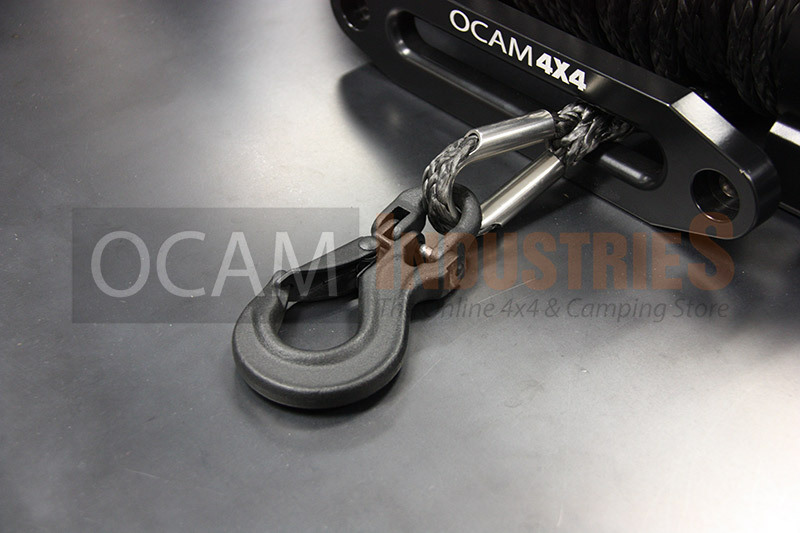

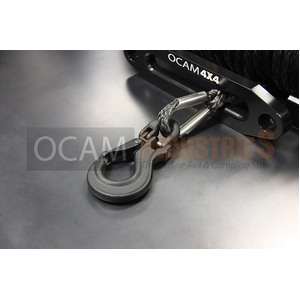

Hook 8/10" Black Powder Coated
Fairlead Hawse Black Aluminium
Overall Dimensions 540 x 160 x 218mm (21.3x6.3x6.6")
Mounting Bolt Pattern 254 x 114.3mm (10x4.5")
Net Weight 27KG
Gross Weight 28.5KG (Includes Packaging)
Vehicle Battery Requirement    650CCA Minimum Recommended For Winching
Warranty 4 Years



Line Pull (LBS/KGS) Line Speed M/MIN (F/PM)  Motor (AMPS)
0 6.8 (22.3) 74
3000 (1361) 3.1 (10.2) 150
6000 (2720) 2.68 (8.8) 240
9000 (4083) 1.89 (6.2) 260
12000 (5443) 1.46 (4.8) 350

Layer Rated Line Pull (LBS/KGS) Total Rope On Drum (M/FT)
1 12000 (5443) 5.4 (16.25)
2 9522 (4328) 11.2 (36.7)
3 7892 (3587) 18.8 (61.5)
4 6738 (3063) 28 (91.8)
KEY SPECIFICATIONS
SKU BB2-NP300-21-EWR1
Brand OCAM
Shipping Weight 50.000000kg
Shipping Width 0.600m
Shipping Height 0.900m
Shipping Length 2.000m
Shipping Cubic 1.080000000m3
PACKAGE CONTENT


Bull Bar

  • 1 x Steel bull bar

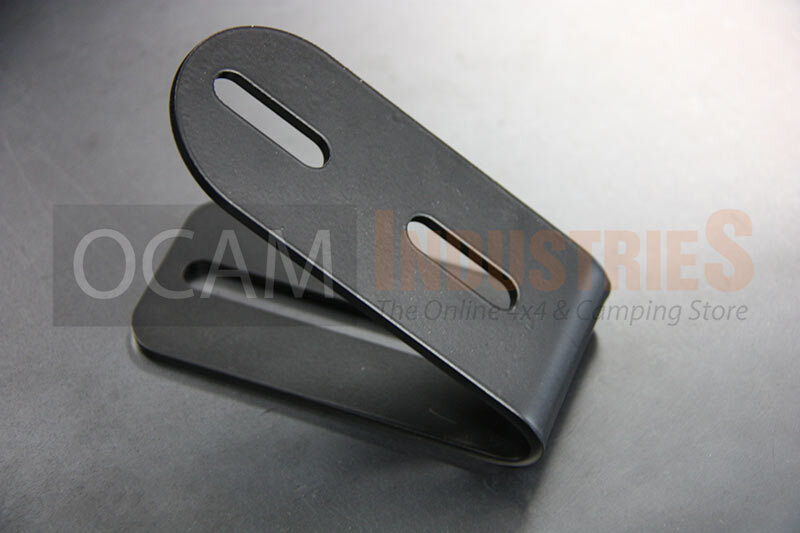

  • 1 x Winch mounting bracket
  • 2 x LED Fog lights, parkers and indicators sets
  • Complete set of underbody skid protection plates
  • 2 x Polyurethane protection bumpers
  • Full mounting & installation kit
  • Fitting instructions





Electric Winch

  • 1 x 12000LBS Electric Winch
  • 1 x Wireless Remote Control
  • 1 Set Accessories
  • 1 x User Manual
