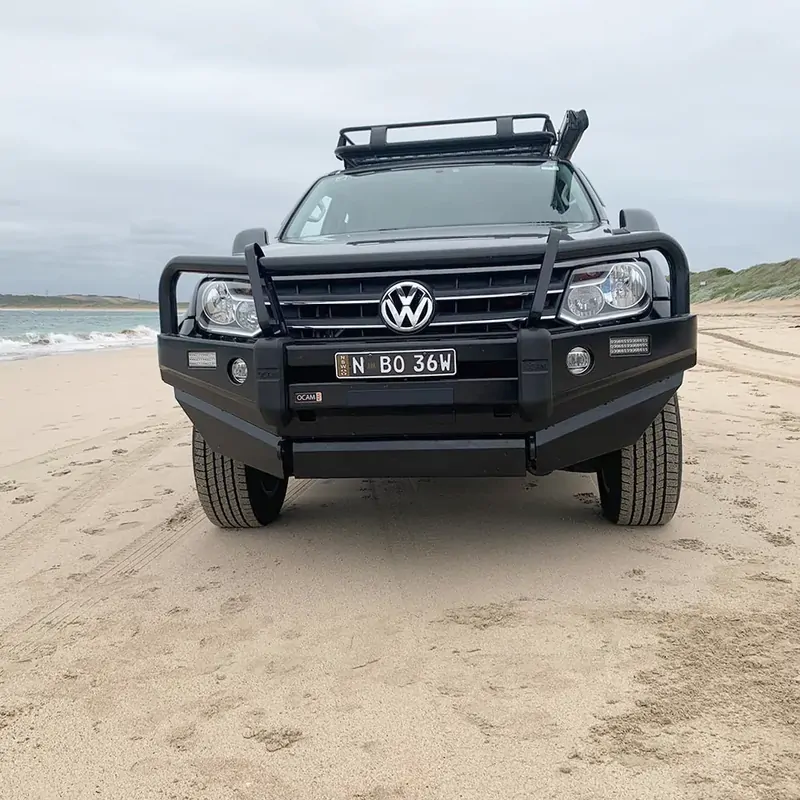

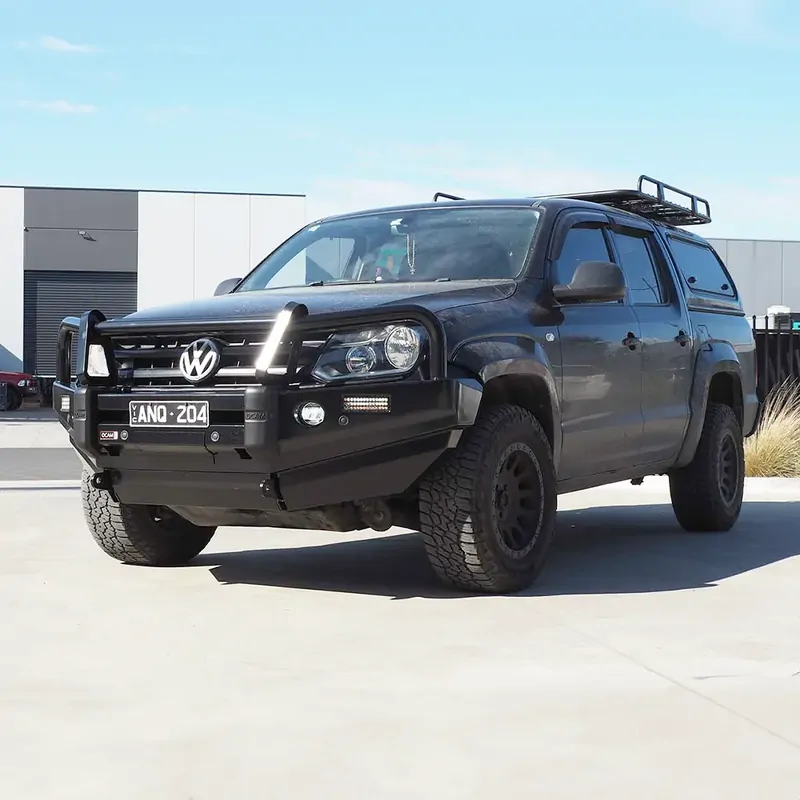

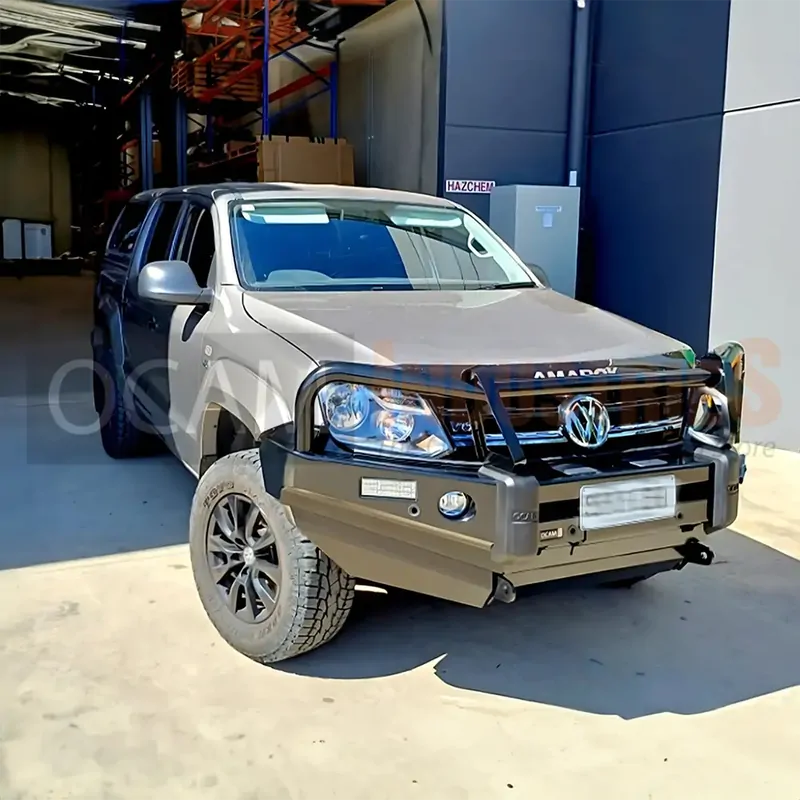

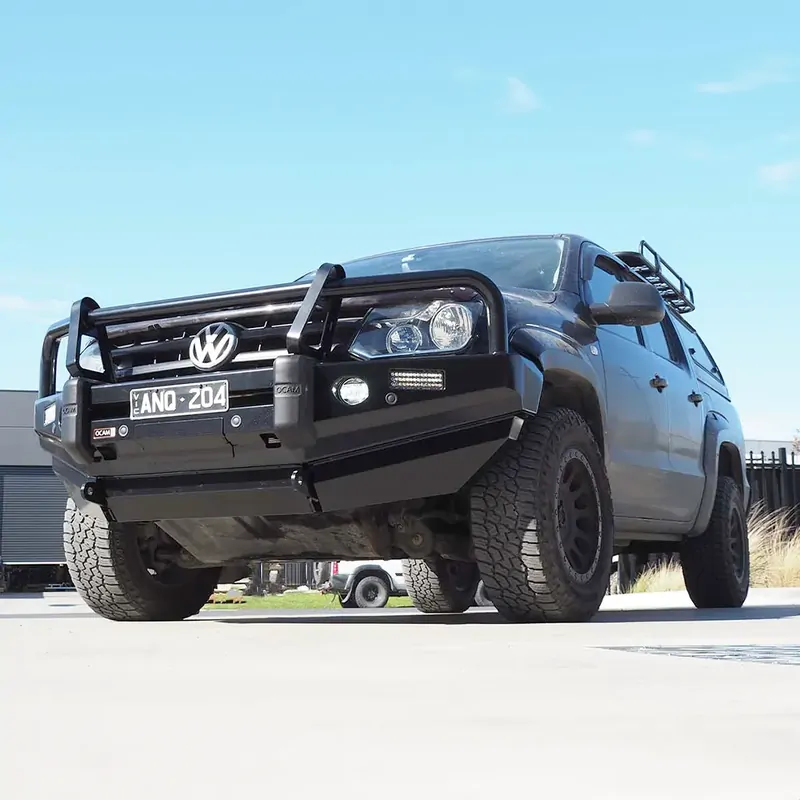

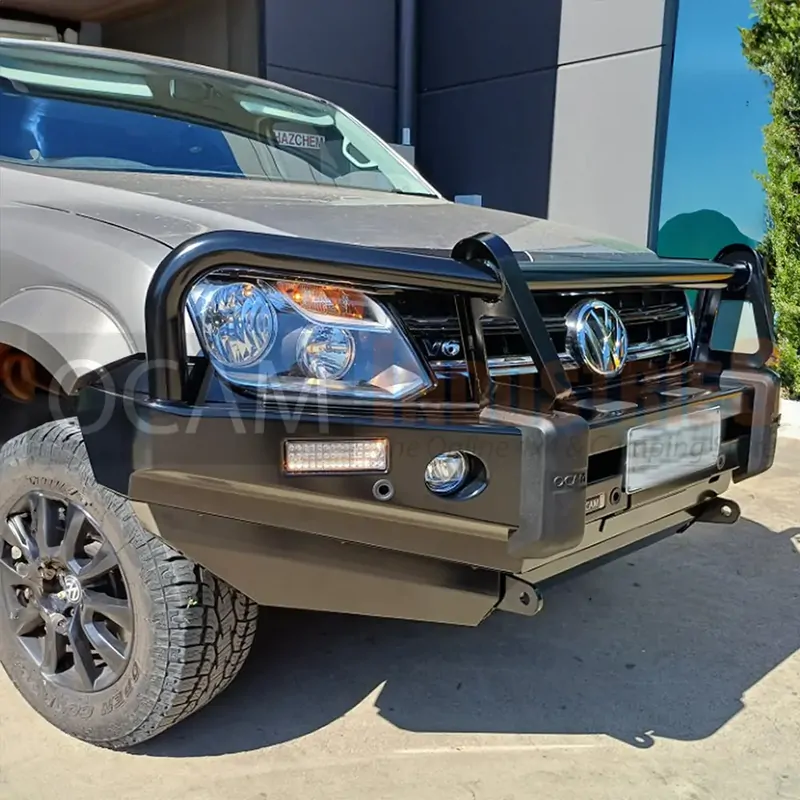

OCAM Deluxe Bull Bar For Volkswagen Amarok 01/2010-04/2023, 9.5K LBS Synthetic Rope Winch & 9' LED Spot Lights
WARRANTY - 2 YEARS
Are you looking to install a full-protection bull bar on your 4WD? If so, good decision!!
With over 50 million kangaroos roaming across Australia (est. 2022), the reason is now bigger than ever. Installing a full protection bull bar to your 4WD not only makes your vehicle off-road capable, but it also makes driving so much safer, especially in country and rural areas.
In the event of an animal road strike, a bull bar offers vital protection. It means that most likely you'll be able to continue driving your 4WD after impact, because the vital components such as the radiator for your vehicle to operate, are protected from severe damage. Otherwise, you'll most likely be stranded, and in need of a tow.
A bull bar is also a rigid structure for mounting essential offroad accessories such as a winch, driving lights, and UHF antenna.
The OCAM Deluxe Bull Bar is a premium product. It is designed to match the vehicle's shape and lines so that it fits and protects perfectly and enhances the vehicle's appearance.
MANUFACTURING
The OCAM bull bars are manufactured overseas using quality materials and processes. Our appointed manufacturer is a fully-approved OEM facility, which produces a wide range of vehicle accessories for the global automotive market, including various major vehicle manufacturers. All aspects of the manufacturing process are quality controlled and maintained.
CRASH TESTING / ADR COMPLIANCE
The OCAM bull bars are crash tested in Australia and ADR compliant. The energy-absorbing system is a patent-pending design and is among the market-leading solutions. Our investment in crash testing and certifying our bull bars means you can rely on the OCAM bull bar for frontal protection to get you anywhere and home safely.
RECOVERY POINTS
The OCAM bull bars come with integrated factory recovery points which are rated to 3400kgs when used together with an equaliser strap. This extra benefit not only saves you on cost but also means there is no need to go out looking for recovery points to suit.
POWDER-COATING
In finishing, the OCAM bull bars go through a rigorous 4-stage powder coat process. It involves:
Pre-treatment: The bull bar raw metal is cleaned and rinsed to remove all impurities. Any trace of material oil and rust is removed. It is then phosphatized, which is a metalworking process involving the use of phosphoric acid to create a protective layer over the metal.
Cathodic epoxy electrocoating: This is the global benchmark for corrosion resistance and provides the bull bar with superior adhesion and corrosion protection. It covers every corner of the product.
Prime Powder Coat: Fixes any imperfections on the surface, e.g., scratch marks, etc., and provides corrosion protection reinforcement for a long-lasting finish.
Top powder coat: Completes the bull bar with a layer of Corrosion Protection ultra-reinforcement and an excellent smooth surface finish.
HOW STRONG ARE OCAM 4X4 BULL BARS?
With strength and reliability in mind, we’ve implemented a few design features to ensure you can have peace of mind when traveling throughout Australia. The bar uses a 63mm top tube and is 100% welded top and bottom through the 2.5mm plate bar. Reinforcement plates are used on the underside unlike many others to guarantee additional strength!
DELUXE VALUE
All OCAM Bull Bars are equipped with LED turn signals, parking, and daytime running lights for OEM replacement. The fog lights are LED and are included at no additional cost! They come with 3 x top tube mounts for all your additional accessories and 2 x high lift jack points. All OCAM bull bars are winch compatible and come with the number plate flip mount.
FEATURES:
Modern and market-leading energy absorber system (Patent-Pending)
Winch compatible - perfect for off-road use
Heavy-duty steel construction for optimum strength
Robot-welded for precision manufacturing
The latest design in LED's; fog lights with dual brightness options, parkers and modern indicators
SRS airbag tested and certified in Australia (ADR approved)
High-grade black e-powder coat for long-lasting protection against rust and ultimate-look finish
Underbody skid-protection plates
Polyurethane protection bumpers

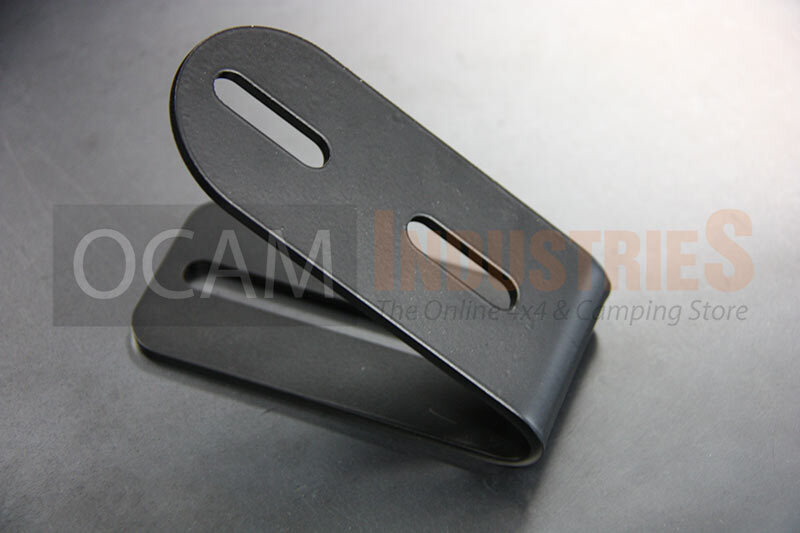

63mm top tube, with aerial / lighting mounting brackets
2 x high lift jack points
2 x recovery points, rated to 1700 kgs each. Total 3400 kgs using equaliser strap
Number-plate swivel bracket
Complete mounting kit with instructions.
FITTING
We offer a complete fitting service at all OCAM locations. Our dealer network across Australia is growing and we now offer a fitting service in various regions too. If you'd like a quote to include fitting, please be in touch. Just let us know your postcode, suburb, and which accessories you'd like fitted up. We'll confirm pricing for you asap.
* If you're based in an area where we don't have a fitting arrangement in place as yet, we welcome working with you to locate a suitable fitter.
3.0L (V6) vehicles - we will supply you with sensor seats (See the video fitting guide on this page)
2.0L (4 cyl) vehicles, we recommend you use the factory sensor seats which are located inside the bumper bar. Cut them out and use 2-sided tape to stick them onto the inside of the bull bar. Please feel free to contact our team if you have any questions.
The bash plates have been redesigned (July 2021) for a more aesthetically pleasing finish and slightly increased ground clearance. This update requires 180mm of the original protection bar to be cut from each end for fitting. In case of any concerns about cutting, please note that the bull bar provides a significantly higher level of protection overall and the majority of the original protection bar is maintained.
Colour-coding is available at an additional cost. Please contact our team for details.
11 October 2019 "Great product and service - Purchased the bar at Sunshine Coast Expo and dealt with Daniel. He was great to deal with and very informative. Picked it up same day and fitted that weekend, was very straight forward to fit the bar and couldn’t be happier with the end result. Would recommend to anyone looking for premium gear without the premium price." Caleb C. QLD.
27 April 2019 "I bought my Amarok straight out of VW and I approached OCAM to fit my Bull Bar and wow what a difference it has made. The guys at OCAM gave me great service and did a professional job which is why I went there in the first place. Friendly reliable service and as a result I will be dealing with OCAM for further after market enhancements to my vehicle!" Ekrem F. VIC

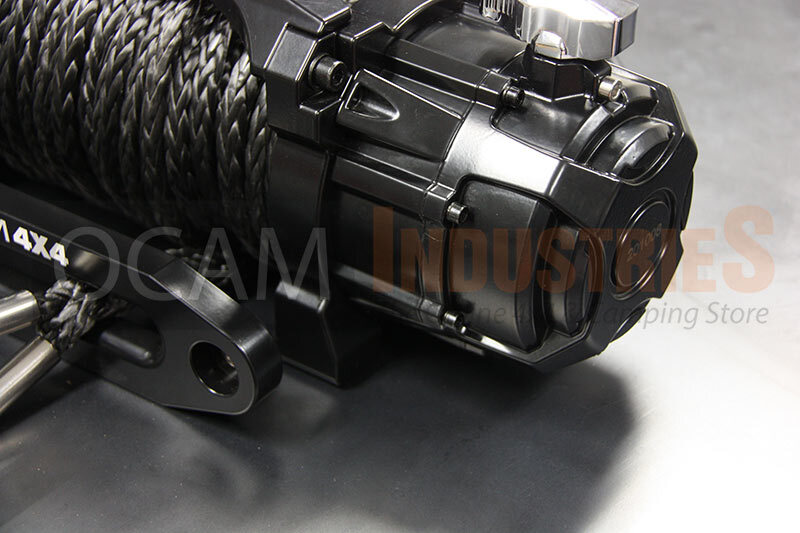

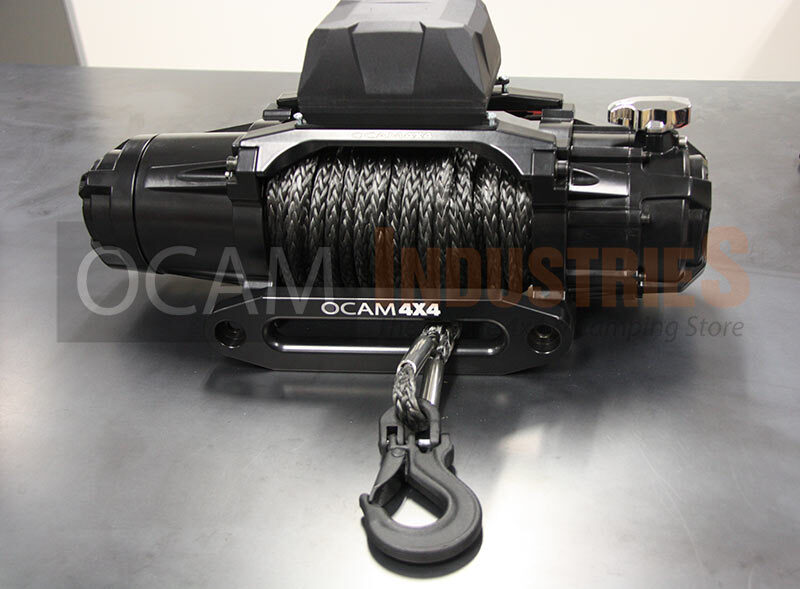

The OCAM Premium Winch is loaded with a powerful 6.6 HP IP68 rated motor, heavy-duty casing and genuine Dyneema® SK-75 synthetic rope. The solenoid is IP-68 rated. All fitting screws are #304 stainless steel. All to ensure optimum operation.
Backed by a 4-year warranty, this premium winch offers seriously reliable pulling power and suits most winch compatible bull bars available in Australia.
Product Highlights:
Tough on and off-road ability.
Will guide you through tough swamp conditions and pull you out of danger
Heavy-duty resistance to harsh weather, reliability against corrosion and moisture
Pulling power to drag your vehicle out!
Dual remote modes; wired and wireless function!
Why choose genuine Dyneema® SK-75 Syntethic Rope over any other brand?
Manufactured by DSM in the Netherlands, it is the most reliable, safest and longest-lasting rope available
It's "high-modulus" synthetic fibres are scientifically engineered to overcome the 4 major challenges of winch rope; Abrasion, Bending Fatigue, Compression, Creep Fatigue:
Abrasion: Running through a fairlead causes abrasion and degrades the fibres. Over a period of time, the fibres will eventually break. A rope made with Dyneema® SK-75 fibres has over 4X longer abrasion lifetime compared to a rope made with generic HMPE and far more than polyester
Bending fatigue happens each time a rope is flexed under tension. The fibres of a rope will stress when running through a fairlead. With Dyneema rope, bending causes less damage and the number of cycles before failure is far greater than steel or any other synthetic fibre.
Compression Fatigue happens when a rope becomes slack and the fibres actually compress. The molecular properties engineered into Dyneema® SK-75 prevent compression fatigue. Ropes with Dyneema are not affected by compression fatigue.
Creep Fatigue - all synthetic ropes will elongate under load and over time at higher temperatures. When combined with abrasion, creep fatigue leads to failure and breakage. Dyneema® SK-75 has 2-4X longer creep lifetime than generic HMPE.
Dyneema is the worlds strongest fibre and the most trusted and safest brand for towing ropes. "Feel secure only with Dyneema".
Why choose Dyneema® SK-75 synthetic rope over steel cable?
Over 1.5X stronger
Less than 15% of the weight of steel
At least 7X stronger when comparing weight to weight
It floats in water
The UHMwPE (Ultra-High Molecular weight Polyethylene) fibres are stronger than steel with high abrasion and friction-resistance.
Should the rope break during recovery, synthetic is much safer. Unless a steel cable is dampened, the build-up of force will inevitably spring back on breaking. Whereas, the "very low" stretch properties of Dyneema® SK-75 means it will just fall rather than spring back. Synthetic rope can be respliced and recovery can continue, which is impossible with steel.
It reduces the weight of your vehicle's front-end by at least 10KG

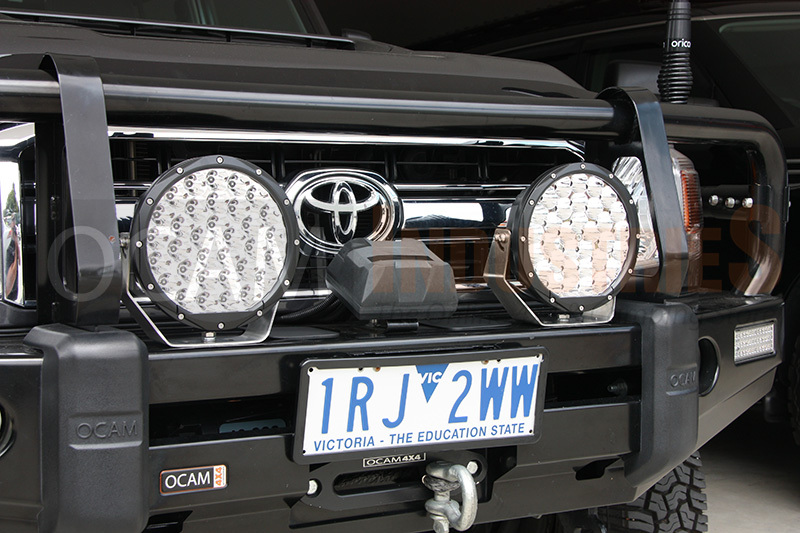

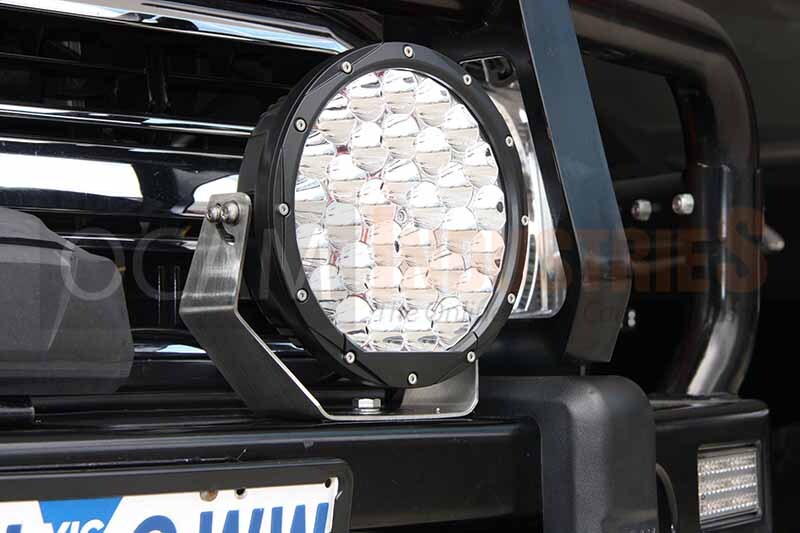

OCAM 4x4 Illuminate V2 9” LED driving lights 180W Pair
OCAM Illuminate series 9” LED spotlights are the answer to the dark situations you might find yourself in whilst adventuring.
With a sleek no screw design that’s built tough to withstand any harsh Australian conditions, these spotlights can light the way. Rain, hail, mud, snow our lights are rigorously tested in advanced laboratories to simulate every condition you could throw at it. With our special design to give it an IP68 and IP69 waterproof and dustproof rating, you can go swimming 1m deep for up to 60 minutes.
36 Quality 5W OSRAM LEDs are used in the chipset with a quality chipset board design to ensure 50,000-hours LED lifespan with solid-state technology.
With a 2183M distance of light throw design, we ensure that the Illuminate series gets the job done.
The slimline design is sure to fit most applications. Being 12V and 24V, it is possible to be used on all cars and trucks.
OCAM 4x4 Illuminate 9” LED driving lights – you get performance at an affordable price!
BEAM PATTERN: COMBO
PICK UP & PHONE ENQUIRIES WELCOME
Despatched within 24hrs of payment being received.
Specifications
BULL BAR:
CONSTRUCTION:
Material
Steel
Bar thickness
2.5mm
Tubing diameter
63mm
Tubing thickness
2mm
Tabs
3 points (Antenna or light brackets)
Underbody protection plates
YES
Bumper over-riders
YES
Total weight
87 Kgs
COMPATABILITY:
OE parking sensor
YES
Headlight washer
-
Winch compatible
YES
High lift jacking points
YES x 2
Tow-points
YES - 1700kgs x 2. Total 3400kgs using equaliser strap.
LIGHTING
LED fog lights
YES
LED indicator/parker lights
YES
SAFETY
Airbag compatible
YES
INSTALLATION
Mounting hardware
YES
Instructions
YES
WINCH:
Rated Line Pull:
9500LBS (4307KG)
Motor:
7 HP Series Wound (12V), High Speed, IP68 Rated
Clutch (free spooling):
Sliding Ring Gear
Colour & Finish:
Black, Powder Coated
Remote Control:
Handheld 3.8M Length + Wireless Function
Battery Leads:
2 x 1.8M Heavy-Duty Leads
Gear Train:
3-Stage Planetary
Gear Reduction Ratio:
150:1
Braking Action:
Automatic (In The Drum)
Drum Size:
Diameter 63.5mm (2.5"), Length 228mm (9")
Synthetic Rope:
Dyneema® SK-75, 9.5mm x 26M, Dark Grey
Hook:
8/10" Black Powder Coated
Fairlead:
Hawse Black Aluminium
Overall Dimensions:
540 x 160 x 218mm (21.3x6.3x6.6")
Mounting Bolt Pattern:
254 x 114.3mm (10x4.5")
Battery Leads:
1.8m long
Net Weight:
27KG
Gross Weight:
28.5KG (Includes Packaging)
Vehicle Battery Requirement:
650CCA Minimum Recommended For Winching
Warranty:
4 Years
Line Pull (LBS/KGS)
Line Speed M/MIN (F/PM)
Motor (AMPS)
0
20 (65.6)
60
2375 (1079)
5.1 (16.7)
186
4750 (2159)
3.2 (10.5)
265
7125 (3238)
2.5 (8.2)
355
9500 (4310)
1.7 (5.6)
430
Layer
Rated Line Pull (LBS/KGS)
Total Rope On Drum (M/FT)
1
9500 (4310)
5.57 (18.27)
2
7716 (3507)
12.44 (40.79)
3
6496 (2953)
20.5 (67.5)
4
5609 (2549)
28 (92)
LED LIGHTS:
Osram-Cree A Grade Chip 5W x 36
OCAM lighting Optical design
Waterproof: IP68 & IP69K
Deutsch waterproof connector
DuPont painting
Aluminum housing
Patent Breather
Operating Temp: -40 ~ + 145 deg
50,000+ hours average life span
5 years of continuous use
Pass CE, RoHS, UV, Vibration,
Anti-interference, Salt fog, High&low
temperature, drop ball impact etc.
9-36V
KEY SPECIFICATIONS
SKU
BB2-Amarok-EWR2-LED
Brand
OCAM
Shipping Weight
117.000000kg
Shipping Width
0.600m
Shipping Height
0.900m
Shipping Length
2.000m
Shipping Cubic
1.080000000m3
PACKAGE CONTENT
Bull Bar
1 x Steel bull bar
1 x Winch mounting bracket
2 x Fog lights, parkers and indicators sets
Complete set of underbody skid protection plates
2 x Polyurethane protection bumpers
Full mounting & installation kit
Fitting instructions
Electric Winch
1 x 9500LBS Electric Winch With Dyneema® SK-75 Rope
1 x Control Box + Bracket

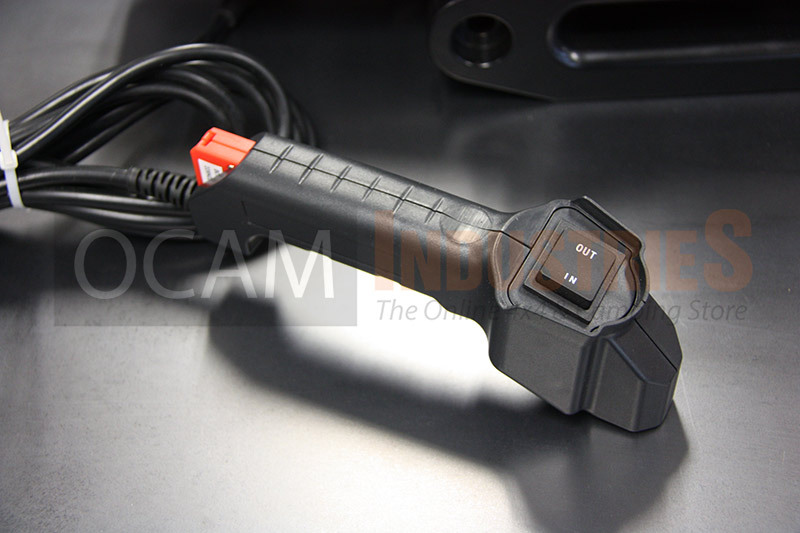

1 x Wired Handheld Remote
1 x Wireless Remote with LED
1 Set Accessories
1 x User Manual
LED Lights
2 x 9 inch LED Driving Lights
Mounting Brackets & Hardware
