OCAM Premium Electric Winch 12000LBS 26M Synthetic Dyneema® SK-75 Wireless Remote 4WD 12V

OCAM Premium Electric Winch 12000LBS 26M Synthetic Dyneema® SK-75 Wireless Remote 4WD 12V

SKU: EWR-OCAM-12000

group_id: 1
RRP $979.00

$879.00

FREQUENTLY BOUGHT WITH

OCAM Electric Winch Wired Remote Control Plug Extension, 700mm

$29.00

Description

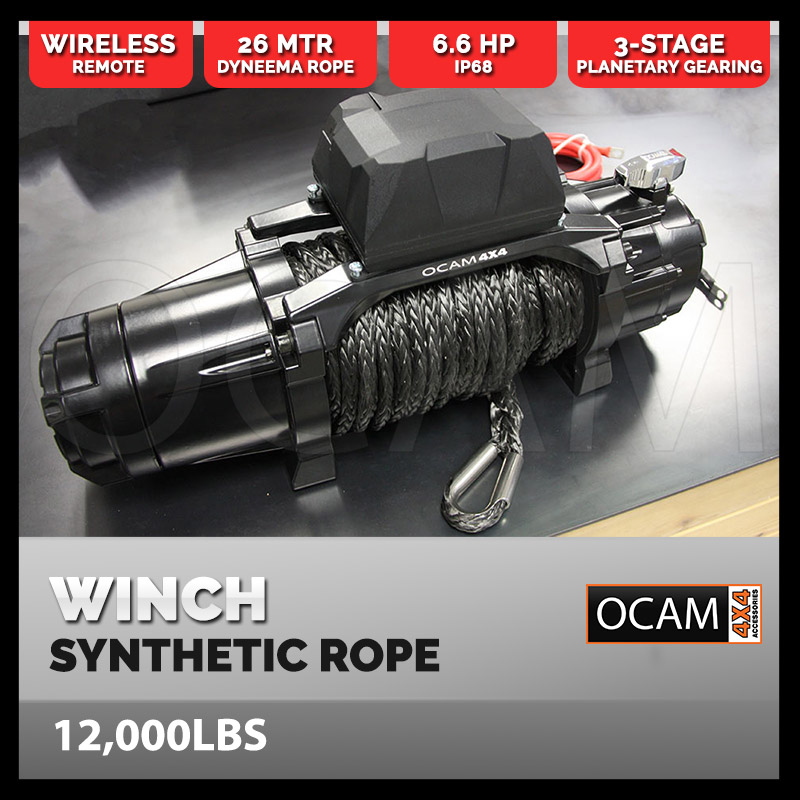

OCAM Premium Electric Winch (5443KGS / 12000LBS) 26M Synthetic Dyneema® SK-75 Rope Wireless Remote Truck 4WD 12V



4-YEAR WARRANTY

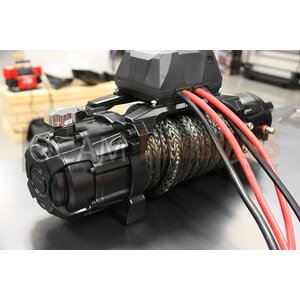

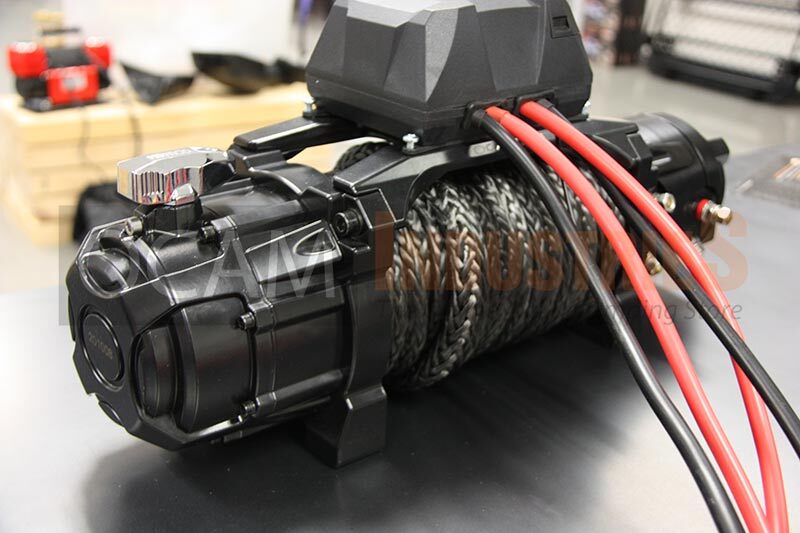

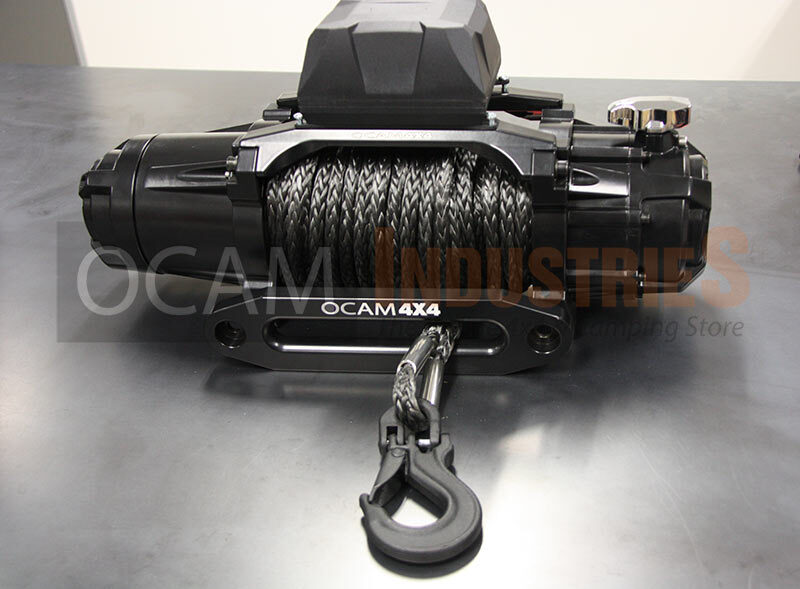

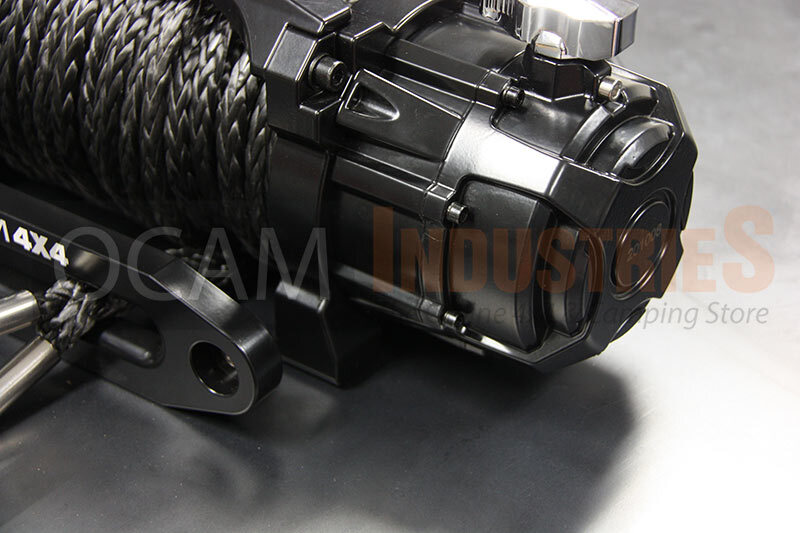

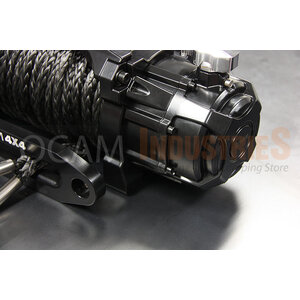

The OCAM Premium Winch is loaded with a powerful 6.6 HP IP68 rated motor, heavy-duty casing and genuine Dyneema® SK-75 synthetic rope. The solenoid is IP-68 rated. All fitting screws are #304 stainless steel. All to ensure optimum operation.

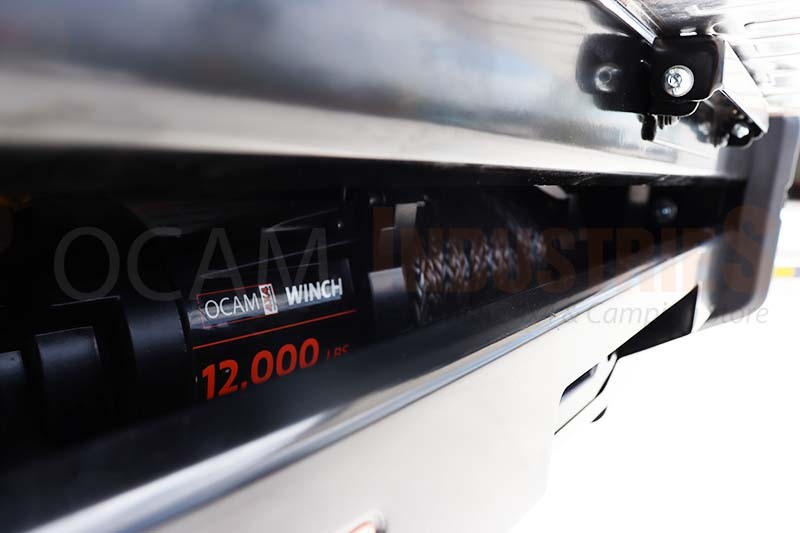

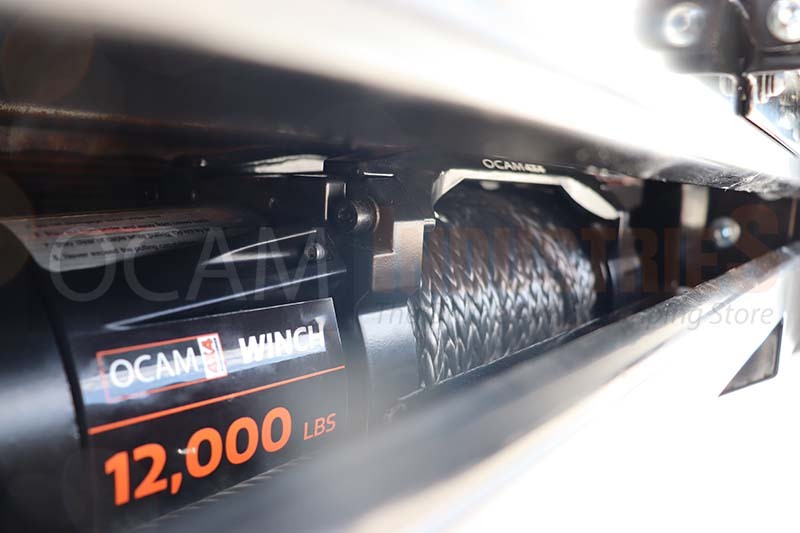

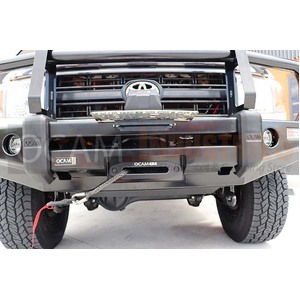

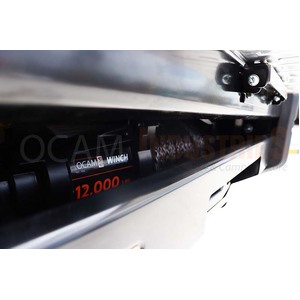

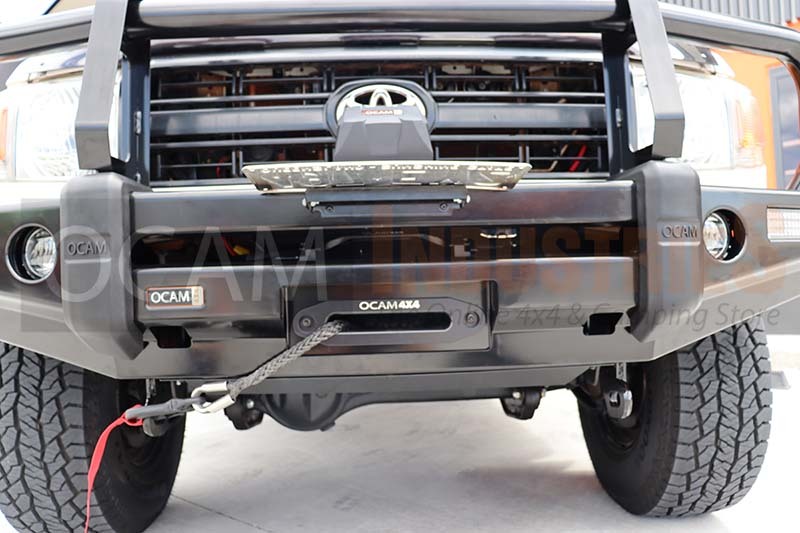

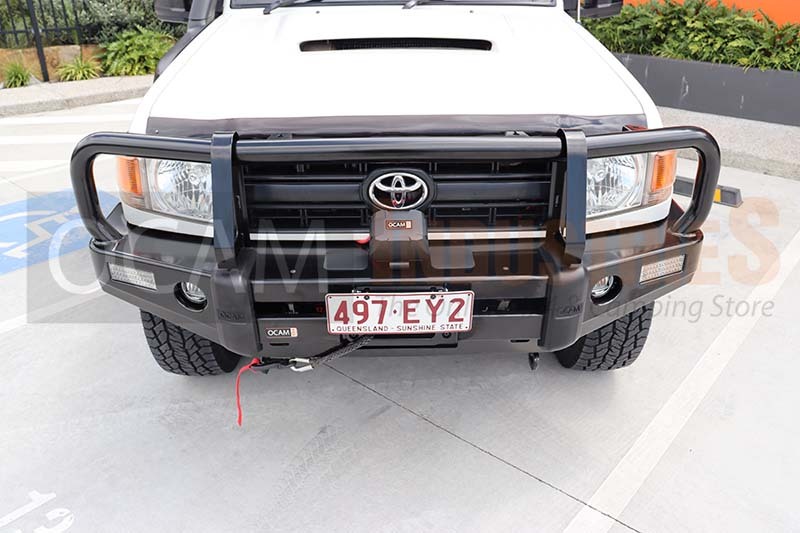

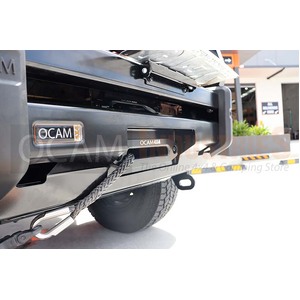

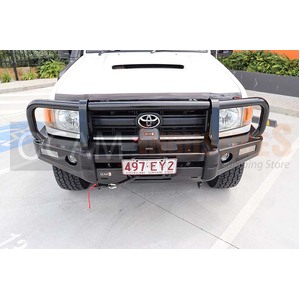

Backed by a 4-year warranty, this premium winch offers seriously reliable pulling power and suits most winch compatible bull bars available in Australia.



Product Highlights:
  • Tough on and off-road ability.
  • Will guide you through tough swamp conditions and pull you out of danger
  • Heavy-duty resistance to harsh weather, reliability against corrosion and moisture
  • Pulling power to drag your vehicle out!
  • Dual remote modes; wired and wireless function!



Why choose Dyneema® SK-75 synthetic rope over steel cable?

  • Over 1.5X stronger
  • Less than 15% of the weight of steel
  • At least 7X stronger when comparing weight to weight
  • It floats in water
  • The UHMwPE (Ultra-High Molecular weight Polyethylene) fibres are stronger than steel with high abrasion and friction-resistance.
  • Should the rope break during recovery, synthetic is much safer. Unless a steel cable is dampened, the build-up of force will inevitably spring back on breaking. Whereas, the "very low" stretch properties of Dyneema® SK-75 means it will just fall rather than spring back. Synthetic rope can be respliced and recovery can continue, which is impossible with steel.
  • It reduces the weight of your vehicle's front-end by at least 10KG



Why choose genuine Dyneema® SK-75 Syntethic Rope over any other brand?

  • Manufactured by DSM in the Netherlands, it is the most reliable, safest and longest-lasting rope available
  • It's "high-modulus" synthetic fibres are scientifically engineered to overcome the 4 major challenges of winch rope; Abrasion, Bending Fatigue, Compression, Creep Fatigue:
    • ​Abrasion: Running through a fairlead causes abrasion and degrades the fibres. Over a period of time, the fibres will eventually break. A rope made with Dyneema® SK-75 fibres has over 4X longer abrasion lifetime compared to a rope made with generic HMPE and far more than polyester
    • Bending fatigue happens each time a rope is flexed under tension. The fibres of a rope will stress when running through a fairlead. With Dyneema rope, bending causes less damage and the number of cycles before failure is far greater than steel or any other synthetic fibre.
    • Compression Fatigue happens when a rope becomes slack and the fibres actually compress. The molecular properties engineered into Dyneema® SK-75 prevent compression fatigue.  Ropes with Dyneema are not affected by compression fatigue.
    • Creep Fatigue - all synthetic ropes will elongate under load and over time at higher temperatures. When combined with abrasion, creep fatigue leads to failure and breakage. Dyneema® SK-75 has 2-4X longer creep lifetime than generic HMPE.
  • Dyneema is the worlds strongest fibre and the most trusted and safest brand for towing ropes. "Feel secure only with Dyneema".




PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received.


Specifications


SPECIFICATIONS:


Rated Line Pull:  12000LBS (5443KG)
Motor:  6.6 HP Series Wound (12V), IP68 Rated
Clutch (free spooling):  Sliding Ring Gear
Colour & Finish:  Black, Powder Coated

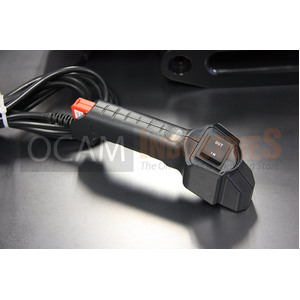

Remote Control:  Handheld 3.8M Length + Wireless Function

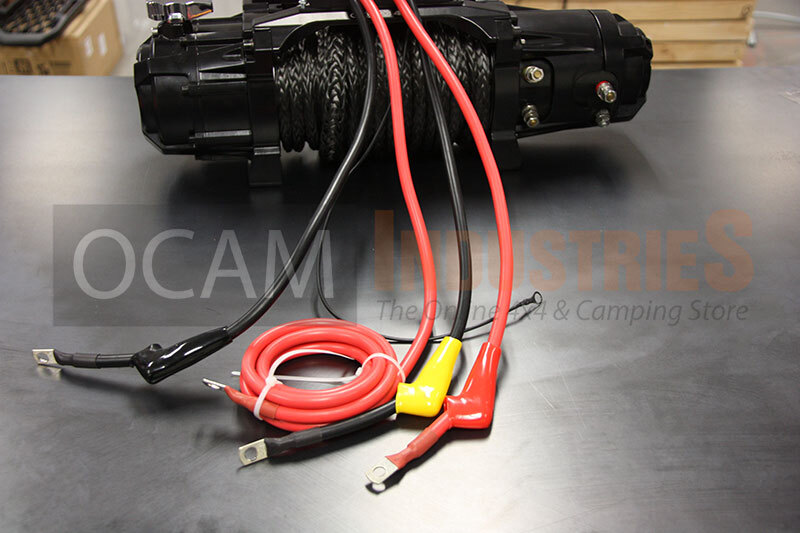

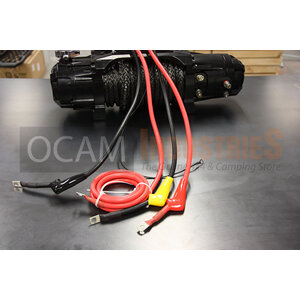

Battery Leads:  2 x 1.8M Heavy-Duty Leads
Gear Train:  3-Stage Planetary
Gear Reduction Ratio:  216:1
Braking Action:  Automatic (In The Drum)
Drum Size: Diameter 63.5mm (2.5"), Length 244mm (8.8")
Synthetic Rope:  Dyneema® SK-75, 9.5mm x 26M, Dark Grey

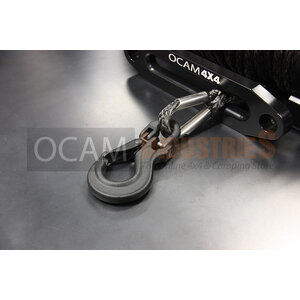

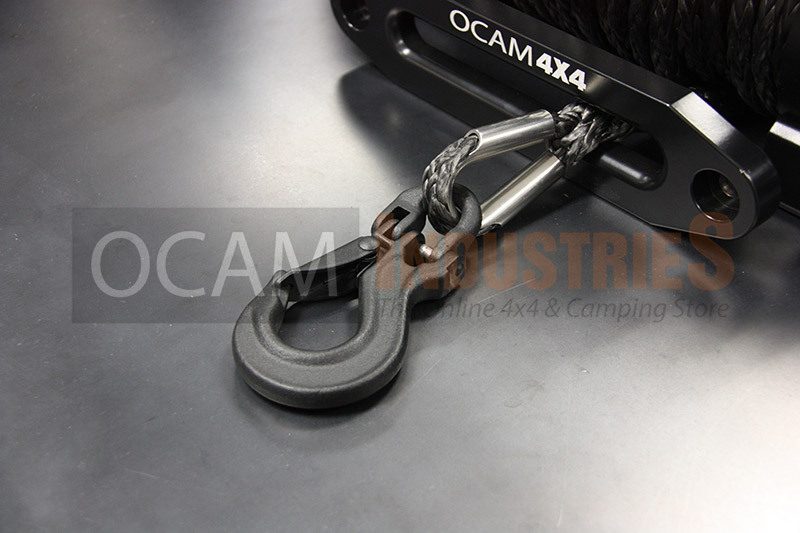

Hook:  8/10" Black Powder Coated

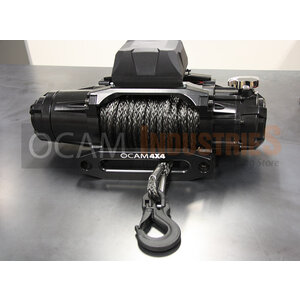

Fairlead:  Hawse Black Aluminium
Overall Dimensions:  540 x 160 x 218mm (21.3x6.3x6.6")
Mounting Bolt Pattern:  254 x 114.3mm (10x4.5")
Net Weight:  27KG
Gross Weight:  28.5KG (Includes Packaging)
Vehicle Battery Requirement:  650CCA Minimum Recommended For Winching
Warranty:  4 Years



Line Pull (LBS/KGS)

Line Speed M/MIN (F/PM)

Motor (AMPS)

0 6.8 (22.3) 74
3000 (1361) 3.1 (10.2) 150
6000 (2720) 2.68 (8.8) 240
9000 (4083) 1.89 (6.2) 260
12000 (5443) 1.46 (4.8) 350



Layer

Rated Line Pull (LBS/KGS)

Total Rope On Drum (M/FT)

1 12000 (5443) 5.4 (16.25)
2 9522 (4328) 11.2 (36.7)
3 7892 (3587) 18.8 (61.5)
4 6738 (3063) 28 (91.8)



KEY SPECIFICATIONS
SKU EWR-OCAM-12000
Brand OCAM
Shipping Weight 28.500000kg
Shipping Width 0.630m
Shipping Height 0.260m
Shipping Length 0.360m
Shipping Cubic 0.058968000m3
PACKAGE CONTENT



  • 1 x 12000LBS Electric Winch With Dyneema Rope

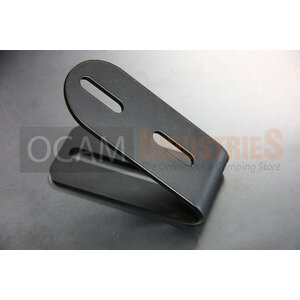

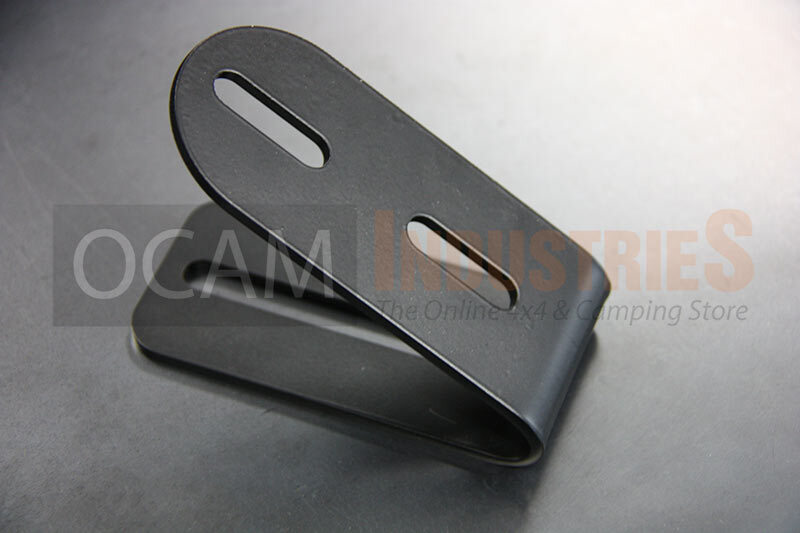

  • 1 x Control Box + Bracket

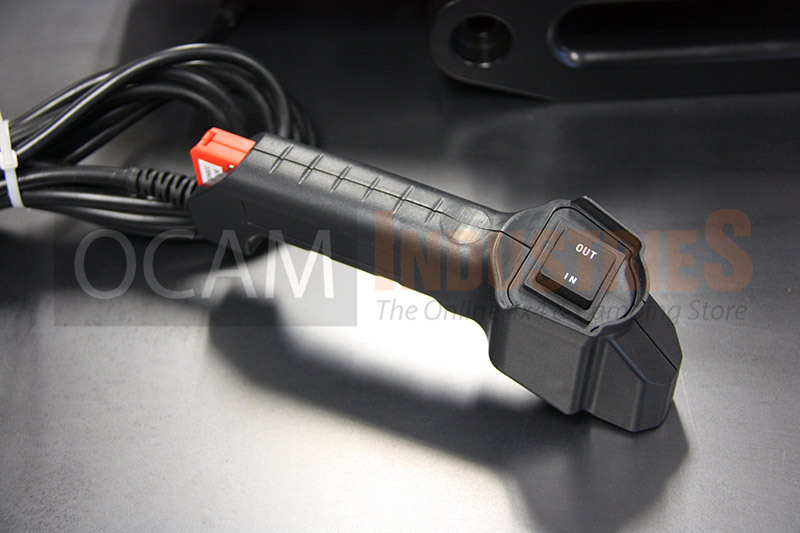

  • 1 x Wired Handheld Remote

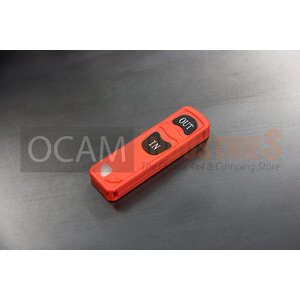

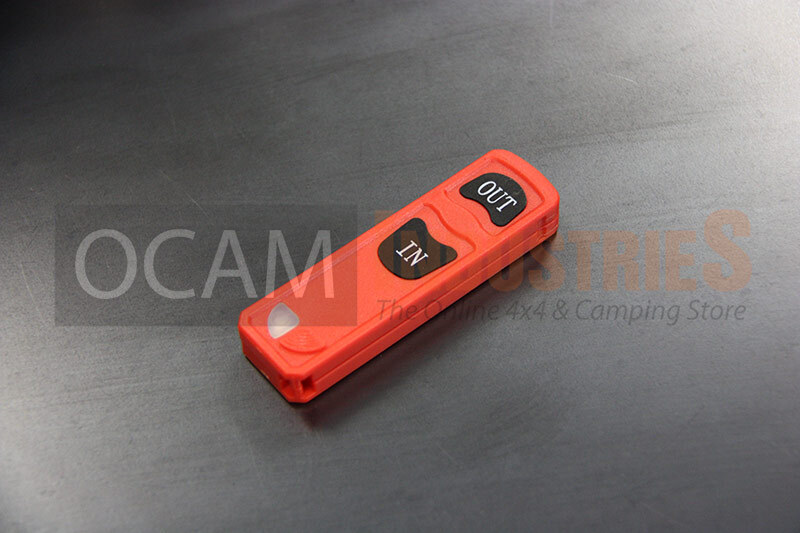

  • 1 x Wireless Remote with LED
  • 1 Set Accessories
  • 1 x User Manual
