SKU: UHF3904WP
RRP $429.00
Amazing bundle that will save you money!

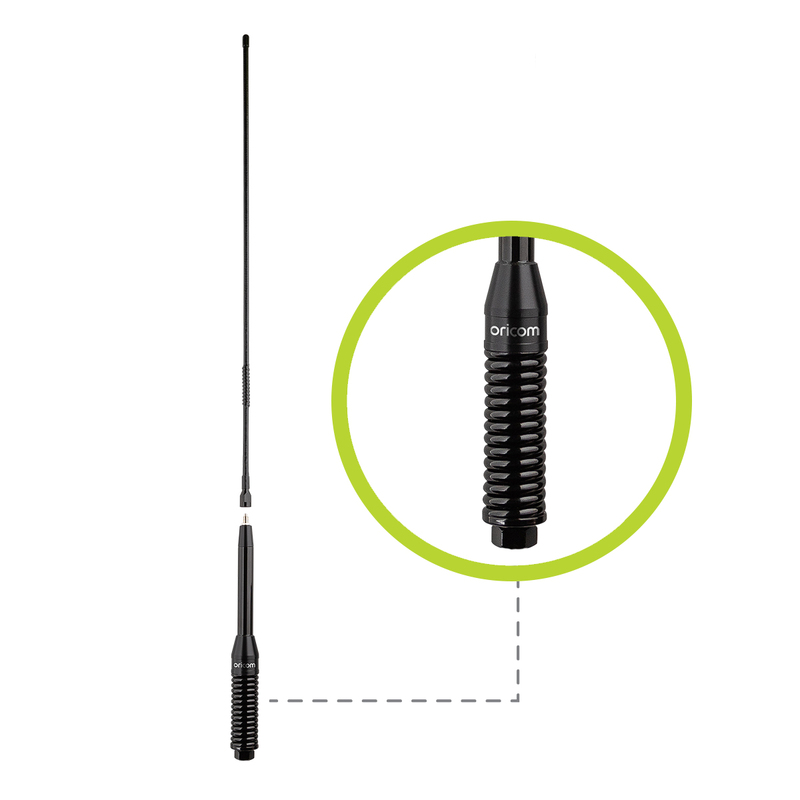

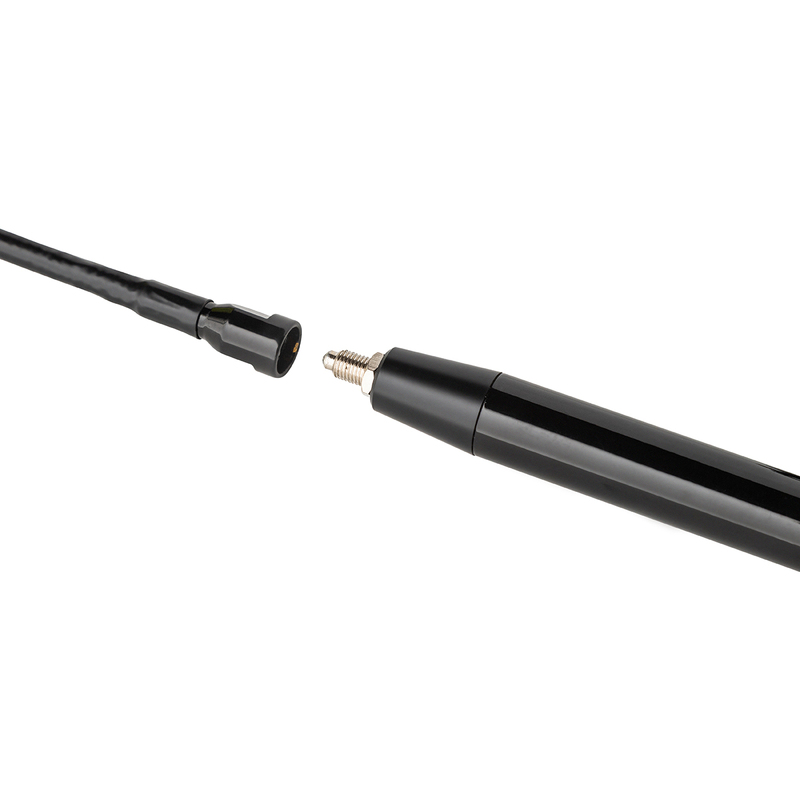

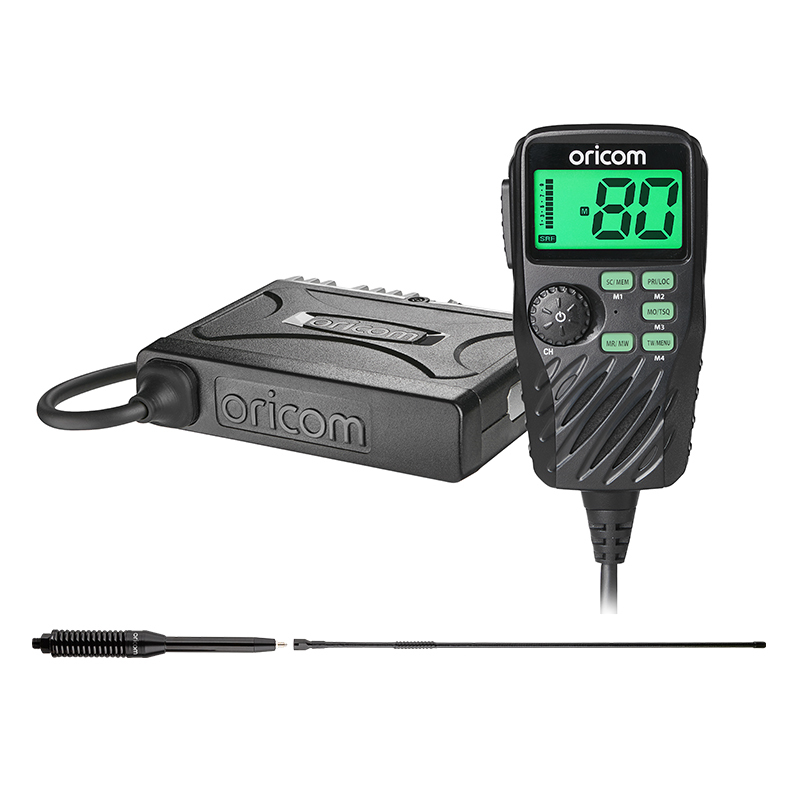

This pack includes a 5 Watt UHF CB Radio with Controller Speaker Microphone (UHF390), plus the addition of a Black 6.5dBi ground independent UHF CB Antenna with elevated feed, heavy-duty parallel spring base and fibreglass whip (ANU240).

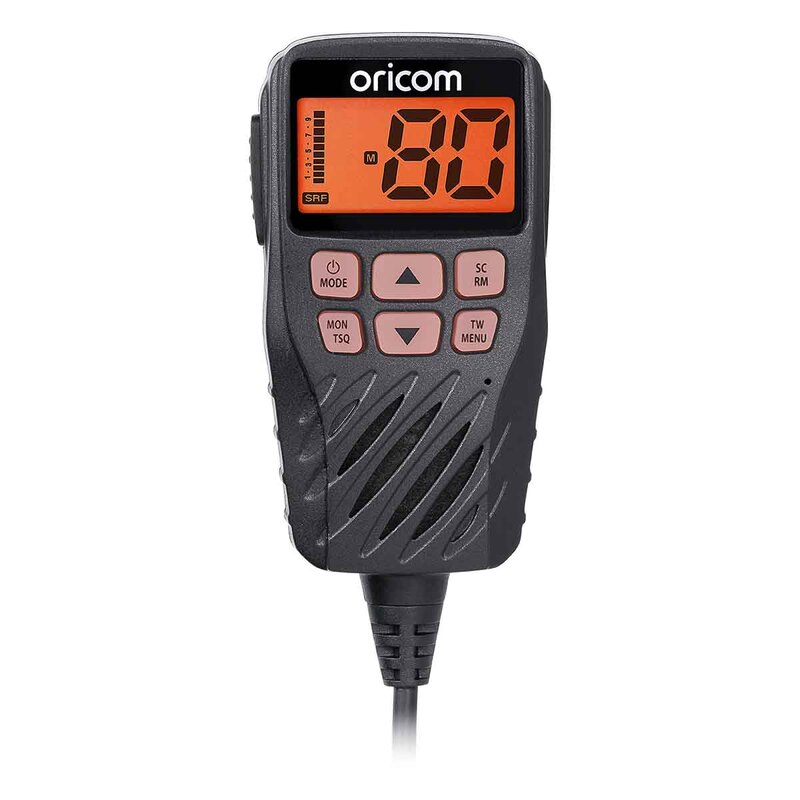

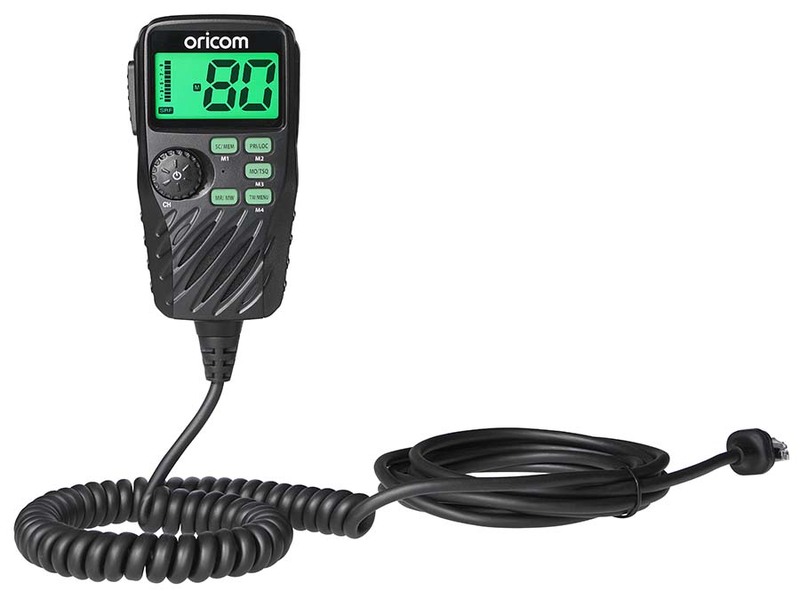

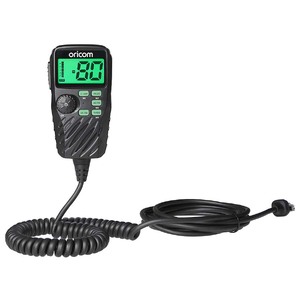

The UHF390 removes the need for a head unit, with all of the radio’s controls in the microphone.
The integrated speaker in the controller mic works with the transceiver speaker to deliver exceptional sound quality and volume.
Perfect for modern vehicles where space is limited.
Standout features include:
Notes:
| GENERAL | DTX4200 |
| Compliance | AS/NZS 4365:2011 |
| Frequency Range TX/RX | 476.425 - 477.4125 MHz |
| Number of TX/RX Channels | 80 UHF CB Channels (75 voice) |
| Channel Spacing TX/RX | 12.5KHz |
| Operating modes | Simplex, Repeater TX offset (+750KHz) |
| Scanning Speed | 50 msec per channel |
| Antenna Impedance | 50 Ohms |
| Operating Volts nominal | 13.8VDC to 28VDC |
| Operating Volts Range | 10 to 30VDC |
| Over Voltage Protection | Diode and Voltage regulator system |
| Over Current Protection | 2 AMP fuse |
| Reverse Polarity Protection | Shunt diode |
| Frequency stability | +/- 5 ppm |
| TRANSMITTER | |
| RF Output Power | 5 watts max |
| Modulation | F3E(FM) |
| Maximum deviation | 2.5KHz |
| Spurious Emissions | < -30dBm |
| TX Audio pre-emphasis | +6dB/Octave from 300Hz to 3KHz |
| Current consumption during TX | 1.7 AMP with 50 ohm antenna termination |
| RECEIVER | |
| Circuit Type | Dual conversion super heterodyne |
| Intermediate Frequencies | 1st IF: 21.4MHz, 2nd IF: 450KHz for Main RX |
| Maximum usable sensitivity | - 123dBm for 12dB SINAD (receiver sensitivity) |
| Audio output power | > 2 Watts at 8 ohm load |
| RX Audio de-emphasis | +6dB/Octave from 300Hz to 3KHz |
| Signal to Noise Ratio | > 40dB |
| Conducted Spurious Emission | > -57dBm |
| MECHANICAL | |
| Dimensions (H) X (W) X (D) | 31 x 128 x 147 |
| Weight | 548g transceiver / 200g controller speaker mic |
| SKU | UHF3904WP |
| Brand | Oricom |
| Shipping Weight | 0.600000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.070m |
| Shipping Length | 0.330m |
| Shipping Cubic | 0.004389000m3 |
