Tough Dog Lift Kit for Mazda BT-50 09/2020+

Tough Dog Lift Kit for Mazda BT-50 09/2020+

SKU: SUSP-BT50-21-LKIT

$2,261.00
Description




Tough Dog Lift Kit for Mazda BT-50 09/2020 Onwards


Front: 40mm lift
Rear: 40mm lift

Use the drop-down menu options on this webpage to choose the right lift kit for your needs.  Based on your selections, our website will match the components according to both the weight you'll be constantly carrying and the intended use of your vehicle.

Choose from pick-up or delivery at checkout.  Please contact our customer service team if you need any advice and/or to arrange a fitting.

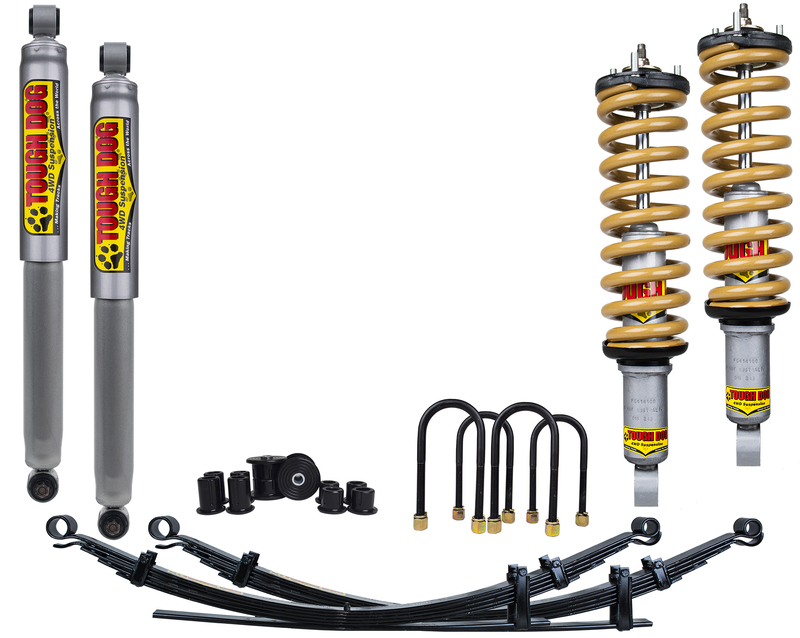

This kit includes:


  • Front:
    • Shock absorbers x 2
    • Coil springs x 2

​(Use the menu option to choose from 1. Complete strut assembly or 2. Unassembled)

  • Rear:
    • Shock absorbers x 2
    • Leaf springs x 2
    • U-bolts x 2
    • Shackle bushes x 1
    • Greasable Pins/GREASABLE PINS REAR TDGP-668 x 1
    • Greasable Shackles/GREASABLE SHACKLES REAR TDGS-902 x 1



40mm Bore Foam Cell Adjustable



4WDs and 4WDrivers have different characteristics and driving styles. This is why the 40mm adjustable shock absorber is a popular choice. It gives you the ability to adjust your settings to suit the drive you want.

With 9 different stages of adjustment, the Tough Dog 40mm shock absorber gives you options to tune the ride according to your personal preference and purpose.

Equipped with market-leading Foam Cell technology, this shock absorber minimises aeration and cavitation to maximise the shock's ability to resist fade, and always perform reliably, even in the harshest conditions.

Tough Dog adjustable shocks are built tough for the tough Aussie outback.  Its ABS plastic dust shield serves as an external dust wiper seal and protects the shock absorber's insides from grit, which otherwise can lead to damage to the oil seals around the chrome rod.

When fully extended, the shock is at its most vulnerable to damage from side load. The internal bump stop and piston rod guide ensure the shock is supported at the extremes of its travel.



41mm Bore Foam Cell


For all-round performance, you can't go past Tough Dog's award-winning Foam Cell shock absorbers. They're outstanding equipment on and off-road, no matter how often you're traveling.

This shock absorber contains a micro-cellular foam insert which causes a substantial reduction in shock fade. This means you get longer-wearing and higher-performing shock absorbers.

The main reason for the 41mm foam cell's unparalleled resistance to shock fade is its ability to eliminate the bubbles that form, i.e., cavitation and aeration. When a shock absorber is pushed to perform, the oil and gas in the outer chamber start to mix and form bubbles. When this happens, the viscosity of the oil is reduced and as the oil passes through the valve, the resistance is reduced and the shock absorber begins to underperform. The 41mm Foam Cell insert, with its trapped gas microcells, takes up that empty space and protects the shock absorber.

Tough Dog suspension products provide the ability to create a tailored suspension package that can transform your vehicle, regardless of how you use it. Tough Dog has developed a product to suit just about every possible application. In most vehicles, we offer multiple shock and spring options to fine-tune every aspect of a particular package as well as a range of other specialised and optional accessories.


PICK UP & PHONE ENQUIRIES WELCOME



Despatched within 24hrs of payment being received



Specifications
KEY SPECIFICATIONS
SKU SUSP-BT50-21-LKIT
Brand Tough Dog
Shipping Weight 40.000000kg
Shipping Width 1.000m
Shipping Height 0.300m
Shipping Length 1.000m
Shipping Cubic 0.300000000m3
PACKAGE CONTENT



  • Front:
    • Shock absorbers x 2
    • Coil springs x 2

​(Use the menu option to choose from 1. Complete strut assembly or 2. Unassembled)

  • Rear:
    • Shock absorbers x 2
    • Leaf springs x 2
    • U-bolts x 2
    • Shackle bushes x 1
    • Greasable Pins/GREASABLE PINS REAR TDGP-668 x 1
    • Greasable Shackles/GREASABLE SHACKLES REAR TDGS-902 x 1
