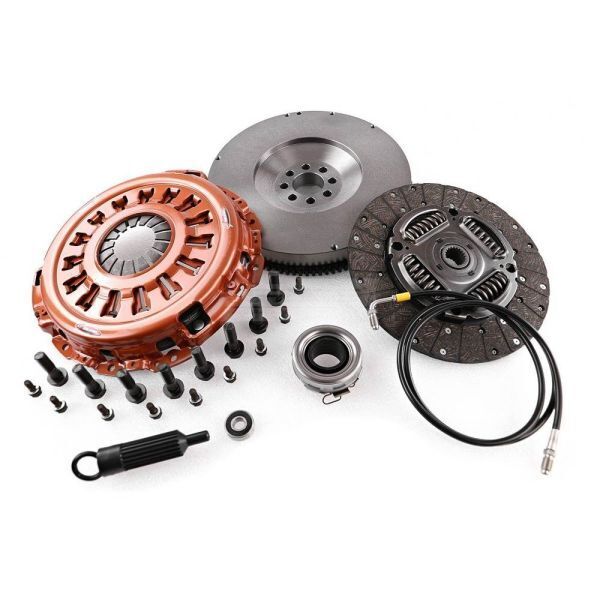

Xtreme Outback Extra HD Clutch Kit for Toyota Hilux N70 / N80 2005-Current, With Flywheel, KTY28590-1AX

Xtreme Outback Extra HD Clutch Kit for Toyota Hilux N70 / N80 2005-Current, With Flywheel, KTY28590-1AX

SKU: KTY28590-1AX

RRP $1,883.71

NOW $1,328.10

Was $1,398.00

Sale Ends in
23:59 pm, 25 December 2024
Description

Xtreme Outback Extra HD Clutch Kit for Toyota Hilux 2005-Current, GUN126, KUN26, Sprung Organic, With Flywheel, KTY28590-1AX



RECOMMENDED FOR TUNED VEHICLES WITH:

  • SIGNIFICANT PERFORMANCE MODIFICATIONS
  • HIGH-PERFORMANCE TUNING
  • STREET AND OFF-ROAD USE
  • TOWING HEAVY LOADS



Are you planning to upgrade your Hilux with after-market tuning and performance modifications?  If so, it'll require an extra heavy-duty clutch.

The Xtreme Outback Extra Heavy-Duty Clutch Kit will give you maximum performance on and off-road.  With an increase in clamping force of 45% above the standard factory clutch, this clutch kit upgrade will significantly improve driveability.

  • Torque (Nm / ftlbs) Inc FOS: 610 / 450
  • Clutch Disk Diameter 275mm
  • Sprung Organic Friction Disk
  • Thrust Bearing Included
  • Spigot Bush/Bearing Included
  • Aligning Tool Included
  • Spline Grease Included
  • Includes Master to Slave Cylinder Clutch Line
  • Flywheel Included, Single Mass-Multi-Fit Conversion



Why choose Xtreme Outback heavy-duty clutches over the competition:

  • The pressure plate is based on an OEM design
  • It comes with an OE design clutch plate, so there is no issue with gearbox rollover noise. Most competitor's products are an aftermarket clutch plate - not OE design.


Xtreme Outback is the market leader in 4x4 performance clutch. It is the 4x4 & SUV division of Australian Clutch Services, which engineers and designs products to increase clamping force whilst retaining excellent pedal feel and improve driveability. The Xtreme Outback clutch designs withstand the toughest terrains and are being used right around the world.

All products are researched and developed in Australia. The company’s ongoing analysis of friction materials and spring rates produce an optimal combination of performance, noise suppression, and durability. Xtreme Outback is the most trusted name in 4x4 clutch.






PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received.



Specifications



Flywheel Step (mm)

Flat

Clutch Disc Diameter (mm)

275mm

Clutch Disc Spline Count

21

Clutch Disc Spline Diameter (mm)

29.0mm

Disc Type

Sprung

Friction Material

Organic

Stage

1

Recommended Use

Street / Towing / Offroad

Clamping Force % Increase

45%

Torque (Nm / ftlbs) Inc FOS

610 / 450

Spigot Bush/Bearing Included

Yes

Aligning Tool Included

Yes

Flywheel Included Single Mass-Multi-Fit Conversion
Flywheel Bolts Included Yes
Pressure Plate Bolts Included Yes

Spline Grease Included

Yes

Note

Includes Master to Slave Cylinder Clutch Line

Weight

34.5 Kg

KEY SPECIFICATIONS
SKU KTY28590-1AX
Brand Xtreme Outback
Shipping Weight 34.500000kg
Shipping Width 0.520m
Shipping Height 0.170m
Shipping Length 0.500m
Shipping Cubic 0.044200000m3
Unit Of Measure ea
PACKAGE CONTENT
