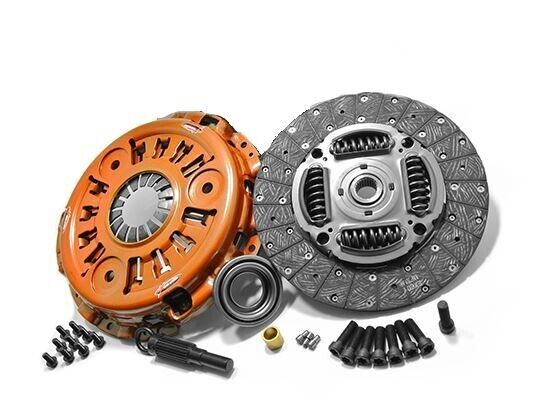

Xtreme Outback Heavy Duty Clutch Kit for Toyota Landcruiser HZJ 4.2L, KTY28013-1A

Xtreme Outback Heavy Duty Clutch Kit for Toyota Landcruiser HZJ 4.2L, KTY28013-1A

SKU: KTY28013-1A

RRP $581.02

NOW $464.55

Was $489.00

Sale Ends in
23:59 pm, 25 December 2024
Description


Xtreme Outback Heavy Duty Clutch Kit for Toyota Landcruiser HZJ 4.2L, Sprung Organic, KTY28013-1A



RECOMMENDED FOR VEHICLES WITH:

  • MINOR PERFORMANCE MODIFICATIONS
  • STREET AND OFF-ROAD USE
  • TOWING HEAVY LOADS

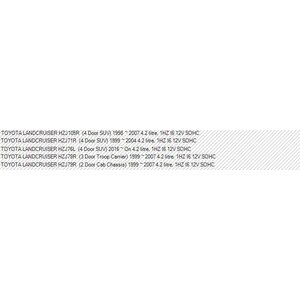

Suits:

  • HZJ105R, (4-Door SUV) 1998-2007, 4.2L, 1HZ 16 12V SOHC
  • HZJ71R, (4-Door SUV) 1994-2004, 4.2L, 1HZ 16 12V SOHC
  • HZJ76L, (4-Door SUV) 2016-On, 4.2L, 1HZ 16 12V SOHC
  • HZJ78R, (3-Door Troop Carrier) 1999-2007, 4.2L, 1HZ 16 12V SOHC
  • HZJ79R (2-Door Cab Chassis) 1999-2007, 4.2L, 1HZ 16 12V SOHC



The Xtreme Outback Heavy-Duty Clutch Kit will improve your vehicle's performance on and off-road.  With an increase in clamping force of 40% above the standard factory clutch, this clutch kit upgrade will significantly improve driveability.

  • Torque (Nm / ftlbs) Inc FOS: 470 / 350
  • Sprung Organic Friction Disk
  • Thrust Bearing Included
  • Spigot Bush/Bearing Included
  • Aligning Tool Included
  • Spline Grease Included



Why choose Xtreme Outback heavy-duty clutches over the competition:

  • The pressure plate is based on an OEM design. Most competitor's products aren't, which is why they need to supply a flywheel. (The Xtreme Outback heavy-duty clutch only requires you to machine the factory flywheel. It is not necessary to purchase a flywheel unless your factory equipment is damaged).
  • It comes with an OE design clutch plate, so there is no issue with gearbox rollover noise. Most competitor's products are an aftermarket clutch plate - not OE design.


Xtreme Outback is the market leader in 4x4 performance clutch. It is the 4x4 & SUV division of Australian Clutch Services, which engineers and designs products to increase clamping force whilst retaining excellent pedal feel and improve driveability. The Xtreme Outback clutch designs withstand the toughest terrains and are being used right around the world.

All products are researched and developed in Australia. The company’s ongoing analysis of friction materials and spring rates produce an optimal combination of performance, noise suppression, and durability. Xtreme Outback is the most trusted name in 4x4 clutch.





PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received.



Specifications



Flywheel Step (mm)

+0.5mm

Clutch Disc Diameter (mm)

275mm

Clutch Disc Spline Count

21

Clutch Disc Spline Diameter (mm)

29.8mm

Disc Type

Sprung

Friction Material

Organic

Stage

1

Recommended Use

Street / Towing / Offroad

Clamping Force % Increase

40%

Torque (Nm / ftlbs) Inc FOS

470 / 350

Spigot Bush/Bearing Included

Yes

Aligning Tool Included

Yes

Spline Grease Included

Yes

Weight

12.405 Kg

KEY SPECIFICATIONS
SKU KTY28013-1A
Brand Xtreme Outback
Shipping Weight 12.41kg
Shipping Width 0.370m
Shipping Height 0.100m
Shipping Length 0.390m
Shipping Cubic 0.014430000m3
Unit Of Measure ea
PACKAGE CONTENT
